OEP PCB Mounted Audio Matching Transformer 300Hz
This range of 100 mW 300 Hz audio transformers from OEP feature electrostatic screening and are suitable for PCB mounting. They are ideal for use in low-power outputs and can be used for both microphone inputs and line inputs.
A mumetal screening can is available for these audio transformers. See 210-6469
A mumetal screening can is available for these audio transformers. See 210-6469

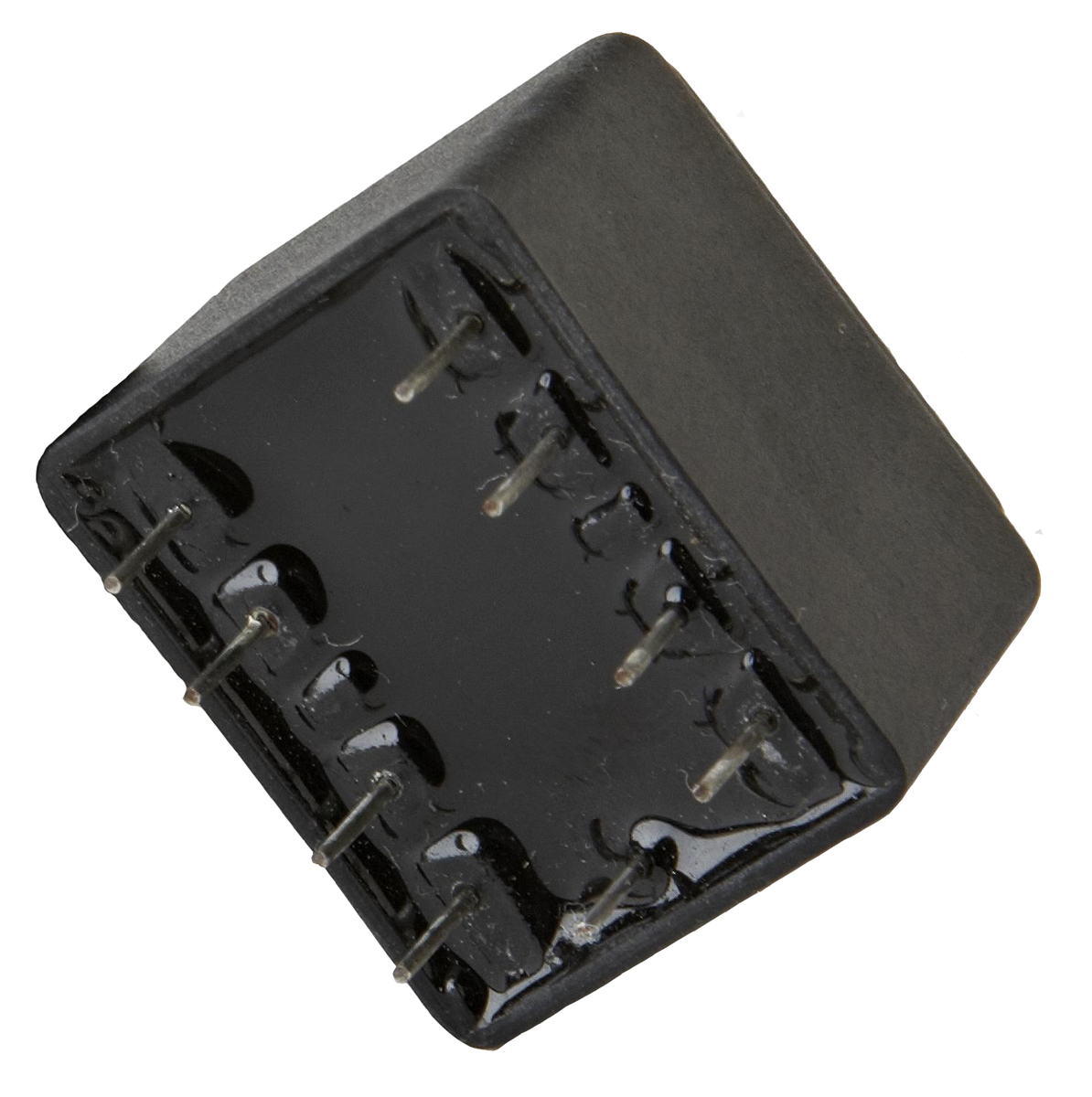

OEP A262A45E/1 Through Hole Audio Transformer 5 kΩ, 20 kΩ 100mW
Manufacturer:
OEP
Manufacturer Part No:
A262A45E/1
Enrgtech Part No:
ET16805508
Warranty:
Manufacturer
£ 36.37
Checking for live stock
Primary Impedance:
200 Ω, 800 Ω
Secondary Impedance:
5 kΩ, 20 kΩ
Primary DC Resistance:
24Ω
Power Rating:
100mW
Secondary DC Resistance:
1.076Ω
Dimensions:
27.94 x 22.9 x 22.2mm
Mounting Type:
Through Hole
Termination Type:
PC Pin
Weight:
40g
Depth:
22.2mm
Length:
27.94mm
Width:
22.9mm
