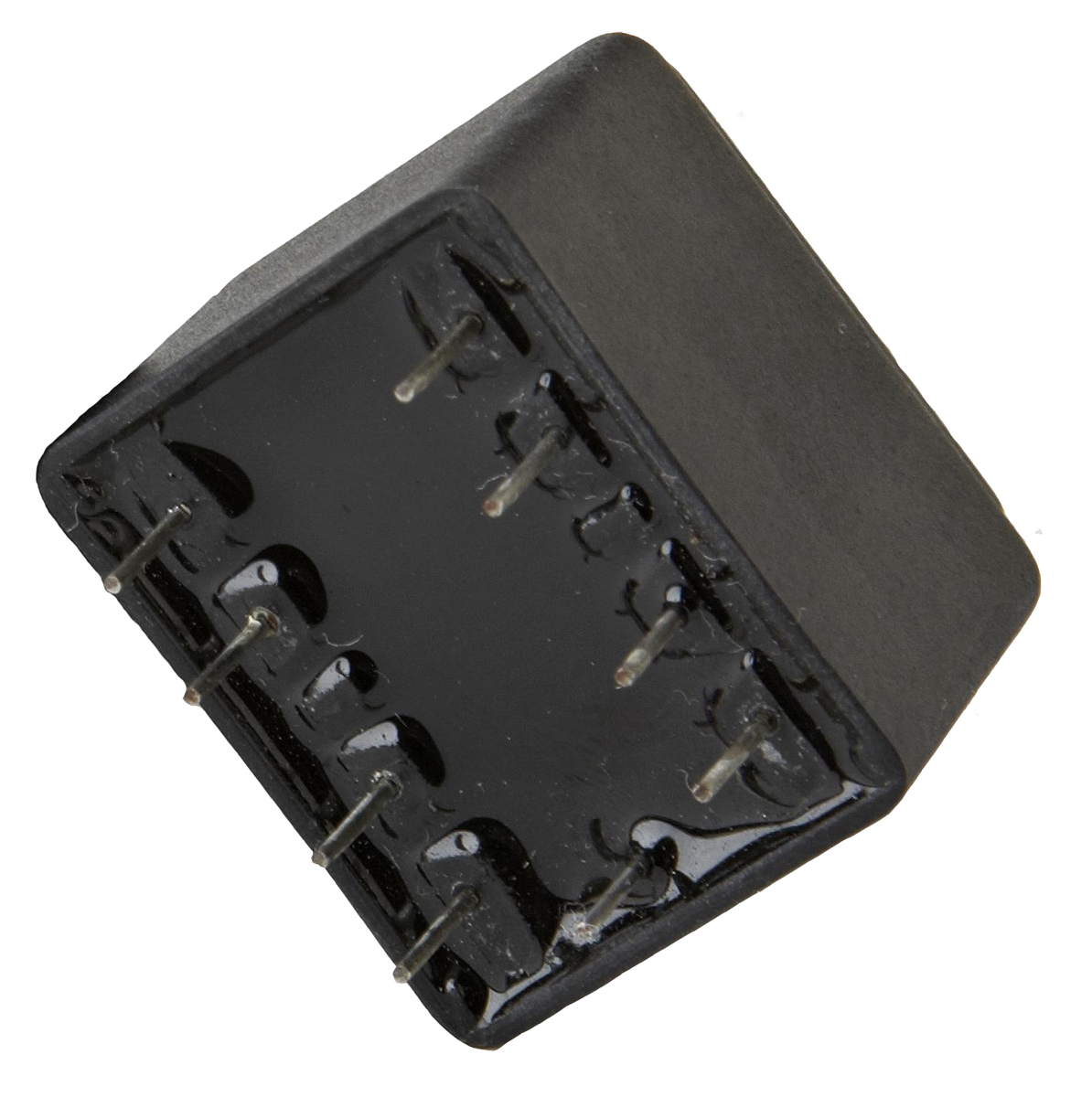

OEP A262A48E Through Hole Audio Transformer 1.25 kΩ, 5 kΩ 100mW

Primary Impedance:

150 Ω, 600 Ω

Secondary Impedance:

1.25 kΩ, 5 kΩ

Primary DC Resistance:

20.6Ω

Power Rating:

100mW

Secondary DC Resistance:

220Ω

Dimensions:

27.94 x 22.9 x 22.2mm

Mounting Type:

Through Hole

Termination Type:

PC Pin

Weight:

40g

Depth:

22.2mm

Length:

27.94mm

Width:

22.9mm

Construction:

Enclosed

Minimum Operating Frequency:

30Hz

Turns Ratio:

1 + 1:2.89 + 2.89

Minimum Temperature:

-25°C

Core Type:

Laminated

Isolation Voltage:

1000V

Maximum Temperature:

+70°C

Maximum Operating Frequency:

30kHz
