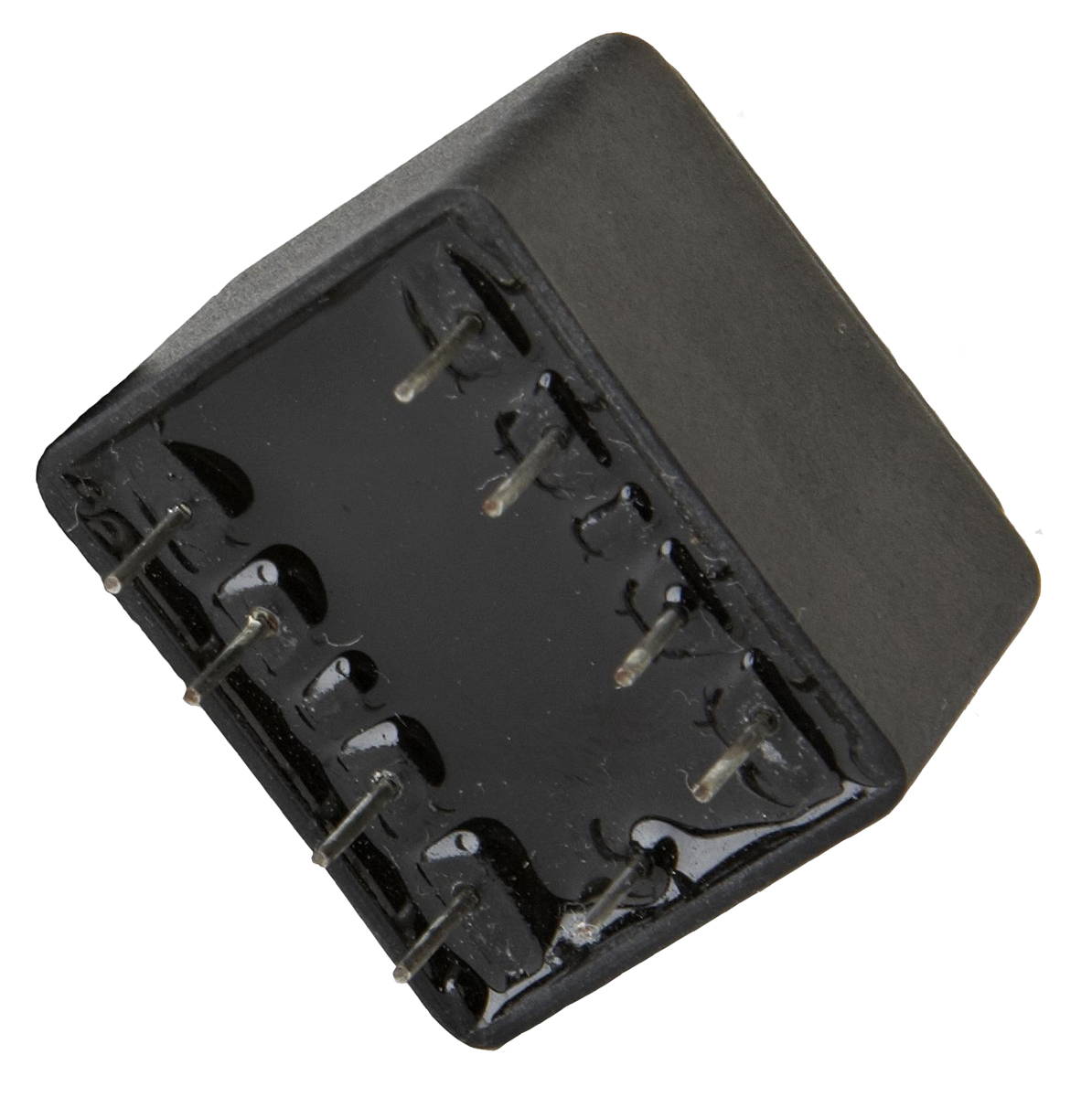

OEP A262A47E Through Hole Audio Transformer 2.5 kΩ, 10 kΩ 100mW

Primary Impedance:

150 Ω, 600 Ω

Secondary Impedance:

2.5 kΩ, 10 kΩ

Primary DC Resistance:

20.6Ω

Power Rating:

100mW

Secondary DC Resistance:

474Ω

Dimensions:

27.94 x 22.9 x 22.2mm

Mounting Type:

Through Hole

Termination Type:

PC Pin

Weight:

40g

Depth:

22.2mm

Length:

27.94mm

Width:

22.9mm

Maximum Operating Frequency:

20kHz

Core Type:

Laminated

Turns Ratio:

1+1:4+4

Minimum Temperature:

-25°C

Isolation Voltage:

1000V

Construction:

Enclosed

Maximum Temperature:

+70°C

Minimum Operating Frequency:

30Hz
