San Ace Low Power DC Fans - GA Series
San Ace GA series low power DC fans are a highly power efficient solution to a range of fan requirements. Featuring high air flow, high static pressure and low noise.
Low power high performance fans offering 15% to 38% energy saving over conventional fans
Improved impeller, guided vanes, reduced mass, reduced noise by between 2dB and 6dB
PWM control to further optimise power consumption and noise level (except 60 x 60 x10 mm frame size which have tachometer output only)
High static pressure and high airflow
Static pressure optimised at inflection point where fan operated for high impedance applications
30,000 to 60,000 hour life fans @ 60 Degree C
Permanently lubricated dual ball bearing system
Improved impeller, guided vanes, reduced mass, reduced noise by between 2dB and 6dB
PWM control to further optimise power consumption and noise level (except 60 x 60 x10 mm frame size which have tachometer output only)
High static pressure and high airflow
Static pressure optimised at inflection point where fan operated for high impedance applications
30,000 to 60,000 hour life fans @ 60 Degree C
Permanently lubricated dual ball bearing system

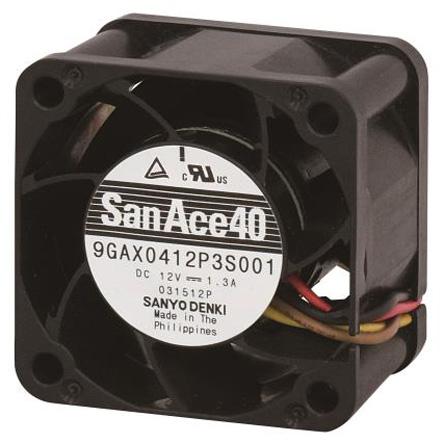

San Ace 9GAX Series Axial Fan, 12 V dc, DC Operation, 54m³/h, 15.6W, 1.3A Max, 40 x 40 x 28mm
Manufacturer:
Sanyo Denki
Manufacturer Part No:
9GAX0412P3S001
Enrgtech Part No:
ET16888823
Warranty:
Manufacturer
£ 21.29
Checking for live stock
Supply Voltage:
12 V dc
AC or DC Operation:
DC
Height:
40mm
Power Consumption:
15.6W
Width:
40mm
Maximum Current:
1.3A
Depth:
28mm
Termination Type:
Lead Wire
Air Flow:
54m³/h
Dimensions:
40 x 40 x 28mm
Noise Level:
64dB
Fan Speed:
25000rpm
