Sanyo Denki San Ace 9HV Series High pressure DC Fan
Sanyo Denki San Ace range of high pressure DC fans have been designed with high static applications in mind. Thanks to the higher static pressure, the 9HV series offers lower power consumption than other models. The San Ace range is ideal for applications with densely packed components.
Features and Benefits
High static pressure.
PWM speed control function.
60 mm & 80 mm square options available.
Features and Benefits
High static pressure.
PWM speed control function.
60 mm & 80 mm square options available.

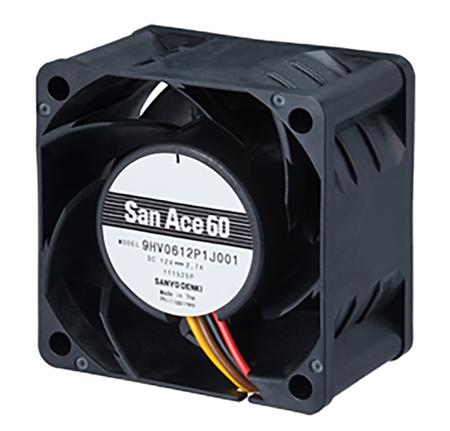

San Ace 9HV Series Axial Fan, 12 V dc, DC Operation, 112.8m³/h, 32.4W, 2.7A Max, 60 x 60 x 38mm
Manufacturer:
Sanyo Denki
Manufacturer Part No:
9HV0612P1J001
Enrgtech Part No:
ET16915289
Warranty:
Manufacturer
£ 39.30
Checking for live stock
Supply Voltage:
12 V dc
Height:
60mm
AC or DC Operation:
DC
Power Consumption:
32.4W
Width:
60mm
Maximum Current:
2.7A
Depth:
38mm
Termination Type:
Lead Wire
Air Flow:
112.8m³/h
Dimensions:
60 x 60 x 38mm
Noise Level:
68dB
Fan Speed:
21700rpm
