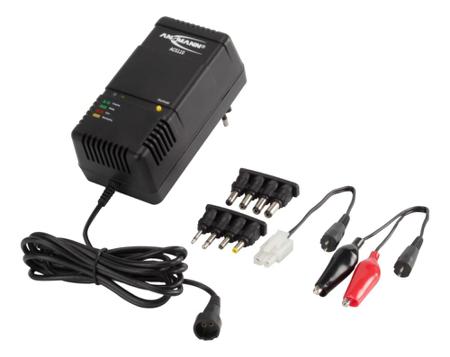

ACS110 Intelligent NiMH Charger The ACS110 Traveller charger from Ansmann is a reliable and intelligent companion for applications using NiMH or NiCd battery packs rather than individual cells. Suited to charing 1-10 series cells with 800mA charging current, this pack charger comes with a range of range of connector solutions to service a range of devices and batteries, including polarised connectors for Tamiya racing packs and crocodile clips.With intelligent charging protected by -dV, 0dV and safety timer, and with trickle charging to keep batteries topped up, the charger can be attached to compatible battery pack and applications and will charge without manual input.
The ACS110 also features a discharge function. Primarily aimed at NiCd batteries, where partial discharges can reduce the overall capacity and become detrimental to performance, a gentle discharge is applied to the attached battery pack by pressing the yellow button on the top casing. Features & Benefits Intelligent NiMH/NiCd Pack Charger for 1-10 series cells
Suitable for nominal 1.2 - 12V (end charge 1.45 - 14.5V)
800mA nominal charging current
Discharge function current: 150 - 200mA
Features -dV and 0dV charge termination plus 17hr safety timer
Automatic operation and cut-off with trickle charging and pre-charging
100-240V AC worldwide input voltage
Clear and simple LED indication Applications • Suitable for charging different NiMH and NiCd batteries
• Appropriate for mechanical tools that require rechargeable batteries
• Effective for home battery maintenance and replacement needs Will it function with different voltage systems? Yes, the charger is designed for worldwide use with an input voltage range of 100-240V AC and 50-60Hz frequency, making it compatible with power outlets globally. Is it portable for travel purposes? Yes, its lightweight construction enhances portability. How do I know when my battery pack is fully charged? When the battery pack is fully charged, the LED indicator will show a solid green light. During charging, it flashes green, and during discharging, it shows yellow.
