RS Insulated Twin Entry Bootlace Ferrules
Insulated twin entry wire end ferrules that provide termination for 2 or more wires. These insulated twin entry bootlace ferrules are made from copper tube with nylon insulation which is colour coded to indicate different wire sizes.
Tooling Guide
Stock no.
Tool Stock no.
Tool Orifice (mm²)
Stock no.
Tool Stock no.
Tool Orifice (mm²)
311-7971
453-331
0.75
311-7993
297-2935
6
184-9654
453-331
1.5
311-8003
297-2935
10
184-9660
453-331
2.5
311-8019
297-2935
14
311-8025
453-331
-
311-8025
-
-
184-9682
453-331
4
Approvals
-

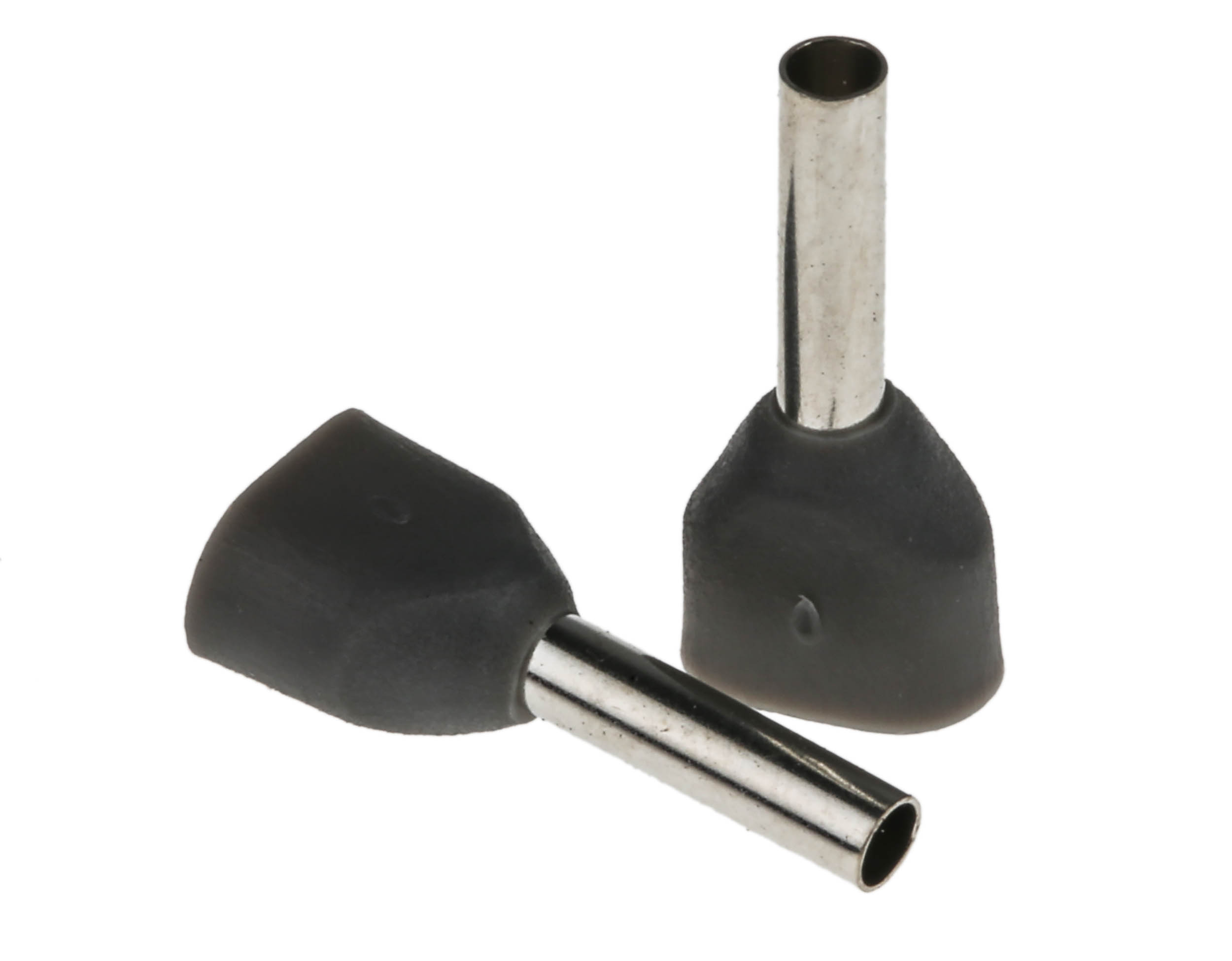

184-9654, Insulated Crimp Bootlace Ferrule, 8mm Pin Length, 1.8mm Pin Diameter, 2 x 0.75mm² Wire Size, Grey
£ 0.12
Checking for live stock
Pin Length:
8mm
Colour:
Grey
Number of Entries:
2
Insulation Material:
Nylon
Overall Length:
14.7mm
Insulation:
Insulated
Pin Diameter:
1.8mm
Maximum Wire Size AWG:
2 x 20AWG
Maximum Wire Size mm²:
2 x 0.75mm²
