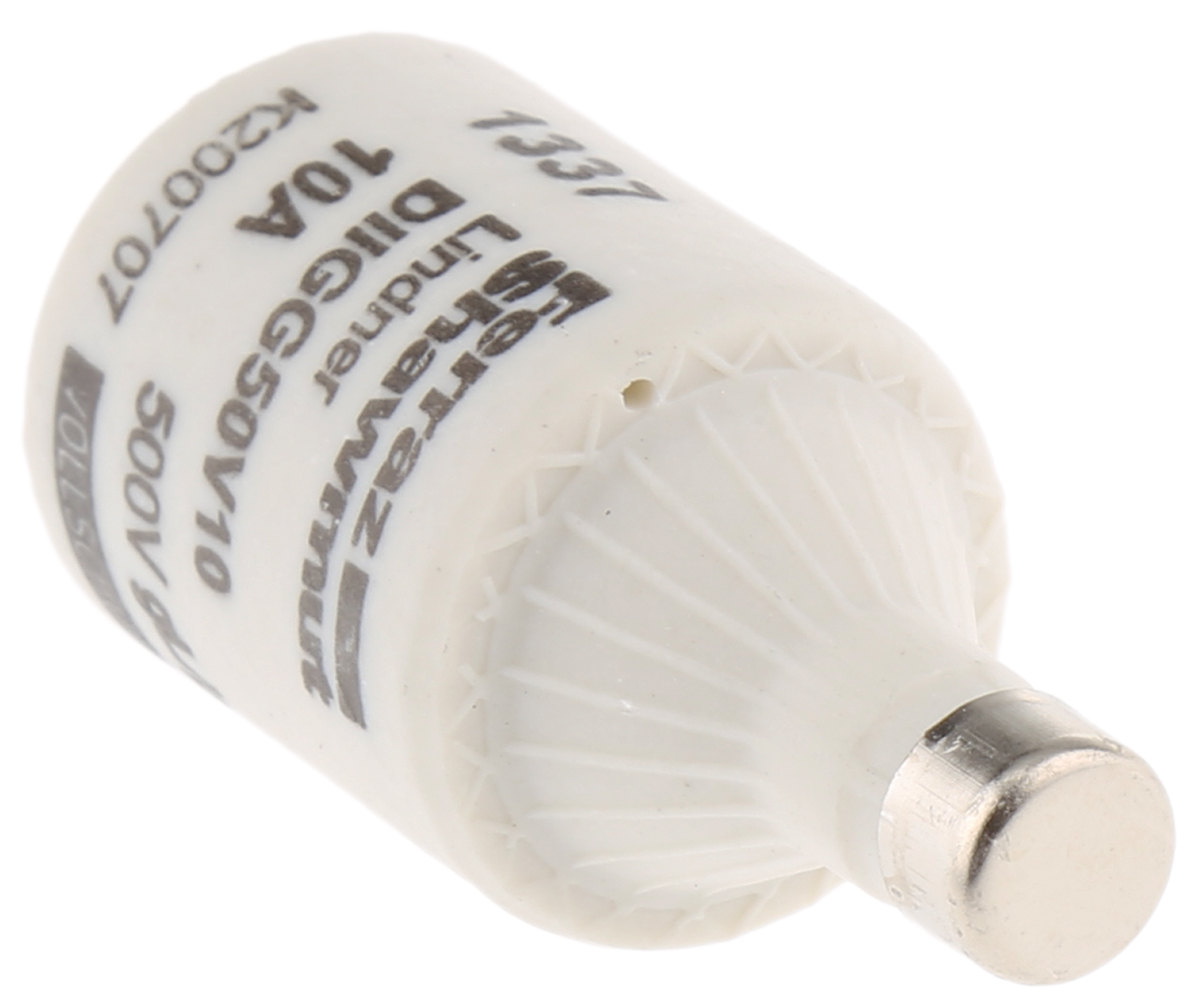

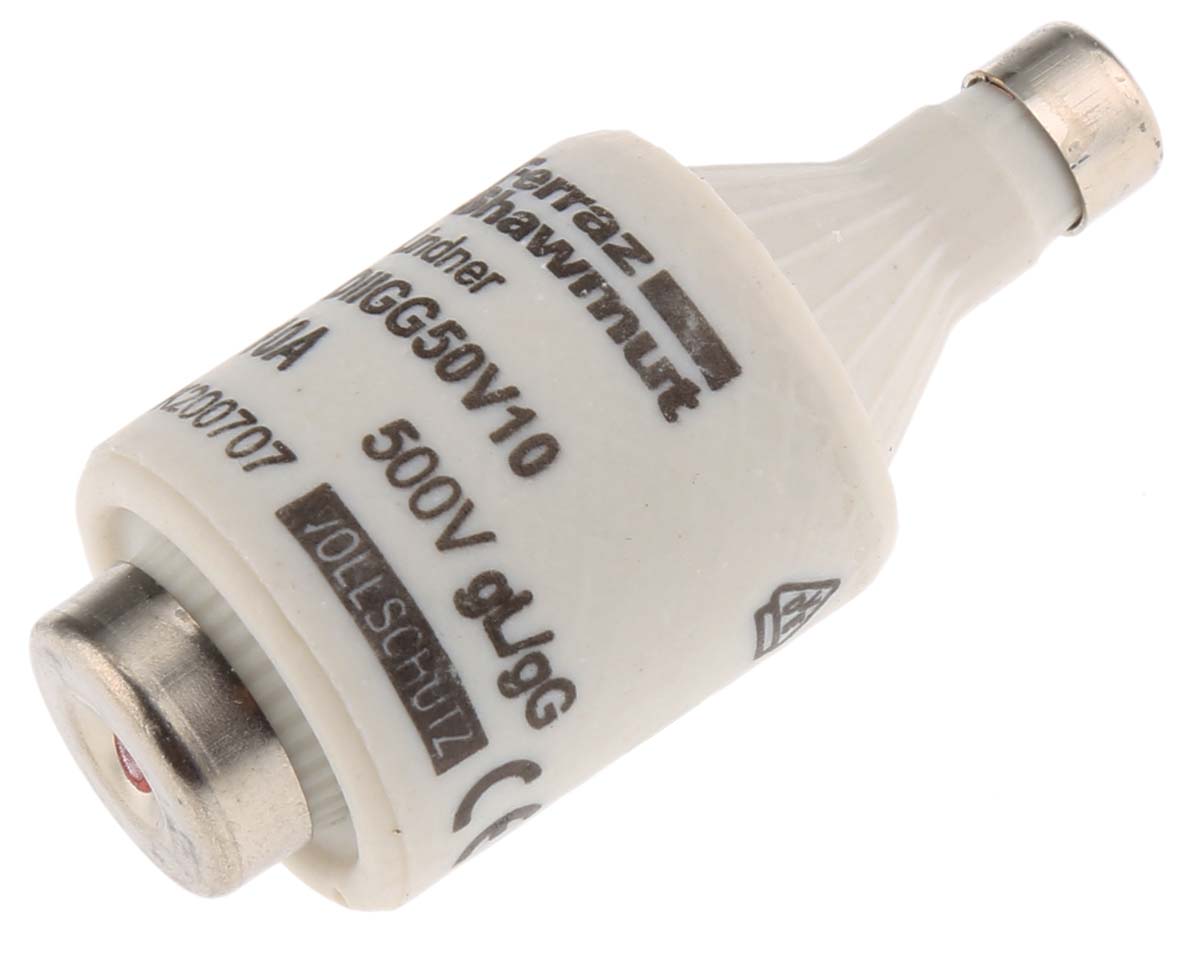

D-Fuse (DIAZED) Type gL/gG - Ferraz Shawmut Breaking Capacity 50kA at 500Vac Voltage rating 500Vac Low power loss Dimensions, all fuses 50mm in length DI Conductor DII Conductor DII Conductor 2A 13.2 and 6mm 2A 21.5 and 6mm 35A 27 and 16mm 4A 13.2 and 6mm 4A 21.5 and 6mm 50A 27 and 18mm 6A 13.2 and 6mm 6A 21.5 and 6mm 63A 27 and 20mm 10A 13.2 and 8mm 10A 21.5 and 8mm 16A 13.2 and 10mm 16A 21.5 and 10mm 20A 13.2 and 12mm 20A 21.5 and 12 mm 25A 13.2 and 14mm 25A 21.5 and 14 mm Standards IEC269; VDE0636; DIN49522 Approvals VDE 0636; DIN 49522
