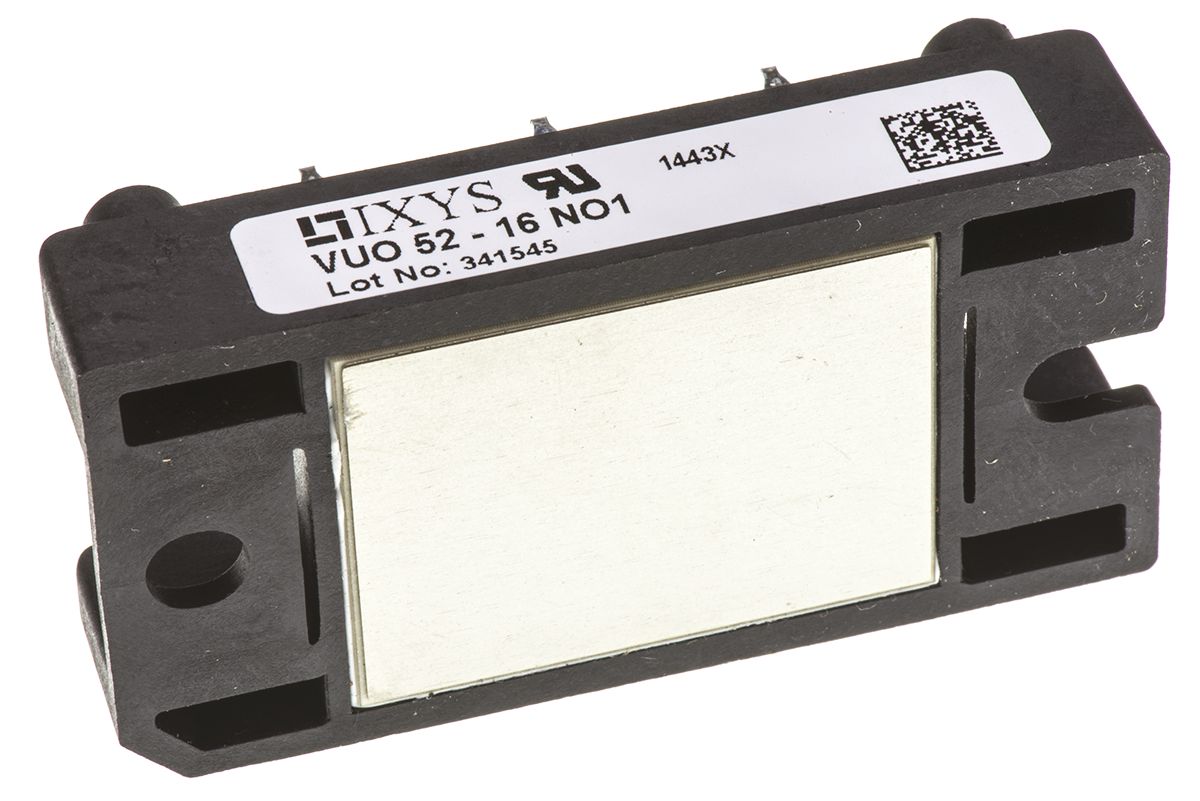

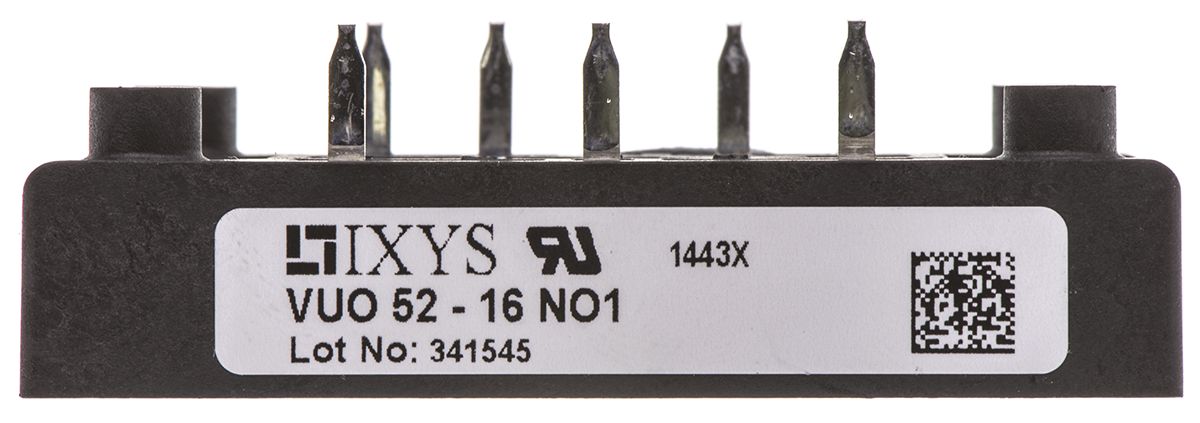

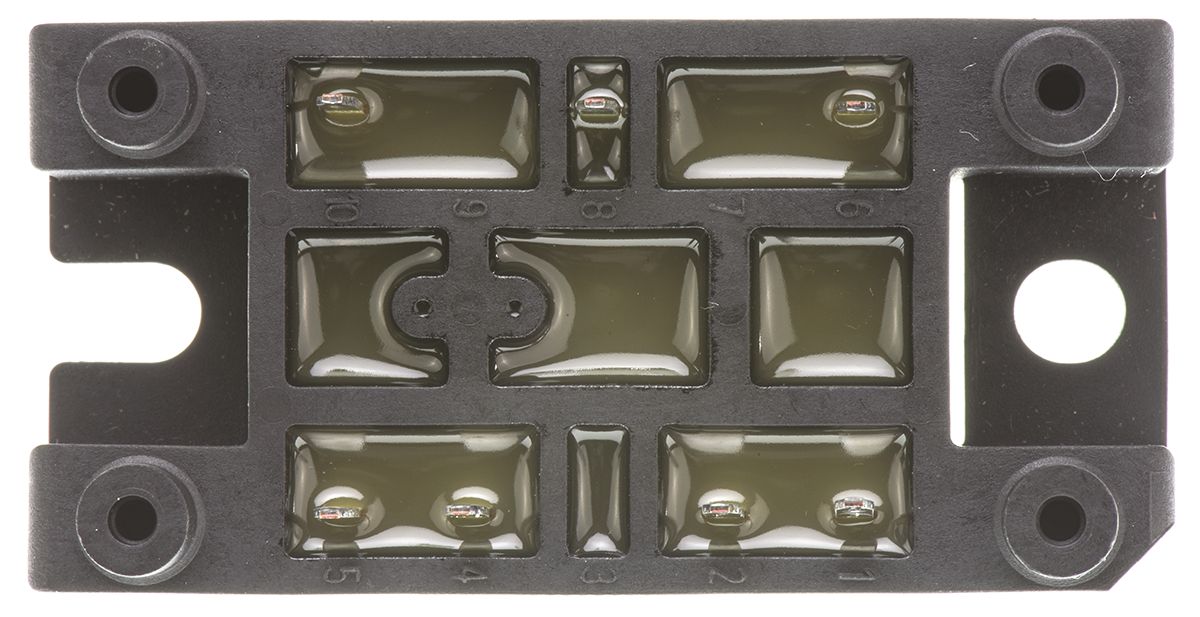

Bridge Rectifier Module, 55A, 1600V, 3-phase, 5-Pin

Peak Average Forward Current:

55A

Bridge Type:

Three Phase

Peak Reverse Repetitive Voltage:

1600V

Mounting Type:

Panel Mount

Package Type:

V1-A-Pack

Pin Count:

5

Diode Technology:

Silicon Junction

Configuration:

Single

Peak Non-Repetitive Forward Surge Current:

375A

Maximum Operating Temperature:

+130 °C

Minimum Operating Temperature:

-40 °C

Peak Forward Voltage:

1.46V

Peak Reverse Current:

300µA

Length:

63mm

Dimensions:

63 x 31.6 x 17mm

Height:

17mm

Width:

31.6mm
