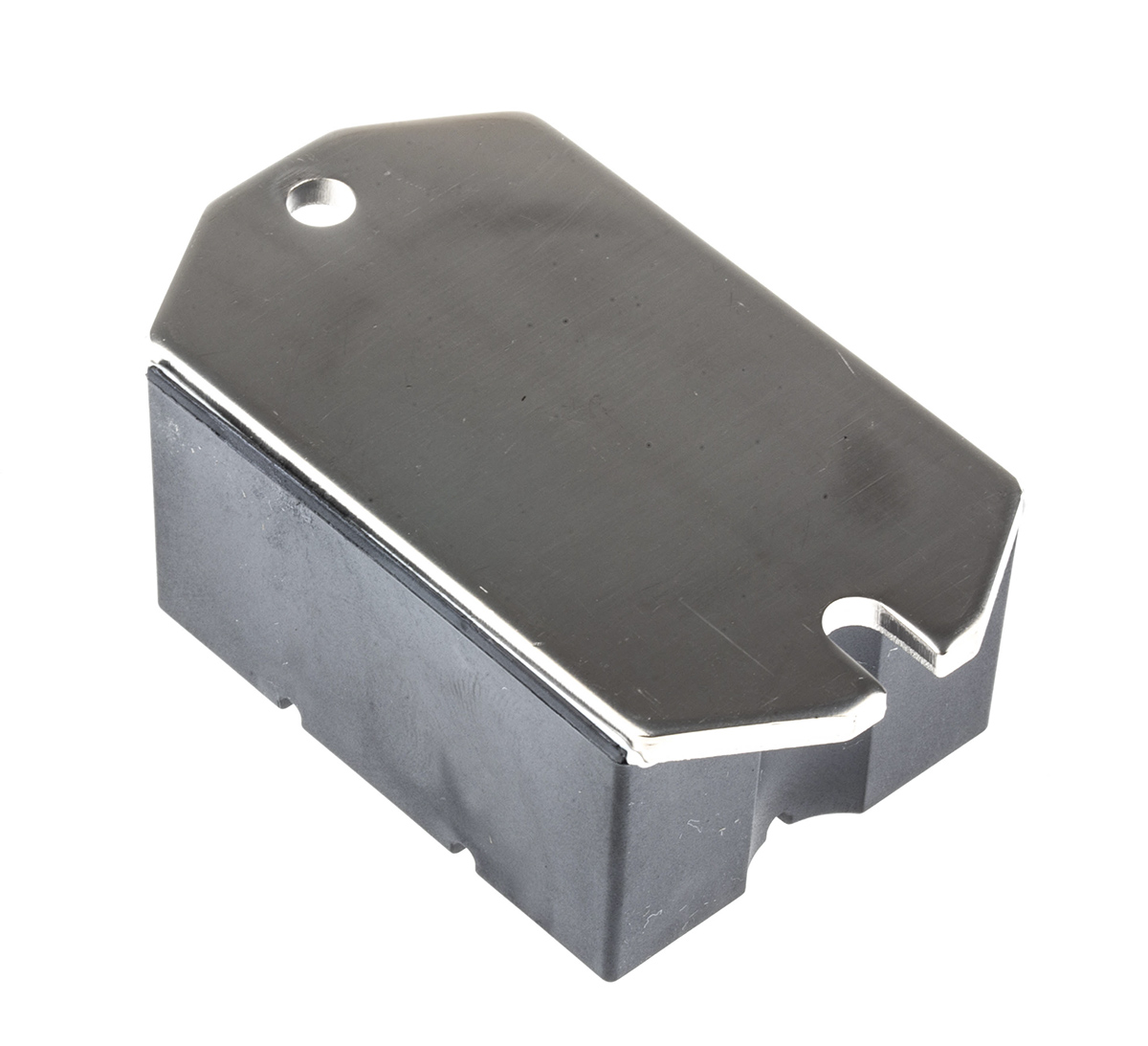

Bridge Rectifier Module, 88A, 1600V, 3-phase, 5-Pin

Bridge Type:

Three Phase

Peak Average Forward Current:

88A

Peak Reverse Repetitive Voltage:

1600V

Mounting Type:

Panel Mount

Package Type:

PWS D

Pin Count:

5

Diode Technology:

Silicon Junction

Configuration:

Single

Peak Non-Repetitive Forward Surge Current:

820A

Maximum Operating Temperature:

+150 °C

Minimum Operating Temperature:

-40 °C

Peak Forward Voltage:

1.6V

Peak Reverse Current:

300µA

Length:

72mm

Dimensions:

72 x 42 x 30mm

Width:

42mm

Height:

30mm
