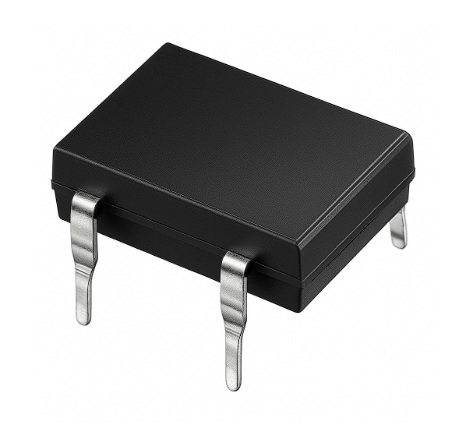

Single-Phase Bridge Rectifier 1000V Peak Reverse 50A Surge Current

Working Peak Reverse Voltage:

1000V

RMS Reverse Voltage:

700V

Average Rectified Output Current:

1.0A

Non-Repetitive Peak Forward Surge Current:

50A

8.3 ms Single Half Sine-Wave Superimposed on Rated Load:

1.1V

Forward Voltage (per element):

10-500μA

Peak Reverse Current at Rated DC Blocking Voltage (per element):

10.4A2s

I2t Rating for Fusing (t<8.3ms):

25pF

Typical Total Capacitance per element:

40°C/W

Typical Thermal Resistance:

-65 to +150 °C
