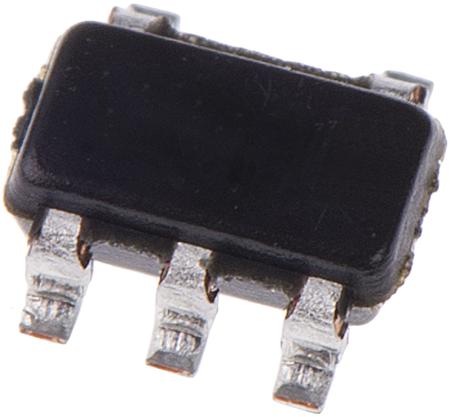

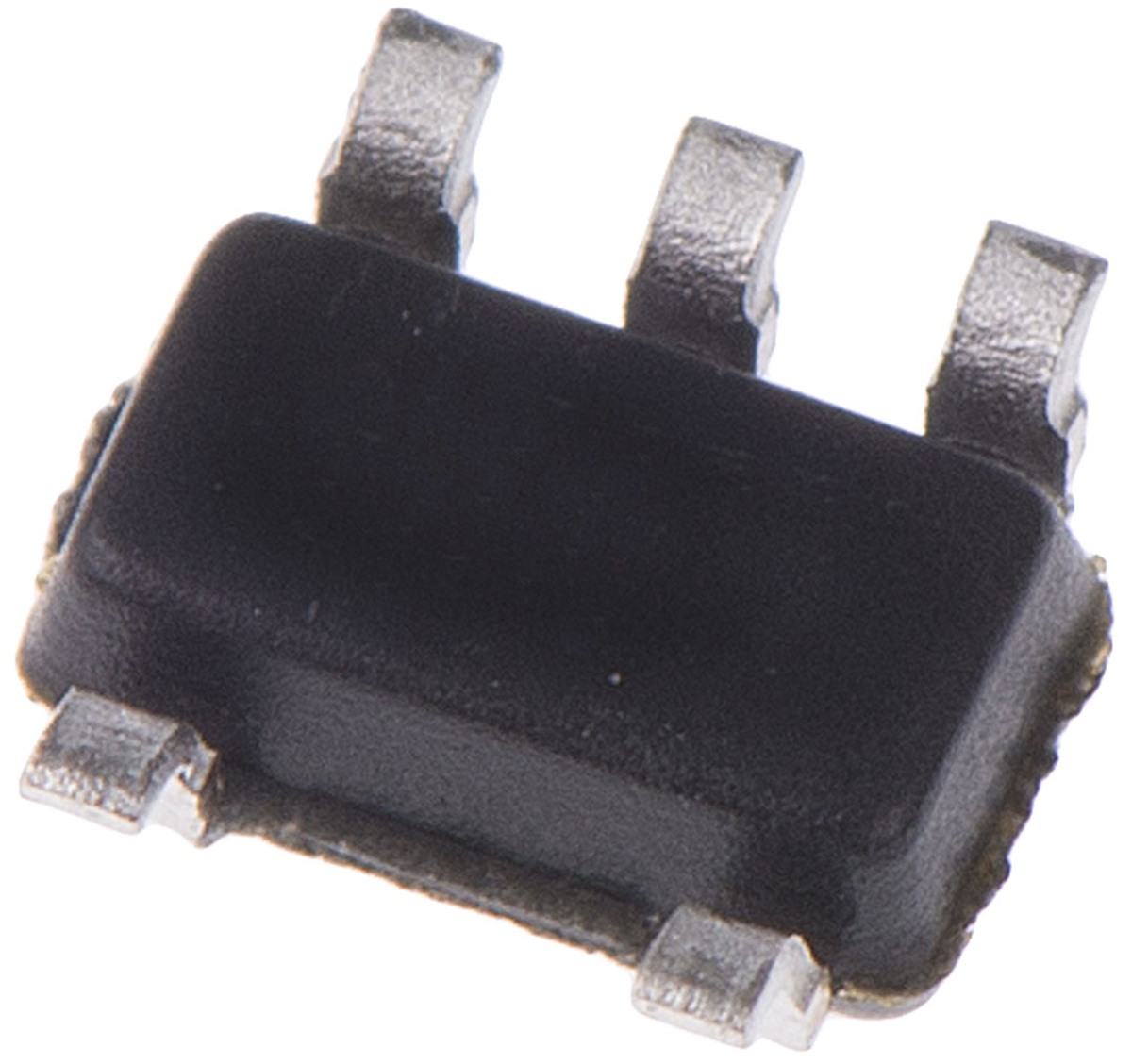

SN74LVC1G126DBVR Non-Inverting 3-State Buffer, 5-Pin SOT-23

Logic Family:

74LVC

Logic Function:

Buffer

Number of Channels:

1

Schmitt Trigger Input:

No

Input Type:

CMOS, TTL

Output Type:

3 State

Polarity:

Non-Inverting

Mounting Type:

Surface Mount

Package Type:

SOT-23

Pin Count:

5

Maximum High Level Output Current:

-32mA

Maximum Low Level Output Current:

32mA

Maximum Propagation Delay Time @ Maximum CL:

4.2 ns @ 5 V

Maximum Operating Supply Voltage:

5.5 V

Dimensions:

3.05 x 1.75 x 1.3mm

Maximum Operating Temperature:

+125 °C

Propagation Delay Test Condition:

15pF

Minimum Operating Supply Voltage:

1.65 V

Length:

3.05mm

Height:

1.3mm

Width:

1.75mm

Minimum Operating Temperature:

-40 °C
