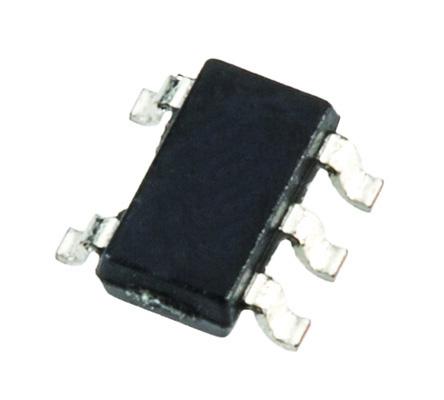

SN74LVC1G17DRLR Non-Inverting Schmitt Trigger Single Ended Buffer, 5-Pin SOT-553

Logic Family:

LVC

Logic Function:

Buffer

Number of Channels:

1

Schmitt Trigger Input:

Yes

Input Type:

Single Ended

Output Type:

Single Ended

Polarity:

Non-Inverting

Mounting Type:

Surface Mount

Package Type:

SOT-553

Pin Count:

5

Maximum High Level Output Current:

-32mA

Maximum Low Level Output Current:

32mA

Maximum Propagation Delay Time @ Maximum CL:

11 ns @ 15 pF

Dimensions:

1.7 x 1.3 x 0.55mm

Maximum Operating Supply Voltage:

5.5 V

Height:

0.55mm

Width:

1.3mm

Maximum Operating Temperature:

+85 °C

Propagation Delay Test Condition:

15pF

Minimum Operating Supply Voltage:

1.65 V

Length:

1.7mm

Minimum Operating Temperature:

-40 °C
