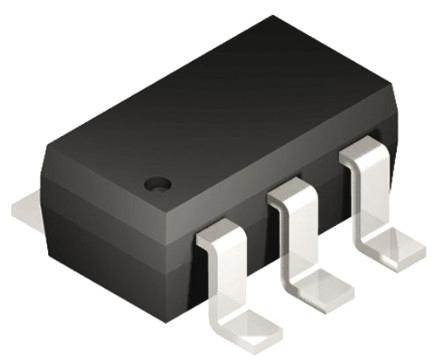

SN74LVC2G17DBVT, Dual-Channel Non-Inverting Schmitt Trigger Buffer, 6-Pin SOT-23

Logic Family:

LVC

Logic Function:

Schmitt Trigger Buffer

Number of Channels:

2

Schmitt Trigger Input:

Yes

Input Type:

Single Ended

Polarity:

Non-Inverting

Mounting Type:

Surface Mount

Package Type:

SOT-23

Pin Count:

6

Maximum High Level Output Current:

-32mA

Maximum Low Level Output Current:

32mA

Maximum Propagation Delay Time @ Maximum CL:

5.4 ns @ 3.3 V

Maximum Operating Supply Voltage:

5.5 V

Dimensions:

2.9 x 1.6 x 1.15mm

Propagation Delay Test Condition:

50pF

Minimum Operating Supply Voltage:

1.65 V

Height:

1.15mm

Width:

1.6mm

Length:

2.9mm

Maximum Operating Temperature:

+85 °C

Minimum Operating Temperature:

-40 °C
