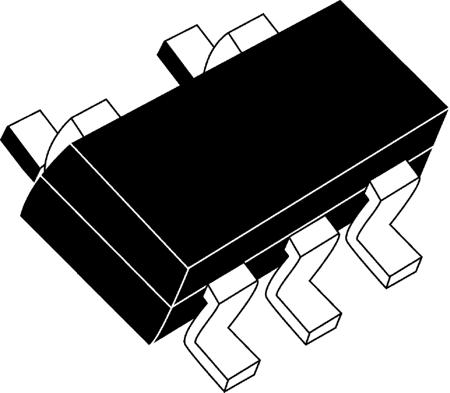

74LVC1G17W5-7 Non-Inverting Schmitt Trigger Push-Pull Buffer, 5-Pin SOT-25

Logic Family:

74LVC

Logic Function:

Buffer

Number of Channels:

1

Schmitt Trigger Input:

Yes

Input Type:

Schmitt Trigger

Output Type:

Push-Pull

Polarity:

Non-Inverting

Mounting Type:

Surface Mount

Package Type:

SOT-25

Pin Count:

5

Maximum High Level Output Current:

-32mA

Maximum Low Level Output Current:

32mA

Maximum Propagation Delay Time @ Maximum CL:

14 ns @ 50 pF

Dimensions:

3.1 x 1.7 x 1.3mm

Maximum Operating Supply Voltage:

5.5 V

Width:

1.7mm

Minimum Operating Temperature:

-40 °C

Height:

1.3mm

Maximum Operating Temperature:

+125 °C

Propagation Delay Test Condition:

50pF

Length:

3.1mm

Minimum Operating Supply Voltage:

1.65 V
