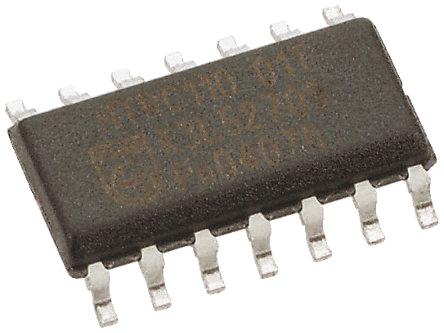

74LV07AS14-13, Hex-Channel Schmitt Trigger Open Drain Buffer, 14-Pin SOIC

Logic Family:

74LV

Logic Function:

Buffer

Number of Channels:

6

Schmitt Trigger Input:

Yes

Input Type:

Schmitt Trigger

Output Type:

Open Drain

Mounting Type:

Surface Mount

Package Type:

SOIC

Pin Count:

14

Maximum Low Level Output Current:

12mA

Maximum Propagation Delay Time @ Maximum CL:

8.5 ns @ 50 pF

Dimensions:

8.74 x 3.99 x 1.48mm

Maximum Operating Supply Voltage:

5.5 V

Height:

1.48mm

Width:

3.99mm

Minimum Operating Supply Voltage:

2 V

Propagation Delay Test Condition:

50pF

Maximum Operating Temperature:

+125 °C

Length:

8.74mm

Minimum Operating Temperature:

-40 °C
