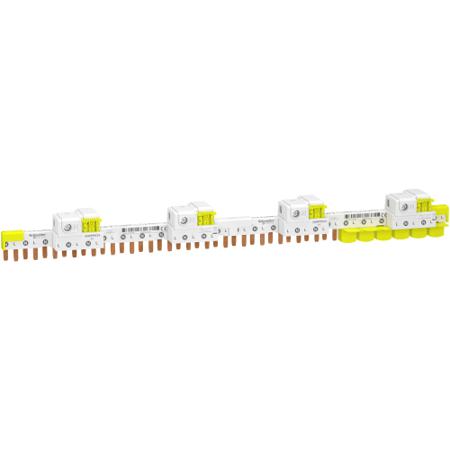

The Schneider Electric comb busbar is Acti9 1L+N with 9 mm pitch and 24 modules. Number of ways 24 ways N + 1 L
Poles configuration for 1 way 1 x 1P + N
Connection pitch 9 mm between phase and neutral
Connector type tooth
Distance between way 18 mm
Marking N L
Device presentation Cuttable
Rated operational current 63 A at 40 °C
Rated operational voltage 230 V AC Ph/N
Rated insulation voltage 400 V AC conforming to IEC 61439-1
Rated impulse withstand voltage 4 kV
Mounting mode Horizontal
Mounting location Top on tunnel type terminals
9 mm pitches 48
Width 434 mm
Colour white
