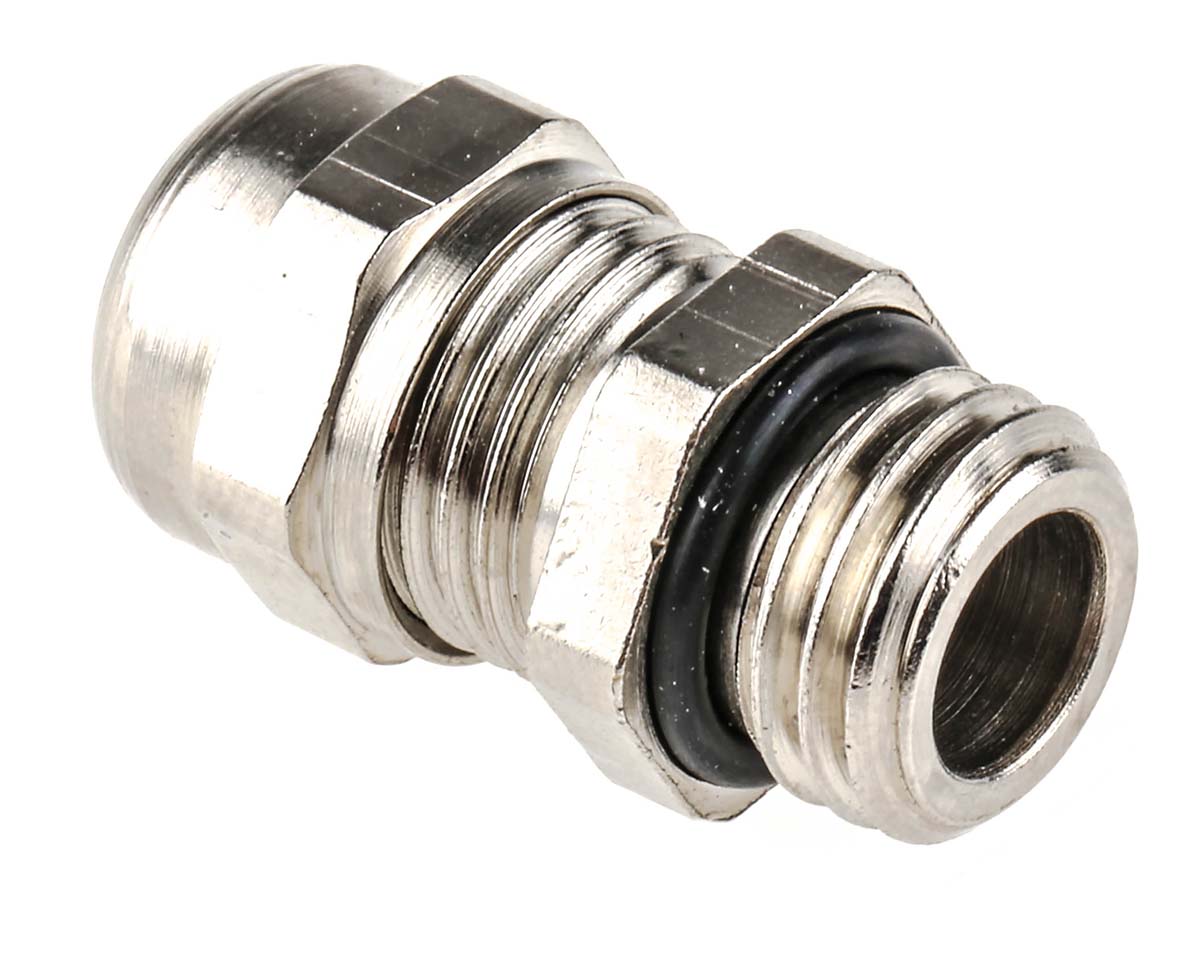

SIB Cable Gland
The SIB cable gland is a robust device with an M12 x 1.5 thread size. It features a tefabloc seal strain relief and thread-mounted O-ring. It is made from brass and has nickel plating. It is ideal for applications in machines and devices. The cable gland is compliant with EN 60423 standards.
Features and Benefits
Clamping diameter ranges between 3mm and 6mm
Operating temperature ranges between -25°C and 100°C
Operating temperature ranges between -25°C and 100°C
WADI-TEC ECEA GSE Series Metallic Nickel Plated Brass Cable Gland, M12 Thread, 3mm min., 6mm max., IP68
Manufacturer:
SIB
Manufacturer Part No:
R0321200R
Enrgtech Part No:
ET13889641
Warranty:
Manufacturer
£ 11.31
Checking for live stock
Thread Size:
M12
Maximum Cable Diameter:
6mm
Minimum Cable Diameter:
3mm
Material:
Nickel Plated Brass
Colour:
Metallic
Series:
WADI-TEC ECEA GSE
IP Rating:
IP68
Locknut Included:
Yes
Maximum Operating Temperature:
+100°C
Minimum Operating Temperature:
-25°C
Operating Temperature Range:
-25 → +100 °C
