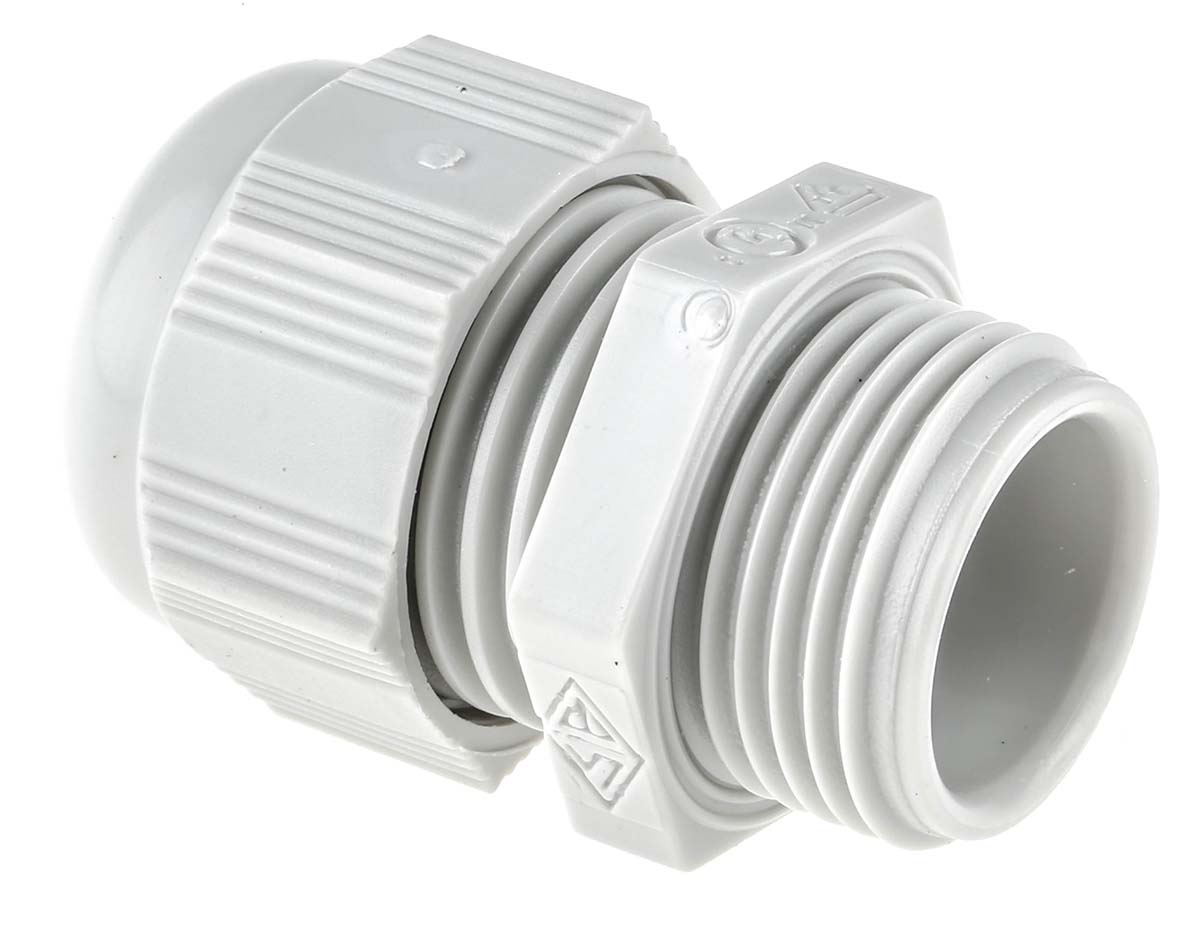

SIB Gland M20 Cable Gland
The SIB cable gland is a robust tool with an M20 thread size made from Polyamide 6 V2 material. It features a neoprene internal sealing trim. It is ideal for applications in machines and devices.
Inclusions:
Locknut. Features and Benefits Clamping diameter ranges between 6mm and 12mm
Halogen free
Operating temperature ranges between -40°C and 100°C
Reducer-seal insert Certifications CSA certified
EN 50262
UL approved
VDE
Inclusions:
Locknut. Features and Benefits Clamping diameter ranges between 6mm and 12mm
Halogen free
Operating temperature ranges between -40°C and 100°C
Reducer-seal insert Certifications CSA certified
EN 50262
UL approved
VDE
SIB-TEC Series Grey PA 6 Cable Gland, M20 Thread, 5mm min., 12mm max., IP68
Manufacturer:
SIB
Manufacturer Part No:
F7022050R
Enrgtech Part No:
ET13904825
Warranty:
Manufacturer
£ 8.76
Checking for live stock
Thread Size:
M20
Maximum Cable Diameter:
12mm
Minimum Cable Diameter:
5mm
Material:
PA 6
Colour:
Grey
Series:
SIB-TEC
IP Rating:
IP68
Locknut Included:
Yes
Maximum Operating Temperature:
+100°C
Minimum Operating Temperature:
-40°C
Operating Temperature Range:
-40 → +100 °C
