lsf40cw Prysmian LSF40CW, M40 Cable Gland Kit, 29 → 39.9mm Cable Dia.

Armoured CW Indoor/Outdoor (SWA) LSF Gland Kit The LSF CW series of cable glands and accessories have low smoke, zero halogen properties and are suitable for both indoor and outdoor use. The glands can be used in a range of weather conditions with an outer seal that grips the cable sheath. The shroud complies with London Underground Ltd Engineering Standard E1042:A2 for fire safety performance. These glands provide clamping of the armour wires for electrical continuity and mechanical retention of the cable. The LSF kits include LSF shroud, CW gland, brass locknut and brass earth tag. Features and benefits • Zero Halogen Silicone seals and shrouds • IP66 Rating • Outer seal grips sheath of cable • Separate armour locking ring

Prysmian LSF40CW, M40 Cable Gland Kit, 29 → 39.9mm Cable Dia.

Manufacturer:
Manufacturer Part No:
LSF40CW
Enrgtech Part No:
ET13958248
Warranty:
Manufacturer
£ 27.07
Checking for live stock
Fire Behaviour:
Low Smoke Zero Halogen (LSZH)
Standards Met:
CE
Minimum Cable Diameter:
29mm
IP Rating:
IP66
Series:
LSF-CW
Material:
Steel
Thread Size:
M40
Operating Temperature Range:
-20 → +90 °C
Minimum Operating Temperature:
-20°C
Maximum Cable Diameter:
39.9mm
Number of Cores:
1
Locknut Included:
Yes
Number of Pieces:
9
Maximum Operating Temperature:
+90°C
Kit Includes:

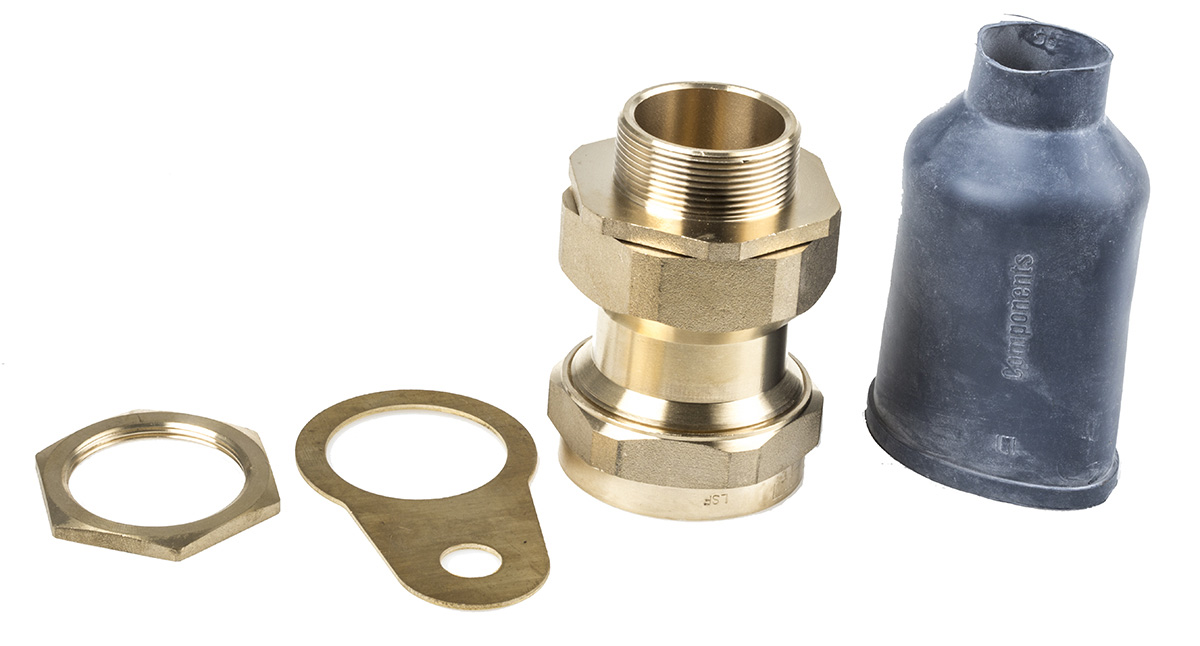

Armour Ring, Earth Tag, Gland Barrel, Gland Body, Gland Nut, Lock Nuts, Seal, Shroud, Washer
pdf icon
CW Armoured Gland Kit Data Sheet(Technical Reference)
