SIB Sib-tec Cable Gland
The SIB Sib-tec cable gland is a robust tool with an M16 thread size made from Polyamide 6 V2 material. It features a neoprene seal. It is ideal for applications in machines and devices.
Inclusions:
Locknut and nitrile 70 Sh A gasket. Features and Benefits Clamping diameter ranges between 4mm and 9.5mm
Fully insulated
Operating temperature from -40°C to 100°C
O-ring on external thread
Reducer seal insert
Sealed cable glands
Wide clamping range
Inclusions:
Locknut and nitrile 70 Sh A gasket. Features and Benefits Clamping diameter ranges between 4mm and 9.5mm
Fully insulated
Operating temperature from -40°C to 100°C
O-ring on external thread
Reducer seal insert
Sealed cable glands
Wide clamping range

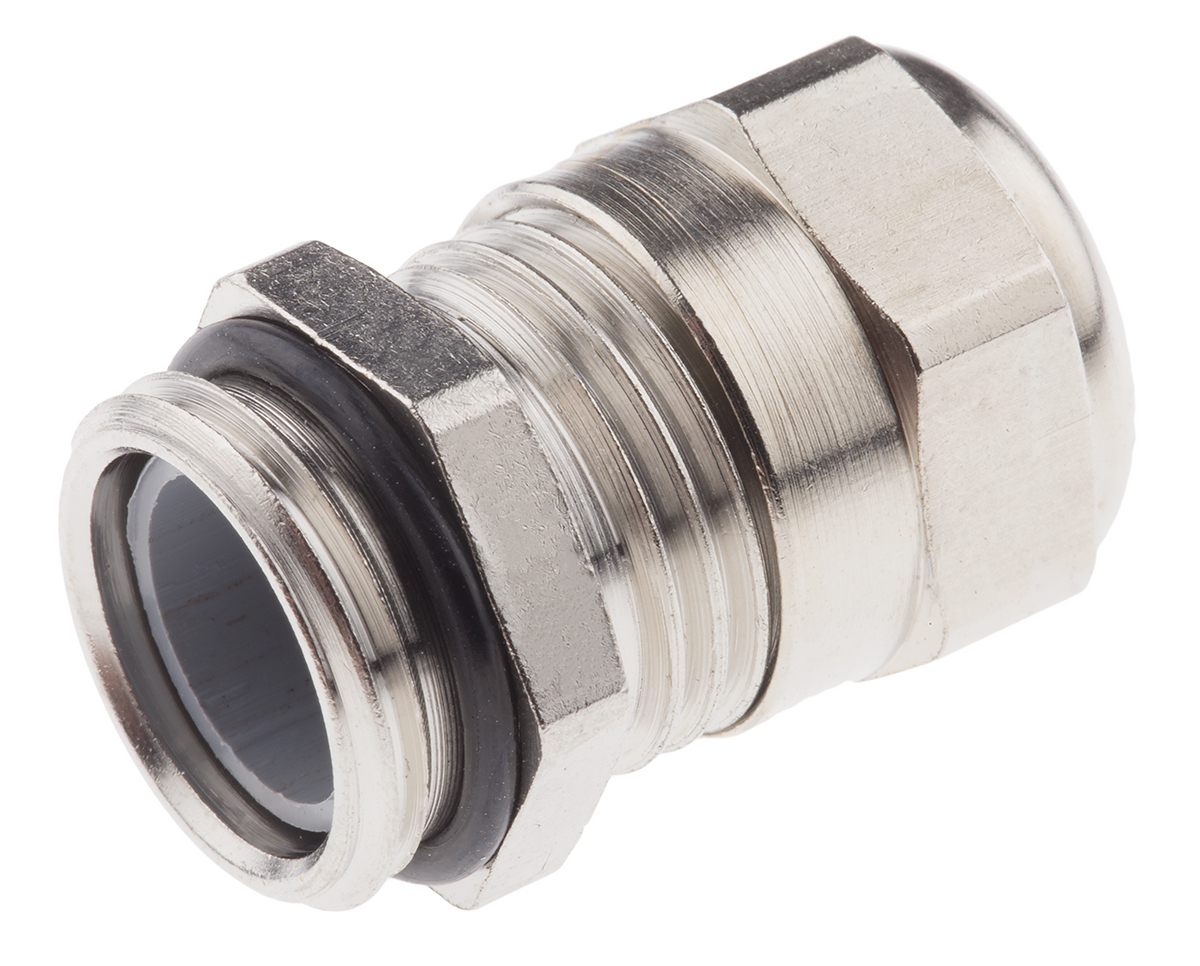

SIB-TEC Series Metallic Nickel Plated Brass Cable Gland, M16 Thread, 4mm min., 9.5mm max., IP68
Manufacturer:
SIB
Manufacturer Part No:
C5216000R
Enrgtech Part No:
ET14076120
Warranty:
Manufacturer
£ 16.16
Checking for live stock
Thread Size:
M16
Maximum Cable Diameter:
9.5mm
Minimum Cable Diameter:
4mm
Material:
Nickel Plated Brass
Colour:
Metallic
Series:
SIB-TEC
IP Rating:
IP68
Locknut Included:
Yes
Minimum Operating Temperature:
-40°C
Maximum Operating Temperature:
+100°C
Operating Temperature Range:
-40 → +100 °C
