Skintop IP69K ST-M Metric Nylon Gland The Skintop ST-M cable glands from Lapp provides you with vibration protection, oil resistance and strain relief over a wide variety of clamping ranges. Applications include automation technology, use in areas where cables and wires need to be safely inserted into housings, machine and equipment manufacturing, and offshore platforms, equipment and shipyards. Features and Benefits • IP69k rating • High oil-resistance for maximum reliability • Permanent vibration protection • Good chemical resistance • Fast and easy to assemble • Optimum strain relief • Thread sizes from M12 to M63 Note Please note that stock number 8079827 is supplied without the counter nut but you can order this seperately by looking at our essential extras. Standards Strain relief in accordance to EN50262

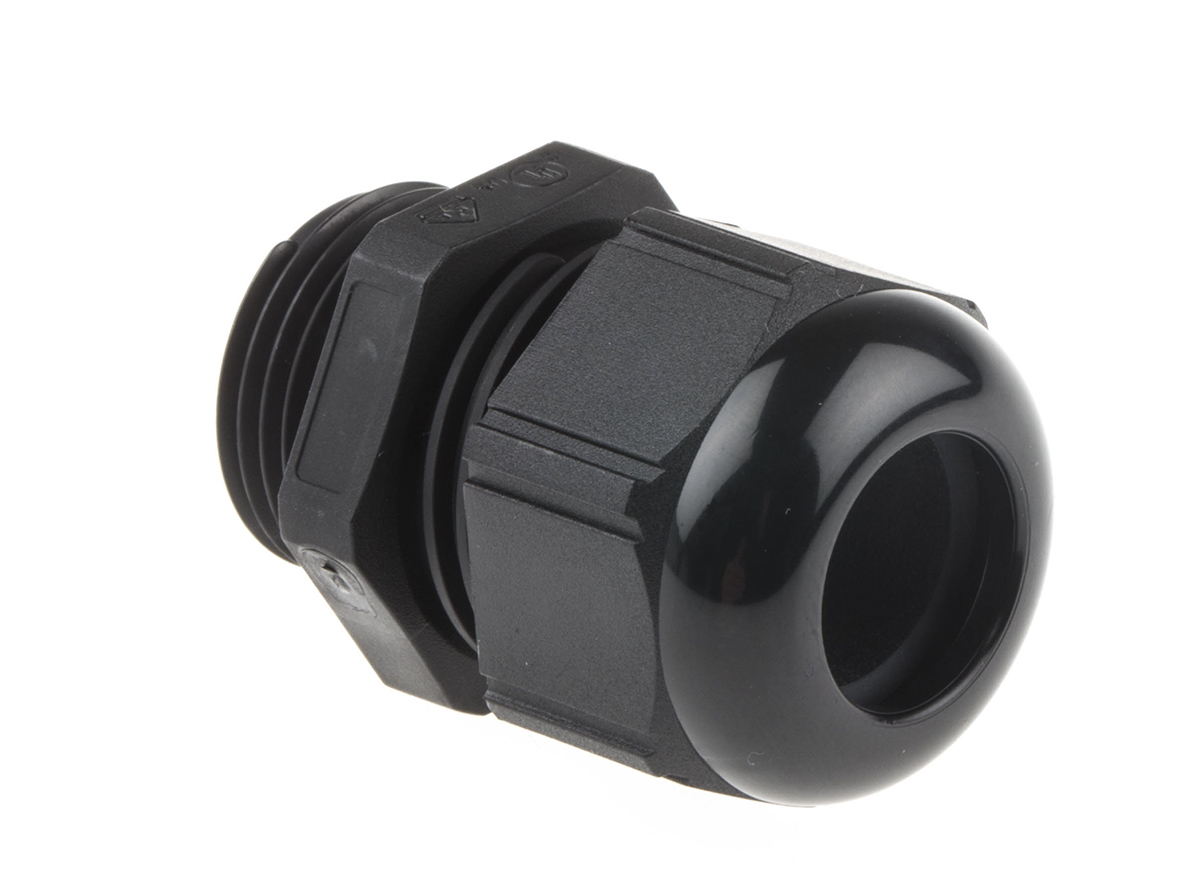

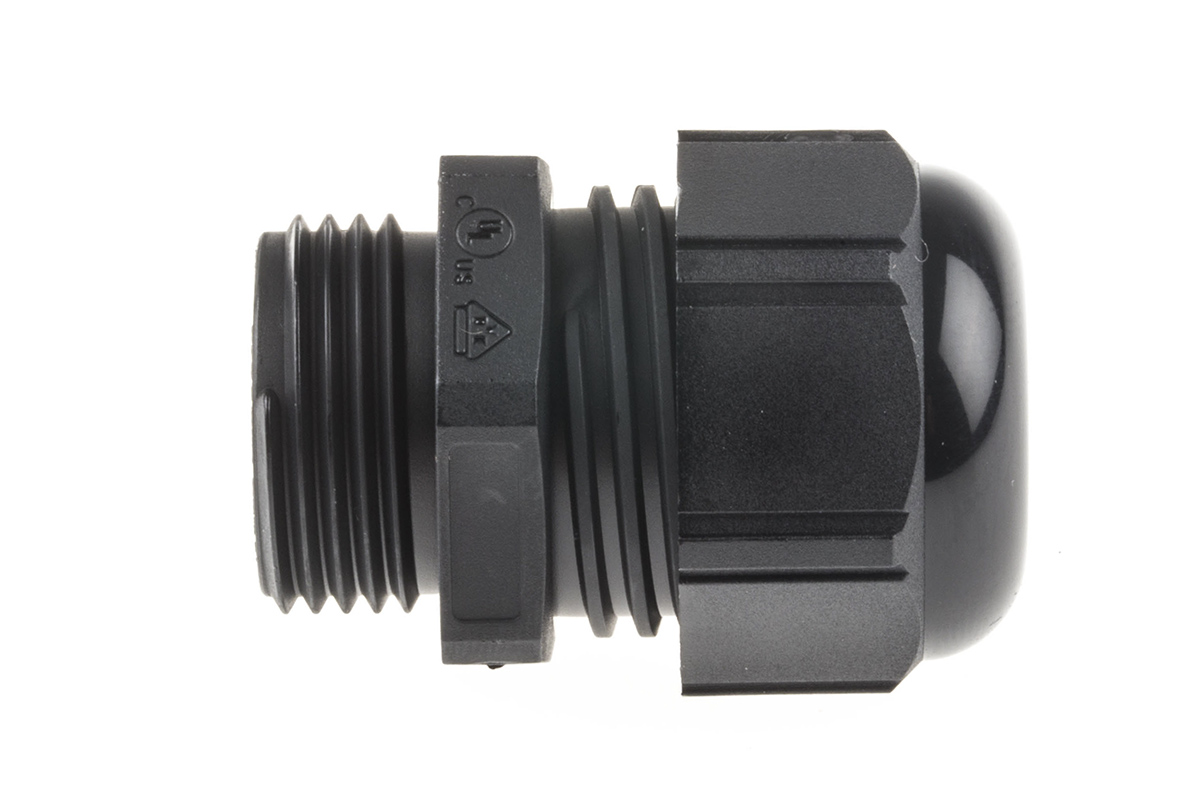

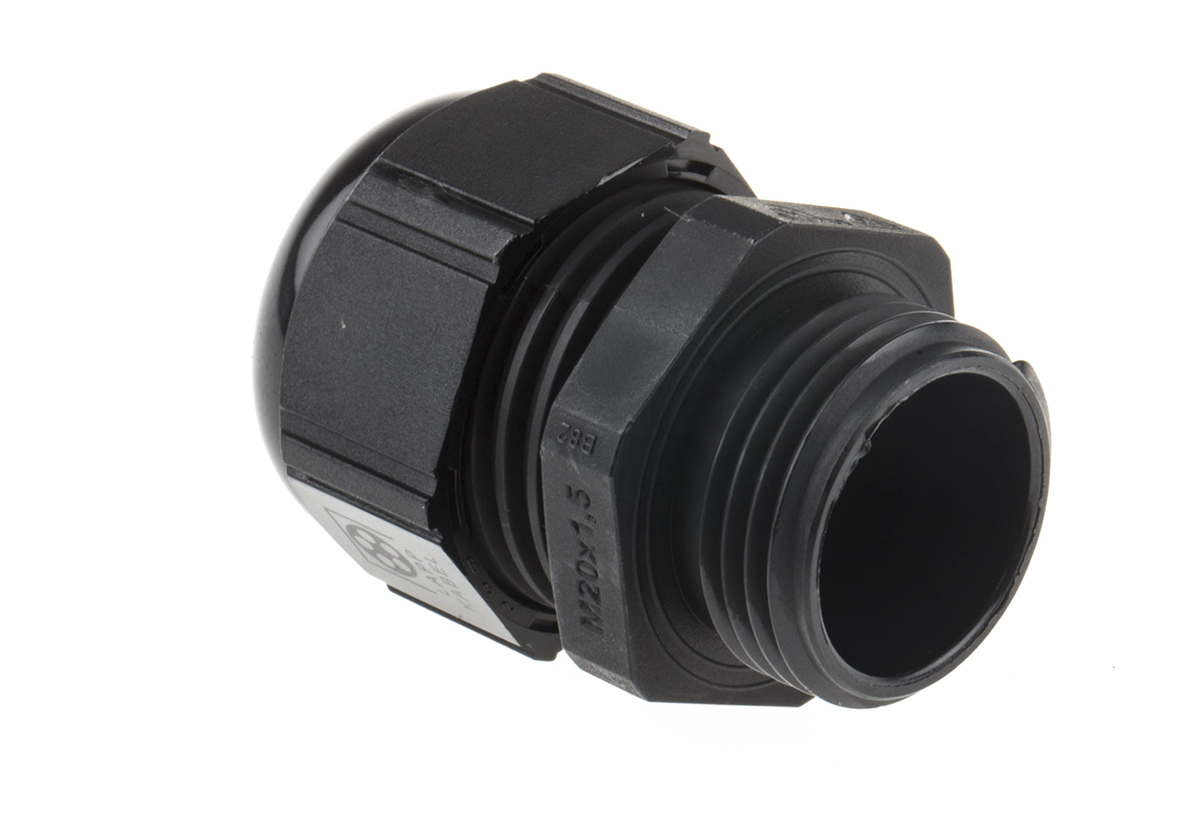

Lapp M20 Black Polyamide, IP69K Cable Gland 6mm Waterproof

Manufacturer:
Manufacturer Part No:
53111220
Enrgtech Part No:
ET16749605
Warranty:
Manufacturer
£ 0.87
Checking for live stock
Fire Behaviour:
UL 94 V2
Standards Met:
CE, cUL Listed
Reference:
SKINTOP ST-M
IP Rating:
IP66, IP68, IP69K
Series:
SKINTOP
Colour:
Black
Material:
Polyamide
Minimum Cable Diameter:
6mm
Thread Size:
M20
Operating Temperature Range:
-20 → +100 °C
Minimum Operating Temperature:
-20°C
Maximum Cable Diameter:
13mm
Locknut Included:
No
Maximum Operating Temperature:
+100°C
Number of Pieces:
100
HTSUS:
8547.20.0000
RoHS Status:
ROHS3 Compliant
Thread Size:
M20x1.5
Operating Temperature:
-40°C ~ 100°C
Panel Hole Size:
-
Outside Cable Diameter (Min):
0.236" (6.00mm)
Conduit Hub Size:
-
Type:
Cable Gland
Outside Cable Diameter (Max):
0.512" (13.00mm)
Material:
Polyamide
REACH Status:
REACH Unaffected
Includes:
-
standardLeadTime:
2 Weeks
Ingress Protection:
IP66/IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 12
Color:
Black
Series:
SKINTOP® ST
Packaging:
Bulk
Thread Length:
0.354" (9.00mm)
ECCN:
EAR99
pdf icon
Cable Gland Selection Chart(Technical Reference)
pdf icon
Instruction Sheet - SKINTOP ST-M/STR-M; BS-M/BSR-M(Technical Reference)
pdf icon
LAPP_PRO976_Datasheet(Technical Reference)
pdf icon
SKINTOP® SLM/SLRM Datasheet(Datasheets)
