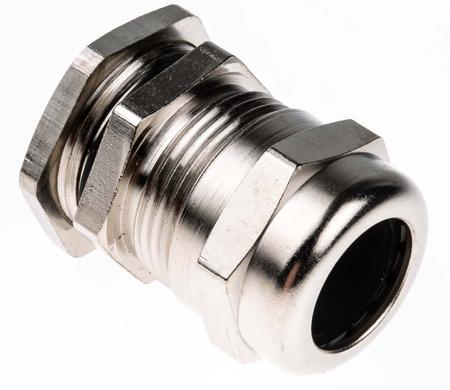

SIB Sib-tec Cable Gland
The SIB Sib-tec cable gland is a robust tool with a PG16 thread size made from nickel-plated brass material. It features a neoprene seal. It is ideal for applications in machines and devices.
Inclusions:
Locknut and nitrile 70 Sh A gasket. Features and Benefits Clamping diameter ranges between 8mm and 15mm
Fully insulated
Operating temperature from -40°C to 100°C
O-ring on external thread
Reducer seal insert
Sealed cable glands
Wide clamping range
Inclusions:
Locknut and nitrile 70 Sh A gasket. Features and Benefits Clamping diameter ranges between 8mm and 15mm
Fully insulated
Operating temperature from -40°C to 100°C
O-ring on external thread
Reducer seal insert
Sealed cable glands
Wide clamping range
SIB-TEC Series Metallic Nickel Plated Brass Cable Gland, PG16 Thread, 8mm min., 15mm max., IP68
Manufacturer:
SIB
Manufacturer Part No:
C5016000R
Enrgtech Part No:
ET16848886
Warranty:
Manufacturer
£ 23.51
Checking for live stock
Thread Size:
PG16
Maximum Cable Diameter:
15mm
Minimum Cable Diameter:
8mm
Material:
Nickel Plated Brass
Colour:
Metallic
Series:
SIB-TEC
IP Rating:
IP68
Locknut Included:
Yes
Minimum Operating Temperature:
-40°C
Maximum Operating Temperature:
+100°C
Standards Met:
RoHS Compliant
Operating Temperature Range:
-40 → +100 °C
