Lock key switches
These lock key switches, splash-proof to IP standard65, are available in 2 versions:
- One version is intended for electrical boxes and is available in the harmonised combinations 405E, 455E, 1242E and 2433A.
- Another version is intended for changing rooms, closets, etc., and offers 500 different combinations.
Black epoxy finish, supplied with 2 keys and a 9-hour mounted, 40-mm cam.
- One version is intended for electrical boxes and is available in the harmonised combinations 405E, 455E, 1242E and 2433A.
- Another version is intended for changing rooms, closets, etc., and offers 500 different combinations.
Black epoxy finish, supplied with 2 keys and a 9-hour mounted, 40-mm cam.

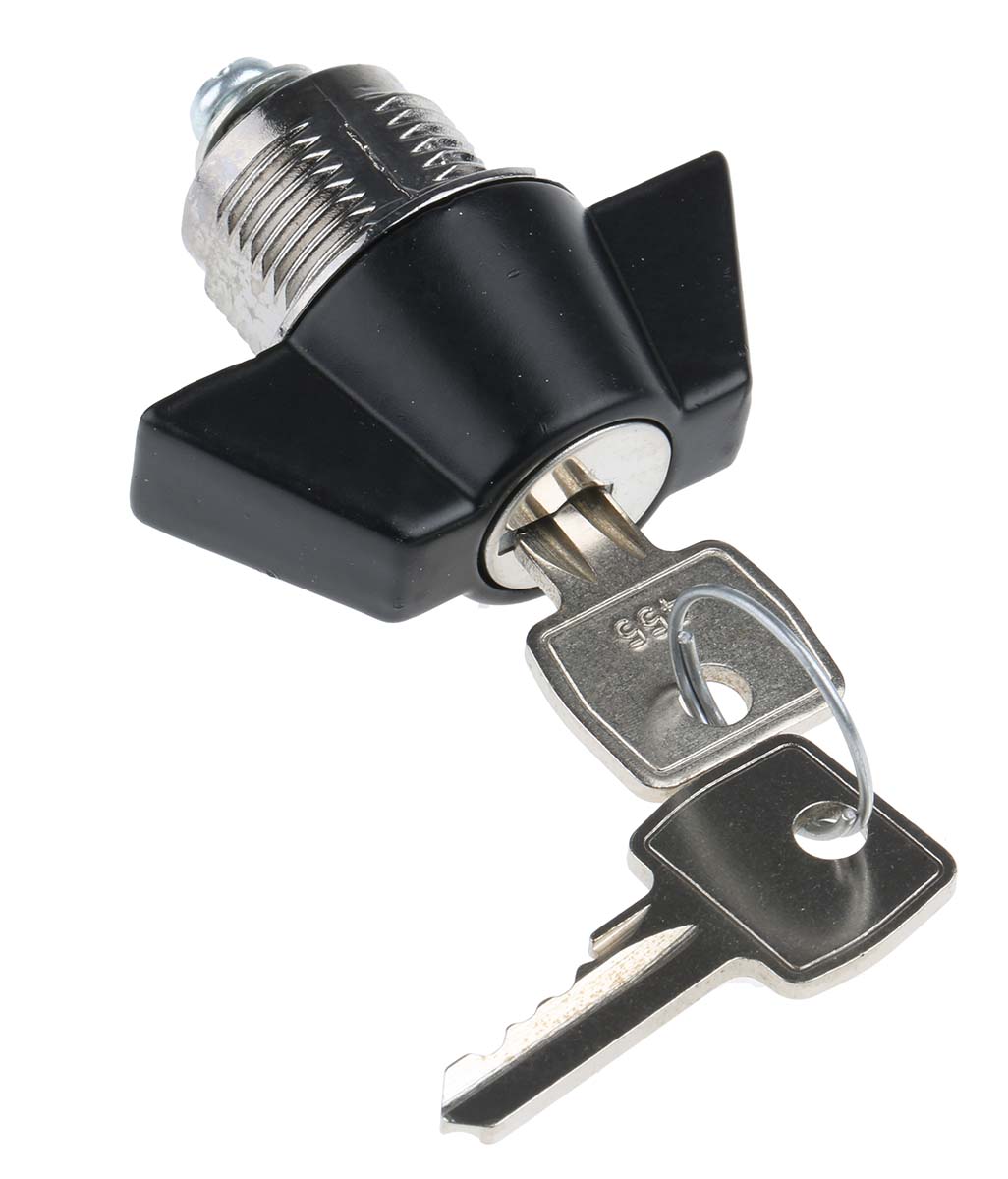

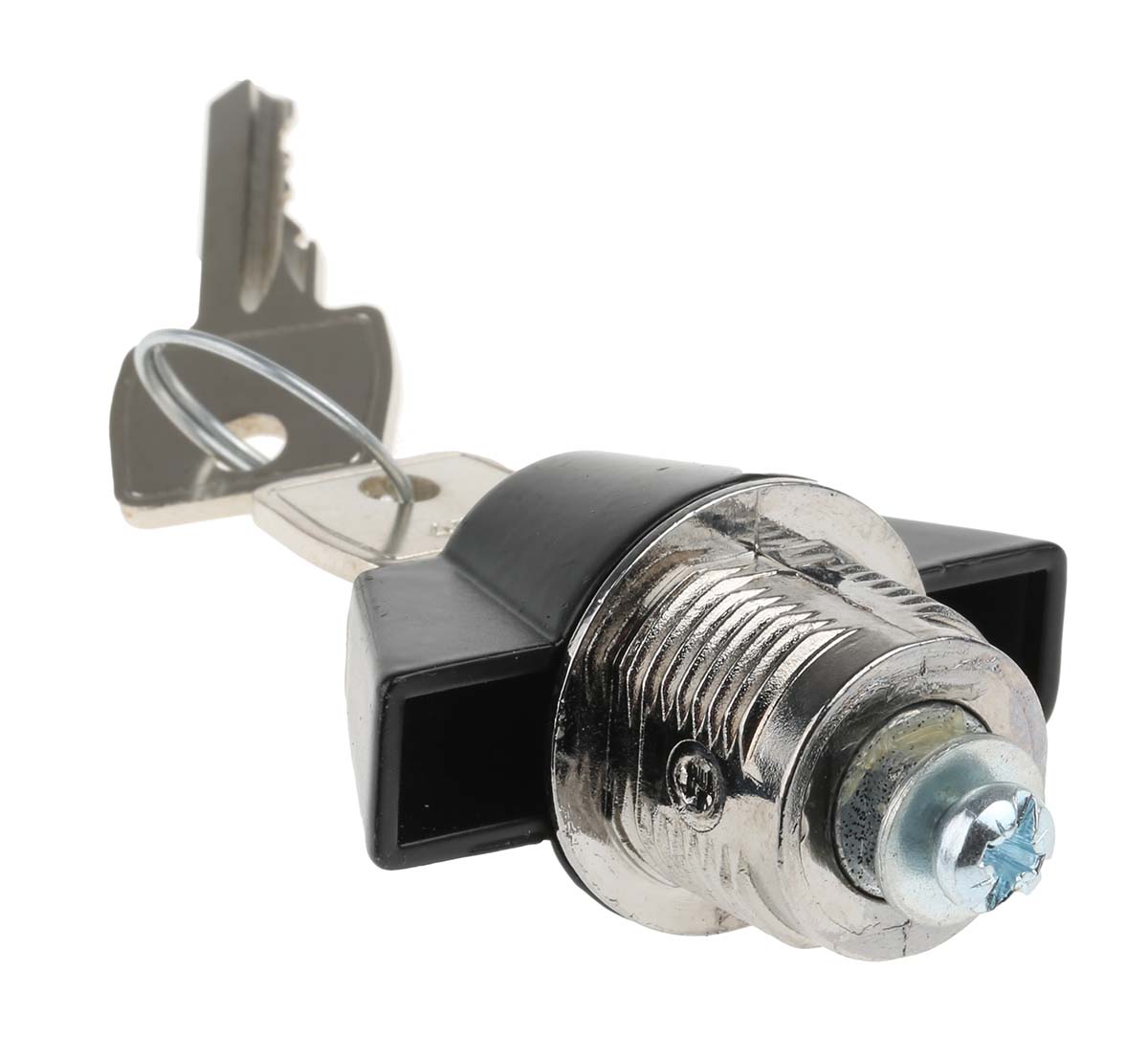

Camlock, 16mm Panel-to-Tongue, 23 x 20.2mm Cutout, Key Unlock
Manufacturer:
Euro-Locks a Lowe & Fletcher group Company
Manufacturer Part No:
F383-01-1 (455E)
Enrgtech Part No:
ET14090722
Warranty:
Manufacturer
£ 10.83
Checking for live stock
Unlock Method:
Key
Panel To Tongue Depth:
16mm
Panel Cut Out:
23 x 20.2mm
Panel Cut Out Diameter:
23mm
Maximum Panel Thickness:
8mm
Panel Cut Out Length:
20.2mm
Panel Cut Out Width:
20.2mm
IP Rating:
IP65
