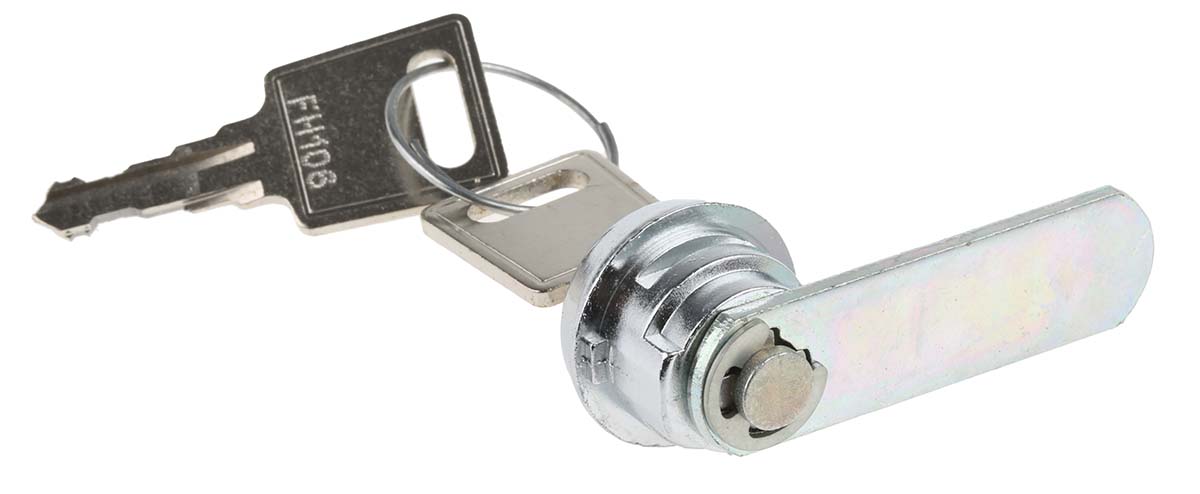

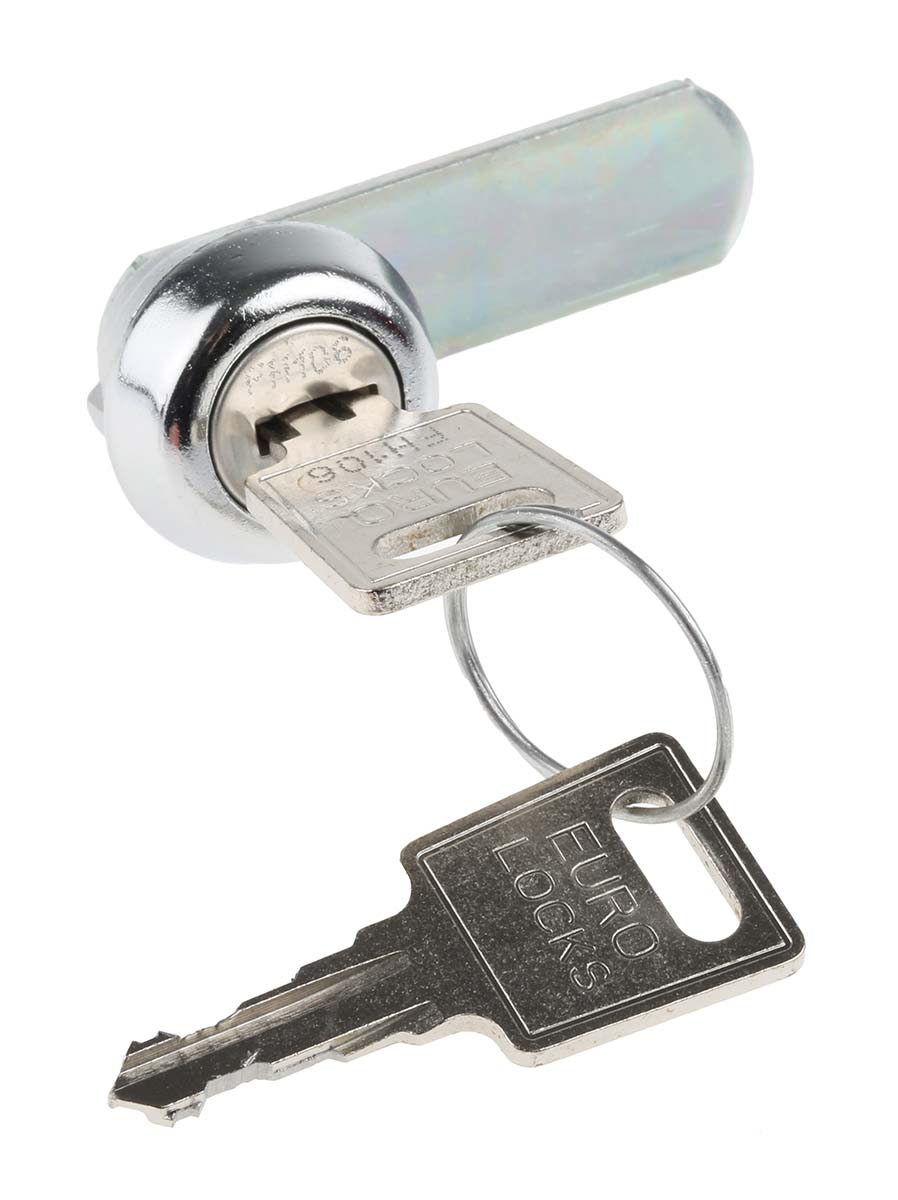

Euro-Locks A Lowe & Fletcher Group Company Camlock
The Euro-Locks a Lowe & Fletcher Group company Camlock is the latest invention with a 9.5mm panel to tongue depth. The panel cut-out size is 20.3mm of length and 17.7mm of width. It is suitable for enclosures or equipment doors. It has a body made from Zamak with chrome-plated finish. This is ideal for both wood and metal applications.
Features and Benefits
Socket type configuration

Camlock, 9.5mm Panel-to-Tongue, 20.3 x 17.7mm Cutout, Key Unlock
Manufacturer:
Euro-Locks a Lowe & Fletcher group Company
Manufacturer Part No:
F143-03-2
Enrgtech Part No:
ET16796477
Warranty:
Manufacturer
£ 5.19
Checking for live stock
Unlock Method:
Key
Panel To Tongue Depth:
9.5mm
Panel Cut Out:
20.3 x 17.7mm
Panel Cut Out Diameter:
17.7mm
Minimum Panel Thickness:
0.8mm
Maximum Panel Thickness:
1.2mm
Panel Cut Out Length:
20.3mm
Panel Cut Out Width:
17.7mm
