Flatpack Radial Fans
• Designed for applications with limited space
• Airflow is at right angles to the intake
• High static pressure capabilities
• Connections are wire ended
• Locked rotor protection
• Ball bearing type
• High temperature low power operation
• Airflow is at right angles to the intake
• High static pressure capabilities
• Connections are wire ended
• Locked rotor protection
• Ball bearing type
• High temperature low power operation

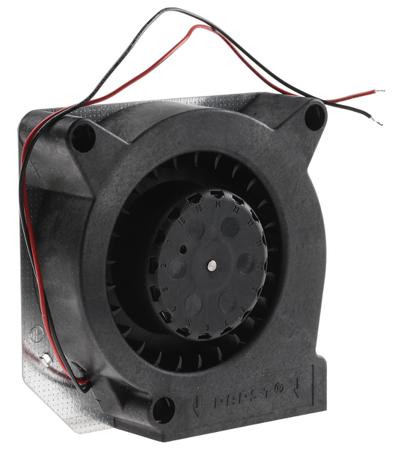

RL 90 N Series Centrifugal Fan, 12 V dc, 40m³/h, DC Operation, 120.6 x 120.6 x 37.3mm
Manufacturer:
ebm-papstManufacturer Part No:
RL90-18/12N
Enrgtech Part No:
ET13843074
Warranty:
Manufacturer
£ 80.73
Checking for live stock
Supply Voltage:
12 V dc
Blower Type:
Centrifugal
AC or DC Operation:
DC
Air Flow:
40m³/h
Series:
RL 90 N
Height:
120.6mm
Width:
120.6mm
Depth:
37.3mm
Dimensions:
120.6 x 120.6 x 37.3mm
Fan Speed:
2500rpm
Noise Level:
58dB
Bearing Type:
Ball
