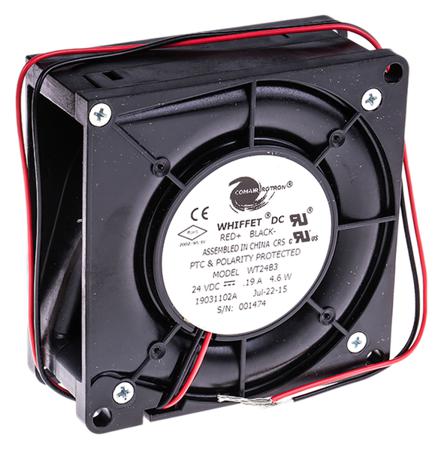

Whiffet Series Centrifugal Fan, 24 V dc, 15cfm, DC Operation, 80 x 80 x 32mm

Supply Voltage:

24 V dc

Blower Type:

Blower

AC or DC Operation:

DC

Air Flow:

15cfm

Series:

Whiffet

Height:

80mm

Width:

80mm

Depth:

32mm

Dimensions:

80 x 80 x 32mm

Fan Speed:

4050rpm

Noise Level:

52.2dB(A)

Bearing Type:

Ball

Mounting Hole Spacing:

71.37 x 71.37mm

Maximum Current:

200mA

Static Pressure:

0.62in/H2O

Commutation Type:

Brushless

Direction of Curve:

Forward

Mounting Hole Diameter:

4.06mm

Termination Type:

Lead Wire

Horizontal Hole Spacing:

71.42mm

Vertical Hole Spacing:

71.42mm

Sensor Type:

Tachometer

Inlet Diameter:

60.5mm
