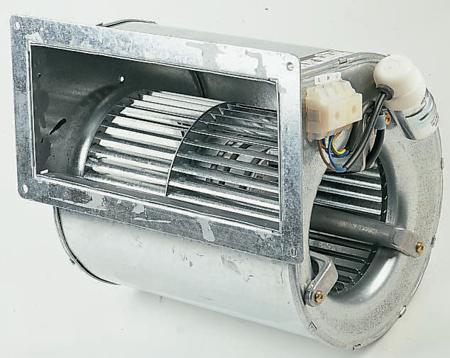

ebm-papst Centrifugal Blower The ebm-papst centrifugal dual inlet, high-performance fan motor blower has an airflow of 710m³/h and a supply voltage rating of 230VAC. This is integrated within the impeller that reduces installation dimensions. It is constructed from die-cast aluminium and is rugged with a long service life. It is 198mm long, 171.5mm wide and 254mm depth. The scroll housing is open on both sides for added efficiency and a reduction in noise level.

Supplied with pre-mounted capacitor and terminal strip.
Note:
To prevent overloading the motor, this blower must be operated against the minimum static pressures. Features and Benefits Double width fans with an external rotor motor
Sealed for life
Maintenance free
Class B insulation
Impeller is forward curved multi-vane type
Body is heavy duty, riveted galvanised steel
Ball bearing type and can be mounted in any position Certifications CE certified
CCC certified
GOST certified
IP44 rated
EN 60335-1
