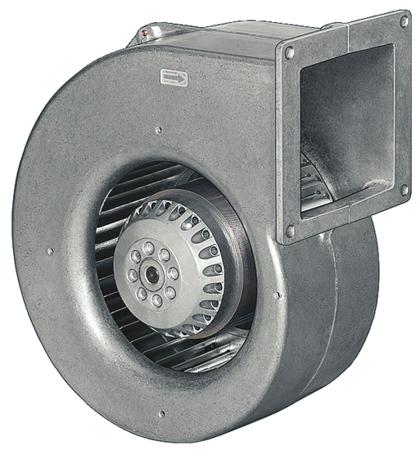

ebm-papst Centrifugal Blower The ebm-papst centrifugal single inlet, high-performance fan motor blower has an airflow of 755m³/h and a supply voltage rating of 230VAC. This is integrated within the forward-curved multi-vane impeller that reduces installation dimensions. It is constructed from die-cast aluminium and is rugged with a long service life. It is 283mm long, 261mm wide and 125mm deep.

Note:
To prevent overloading the motor, this blower must be operated against the minimum static pressures. Features and Benefits High performance fans with an external rotor motor
Sealed for life
Maintenance free
Class B insulation
Impeller is forward curved multi-vane type
Scroll die-cast with motor capacitor, mounting flange and finger guard/filter fixings
Ball bearing type and can be mounted in any position
With housing (flange) Applications Industrial use
Central air conditioning units or building ventilation systems
Automobiles Certifications CE certified
CCC certified
IP44 rated
EN 60335-1
