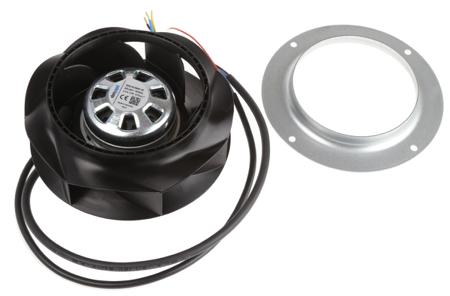

ebm-papst Centrifugal Fan The ebm-papst single inlet centrifugal fan has an airflow of 280m³/h (for 50Hz) at a fan speed of 3930rpm and has a supply voltage rating of 230VAC. It is an electronically commutated motor, single inlet, blower. The external rotor motor is integrated within the impeller, therefore reducing installation dimensions. It has featured backwards-curved blades ideal for a wide range of applications. The scroll housing is open on both sides for added efficiency and a reduction in noise level. The robust and space-saving design makes them versatile and easy to use. It is 133mm wide and 65mm deep.
Supplied with inlet ring. Features and Benefits Low-pressure centrifugal solutions
Fitted with highly efficient GreenTech EC motor
Aerodynamic shape reduces noise emissions
Hybrid construction makes impellers highly corrosion-resistant
EC control options available
Class B insulation Applications Control cabinet cooling
In-line duct fans
Home ventilation units
Heat pumps Certifications IP54 rated
EN 60335-1
