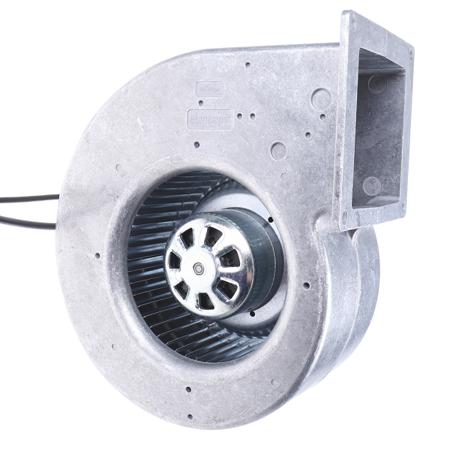

ebm-papst Centrifugal Fan The ebm-papst single inlet centrifugal fan has an airflow of 650m³/h (for 50Hz) at a fan speed of 2320rpm and a supply voltage ranging from 200VAC to 240VAC. The external rotor motor is integrated within the impeller, therefore reducing installation dimensions. It has featured forwarding curved blades ideal for a wide range of applications. The scroll housing is open on both sides for added efficiency and a reduction in noise level. It is 248.5mm long, 227mm width and 130mm deep. The robust and space-saving design makes them versatile and easy to use. Features and Benefits Motors are sealed for life
Maintenance free
Class B insulation
Ball bearing type may be mounted in any position
Noise level is 70dB
Fitted with highly efficient GreenTech EC motor
Intelligent electronics for numerous control functions
Wide voltage range
Robust design and maintenance free operation
Long service life\ Applications Central air conditioning units or building ventilation systems
Automobile
Railway
Electronic products
Medical treatment
Household
Ventilation
Air conditioning
Refrigeration system Certifications EN 60335
CE certified
IP54 rated
