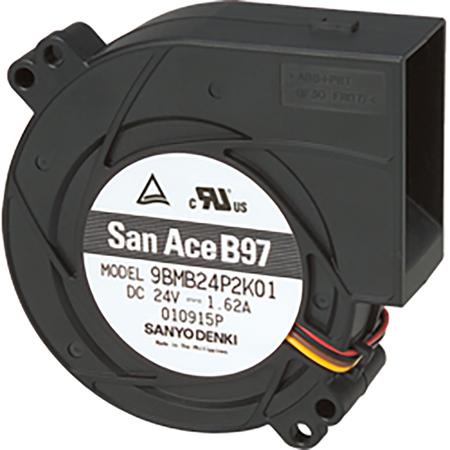

San Ace B97 Series Blower, 24 V dc, 43.1cfm, DC Operation, 97 x 97 x 33mm

Supply Voltage:

24 V dc

Blower Type:

Blower

AC or DC Operation:

DC

Air Flow:

43.1cfm

Series:

San Ace B97

Height:

97mm

Width:

97mm

Depth:

33mm

Dimensions:

97 x 97 x 33mm

Fan Speed:

5250rpm

Noise Level:

59dB(A)

Mounting Hole Spacing:

71 x 71mm

Static Pressure:

610Pa

Maximum Current:

700mA

Direction of Curve:

Backward

Mounting Hole Diameter:

4.5mm

Horizontal Hole Spacing:

71mm

Vertical Hole Spacing:

71mm

Inlet Diameter:

56mm

Sensor Type:

PWM

Special Features:

50/60 Hz, 500 VAC, for 1 Minute, Frame:Plastic (Flammability: UL 94V-0), Impeller:Plastic (Flammability: UL 94V-0), Locked Rotor Burnout Protection, Reverse Polarity Protection

Termination Type:

Lead Wire
