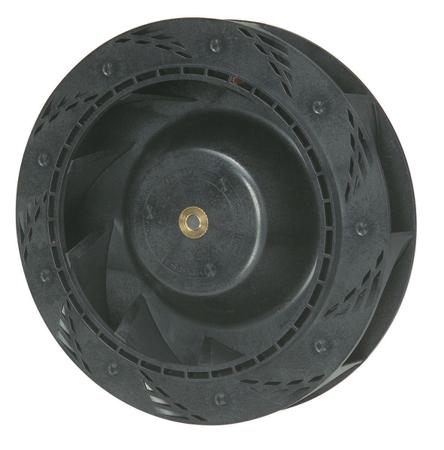

San Ace C150 Series Centrifugal Fan, 24 V dc, 135cfm, DC Operation, 150 x 150 x 35mm

Supply Voltage:

24 V dc

Blower Type:

Centrifugal

AC or DC Operation:

DC

Air Flow:

135cfm

Series:

San Ace C150

Height:

150mm

Width:

150mm

Depth:

35mm

Dimensions:

150 x 150 x 35mm

Fan Speed:

3800rpm

Noise Level:

59dB(A)

Mounting Hole Spacing:

64mm

Maximum Current:

620mA

Static Pressure:

410Pa

Direction of Curve:

Forward

Termination Type:

Lead Wire

Sensor Type:

PWM

Vertical Hole Spacing:

64mm

Horizontal Hole Spacing:

64mm

Mounting Hole Diameter:

4mm

Special Features:

50/60 Hz, 500 VAC, for 1 Minute, Impeller:Plastic (Flammability: UL 94V-0), Locked Rotor Burnout Protection, Motor Case:Aluminum (Black Coating), Reverse Polarity Protection

Inlet Diameter:

105mm

Outlet Diameter:

0
