SM500F Field Mountable Videographic Recorder

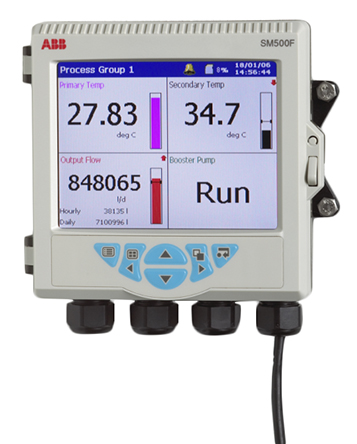

The SM500F is a field-mountable paperless recorder. Its unique enclosure design enables wall, pipe or panel mounting of the unit. Process data is displayed clearly to the local operator through various display formats, including chart, bar graph and digital indicator displays. Also, process data is logged securely to the removable SD memory card. Ethernet communications provide convenient remote monitoring of the process and access to logged data (742-6828 and 742-6822) only.

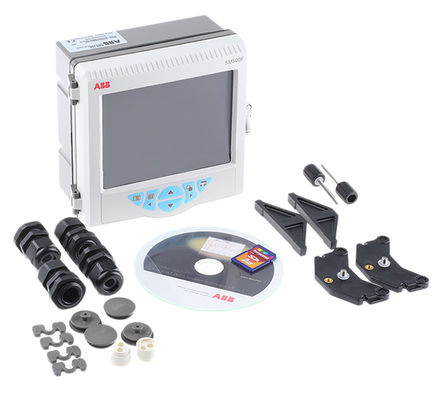

• Unique universal mounting capability
- Wall, pipe or panel-mount

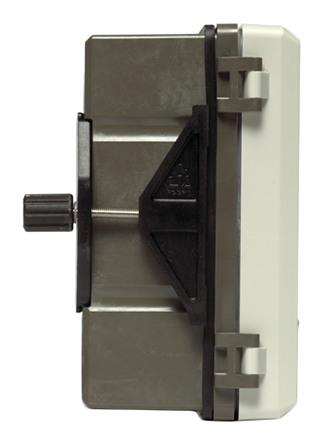

- Ultra-slim design, 90 mm (3.5 in) deep
• Secure data recording
- 64 MB internal Flash memory
- Archiving to SD memory card
• 21 CFR Part 11 compliant data security
- Extensive physical and electronic security features
• 12 software recording channels
- 21 CFR part 11 compliant
• Remote access and data retrieval
- Ethernet connectivity (742-6828 and 742-6822) only

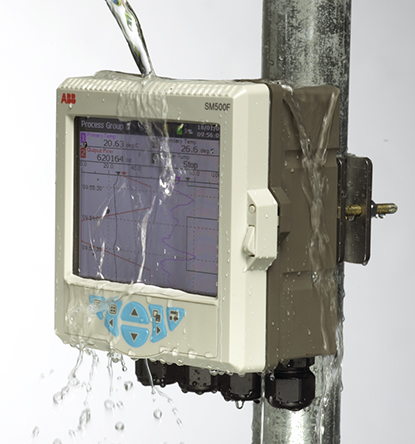

• Install into the harshest of process environments
- Protection to NEMA4X and IP66 standards
• Choice of displays
- Colour TFT or monochrome options
• Quick and easy setup
- Online help and Windows™-style menus
- Wall, pipe or panel-mount
- Ultra-slim design, 90 mm (3.5 in) deep
• Secure data recording
- 64 MB internal Flash memory
- Archiving to SD memory card
• 21 CFR Part 11 compliant data security
- Extensive physical and electronic security features
• 12 software recording channels
- 21 CFR part 11 compliant
• Remote access and data retrieval
- Ethernet connectivity (742-6828 and 742-6822) only
• Install into the harshest of process environments
- Protection to NEMA4X and IP66 standards
• Choice of displays
- Colour TFT or monochrome options
• Quick and easy setup
- Online help and Windows™-style menus
SM503FCB, 3 Input Channels, 4 Output Channels, Videographic Chart Recorder Measures Current, Resistance,
Manufacturer:
ABB
Manufacturer Part No:
SM503FC/B000010E/S
Enrgtech Part No:
ET13864629
Warranty:
Manufacturer
£ 1247.84
Checking for live stock
Chart Type:
Videographic
Number of Inputs:
3
Parameter Measured:
Current, Resistance, Temperature, Voltage
Maximum Temperature Measurement:
+1300 (K) °C, +1300 (N) °C, +1700 (R) °C, +1700 (S) °C, +1800 (B) °C, +300 (T) °C, +900 (E) °C, +900 (J) °C, +900 (L) °C
Number of Outputs:
4
Maximum Current Measurement:
50mA
Maximum Resistance Measurement:
550 ￫ 10000Ω
Maximum Operating Voltage:
265V ac
Recorder Input Type:
Digital, mA, mV, Resistance, RTD, Thermocouple, Voltage
Maximum Voltage Measurement:
25 V, 150 mV
Model Number p:
SM503FCB
IP Rating:
IP66
