Control Panel Primary 690Vac (63/2500VA)
Low inrush current control, safety isolating and isolating transformer
Screw type terminals, fitted with screw mounting brackets
Compact design with ±20V tappings on the primary winding
For use up to +40°C ambient maximum
Screw type terminals, fitted with screw mounting brackets
Compact design with ±20V tappings on the primary winding
For use up to +40°C ambient maximum

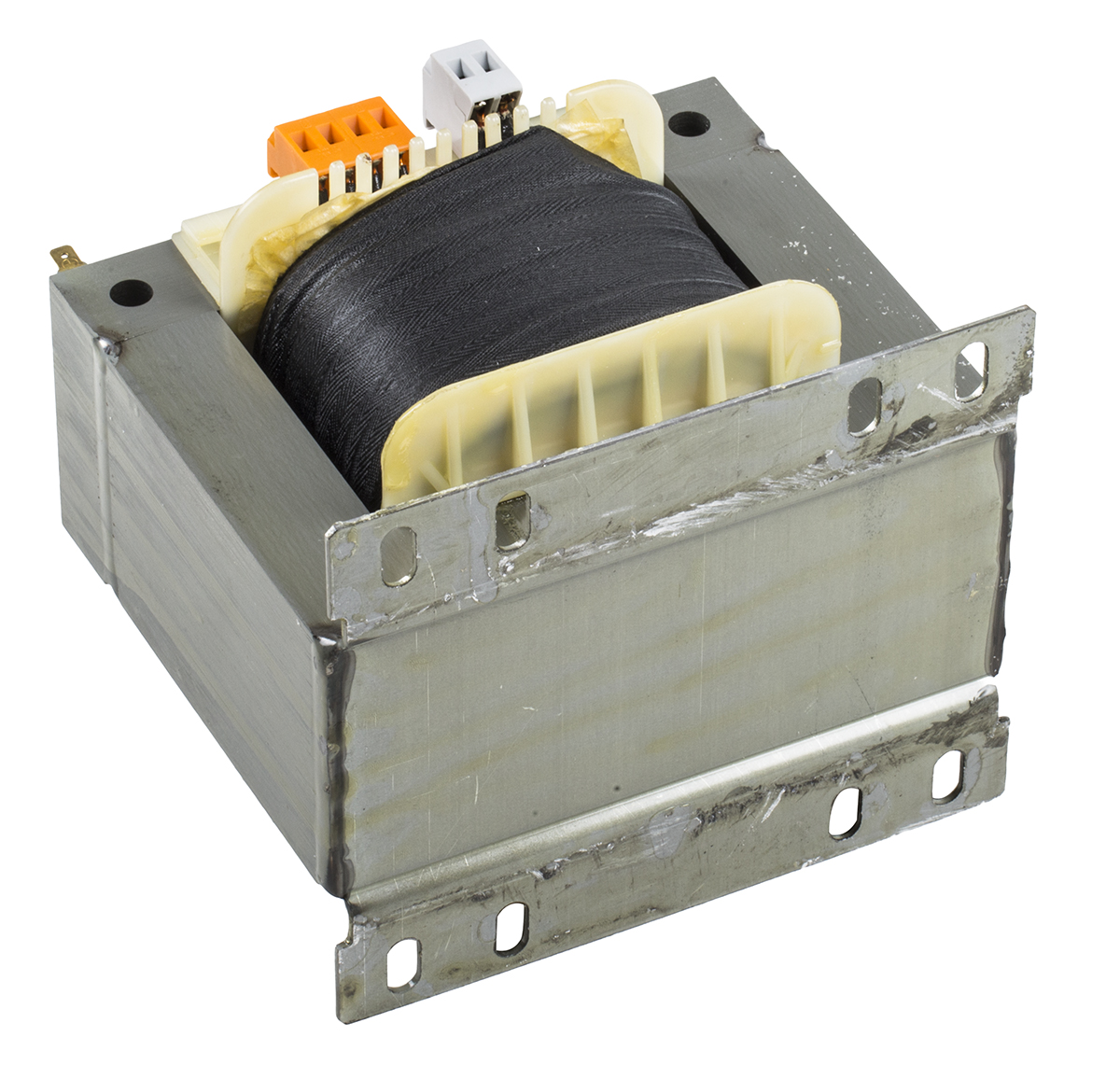

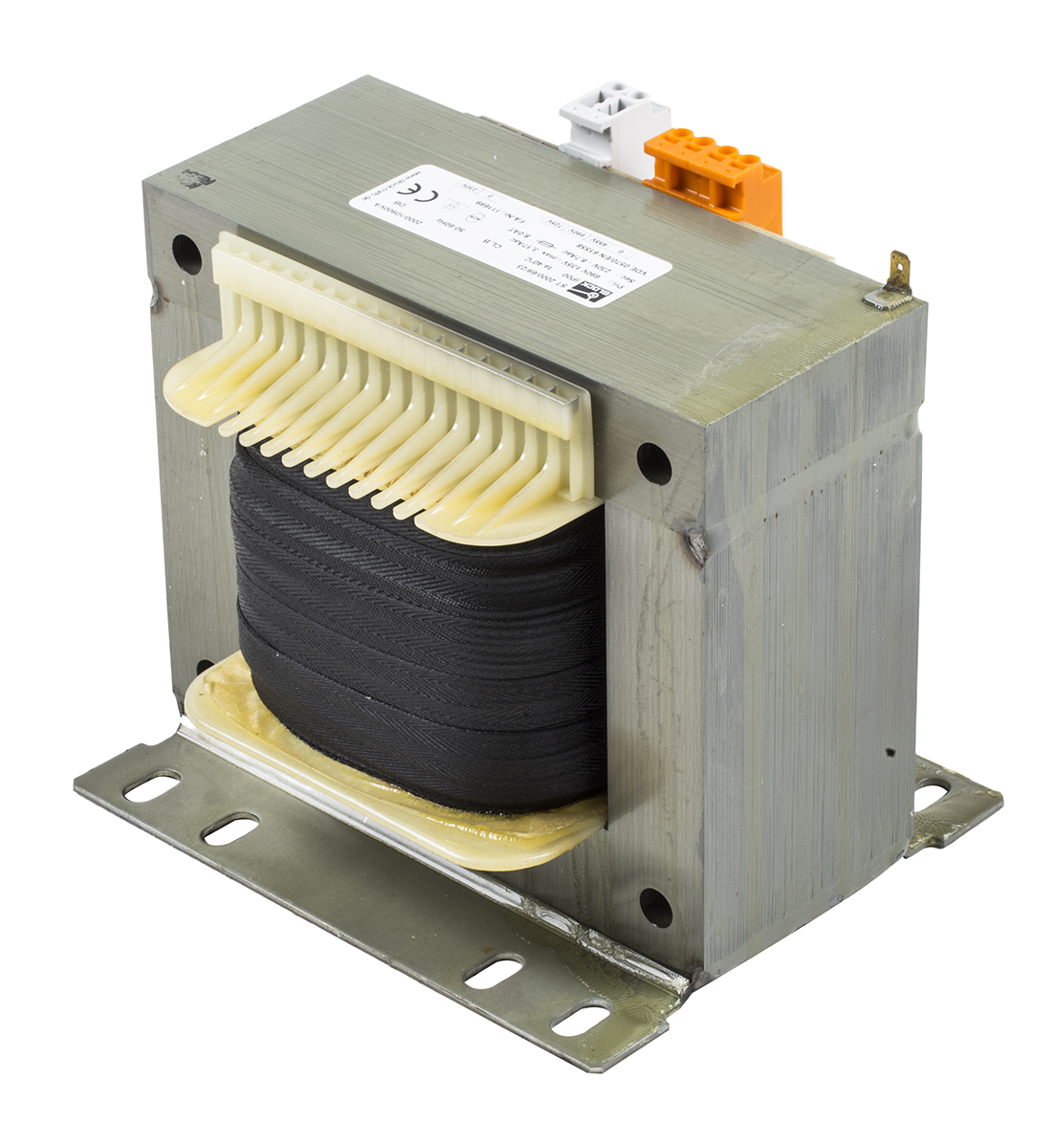

2kVA 1 Output Chassis Mounting Transformer, 230V ac
Manufacturer:
Block
Manufacturer Part No:
ST 2000/69/23
Enrgtech Part No:
ET13955643
Warranty:
Manufacturer
£ 515.32
Checking for live stock
Primary Voltage Rating:
690V ac
Secondary Voltage Rating:
230V ac
Power Rating:
2kVA
Number of Outputs:
1
Mounting Type:
Chassis
Length:
192mm
Width:
192mm
Depth:
162mm
Dimensions:
192 x 182 x 162mm
Weight:
21kg
Minimum Operating Frequency:
50Hz
Maximum Operating Frequency:
60Hz
