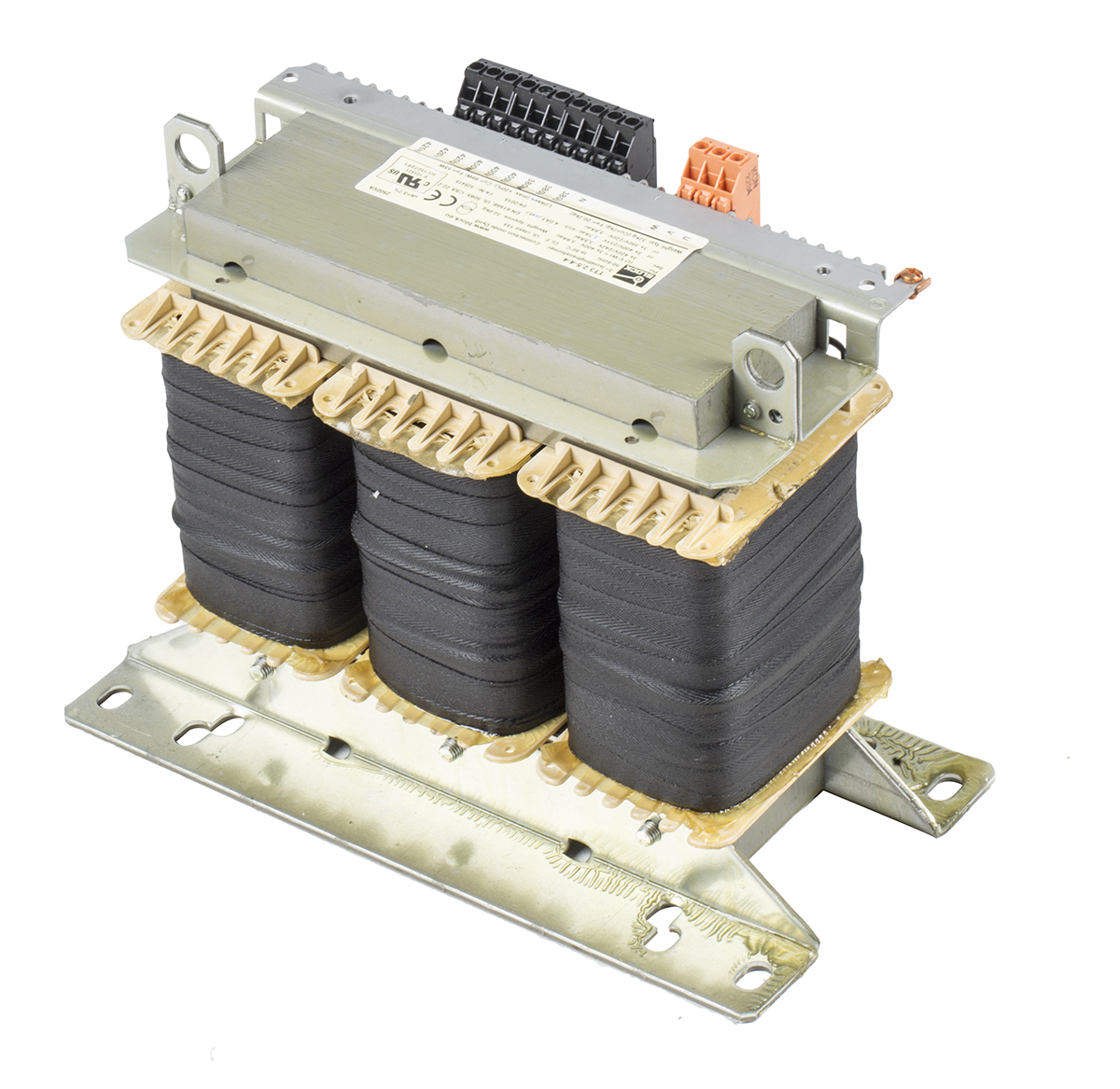

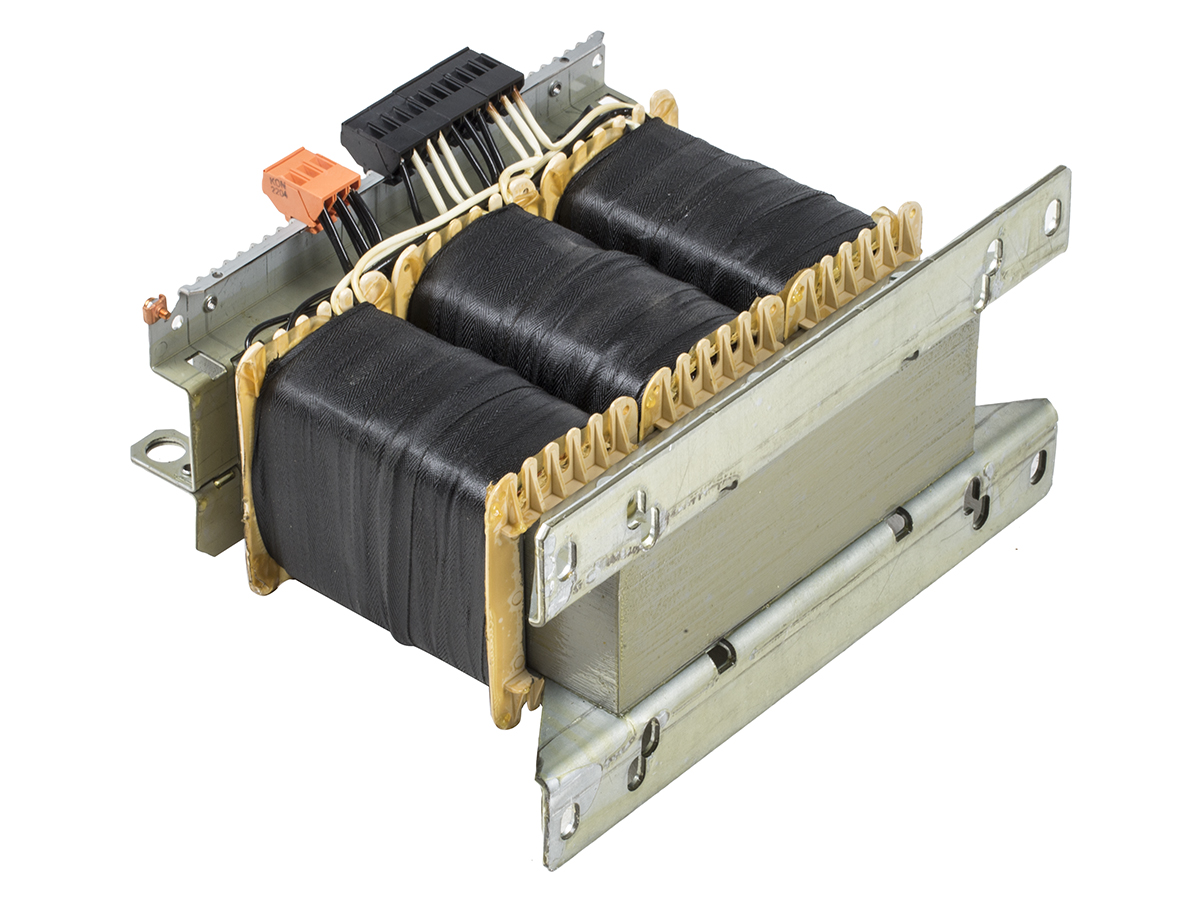

TT3 Series Transformers
Brought to you by Block, the TT3 series of 3 phase transformers are highly efficient and feature low heat loss. Fitted with easy-to-install mounting holes, the TT3 series transformers also feature screw terminal connections and integrated lifting eyes.
Features and Benefits:
• Safe electrical isolation 400V 3 phase input
• + and - 5% tappings on the secondary windings
• BLOCKIMPEX vacuum impregnation
• + and - 5% tappings on the secondary windings
• BLOCKIMPEX vacuum impregnation
2.5kVA Chassis Mounting Transformer, 3 x 400V ac
Manufacturer:
Block
Manufacturer Part No:
TT3 2,5-4-4
Enrgtech Part No:
ET14063310
Warranty:
Manufacturer
£ 844.32
Checking for live stock
Primary Voltage Rating:
3 x 400V ac
Secondary Voltage Rating:
3 x 400V ac
Power Rating:
2.5kVA
Length:
315mm
Width:
315mm
Depth:
165mm
Dimensions:
315 x 250 x 165mm
Weight:
32kg
Minimum Operating Frequency:
50Hz
Maximum Operating Frequency:
60Hz
Maximum Temperature:
+50°C
3D Model:
https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=22467&DisplayLogo=False
