Universal Input Control Transformer 208 to 600Vac Universal input transformers are designed for worldwide usage and fulfill the requirements for control safety isolating and isolating transformers suitable for DIN Rail mounting (to 250VA) or footplate mounting (all types) and the use of cage clamp terminals makes installation an easy task Input voltages 208V, 230V, 380V, 400V, 415V, 440V, 460V, 480V, 500V, 525V, 550V, 575V, 600V provide a large range of output current Vacuum resin impregnation Construction Class 1 Operating temperature +40°C Maximum Ambient Insulation category Class B Approvals VDE, UL recognised, CUL Approvals 8888

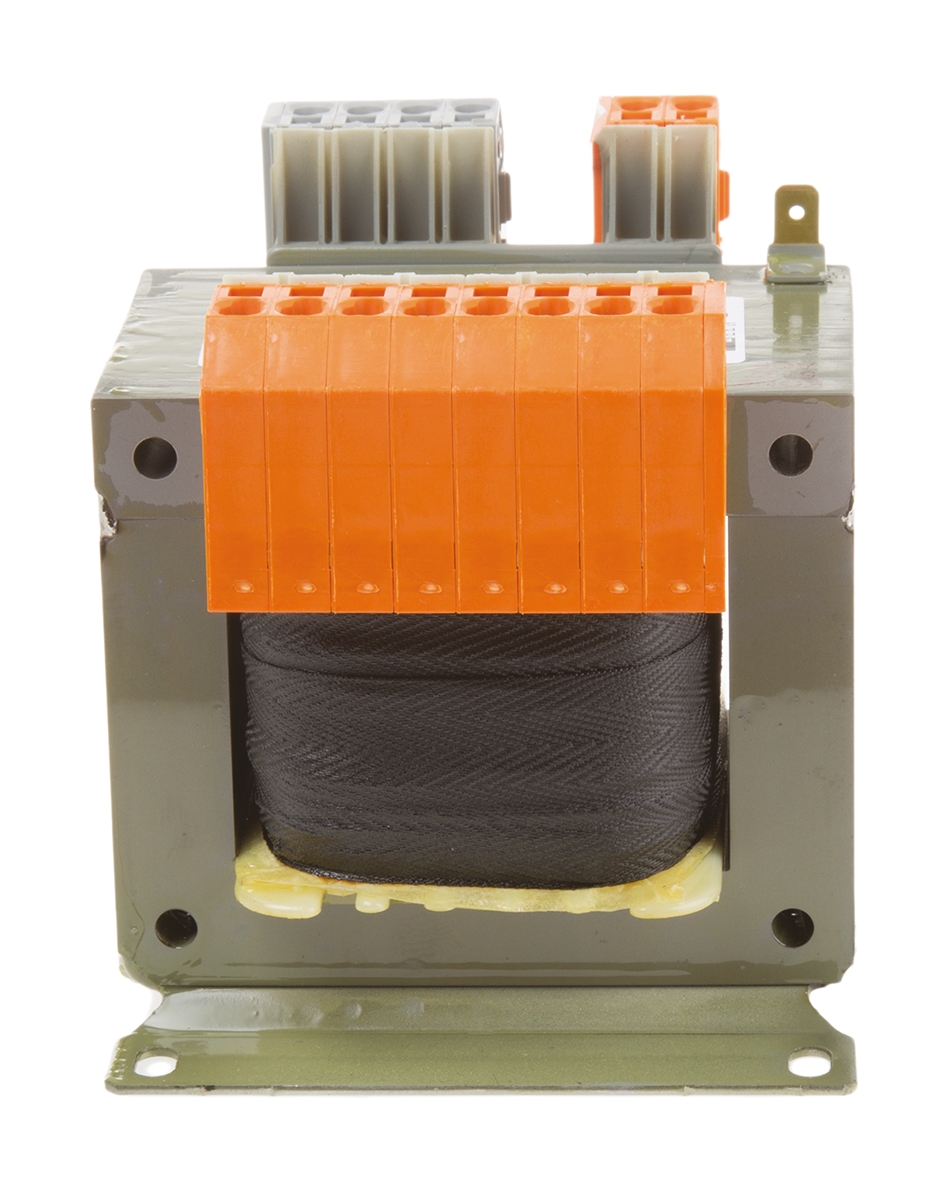

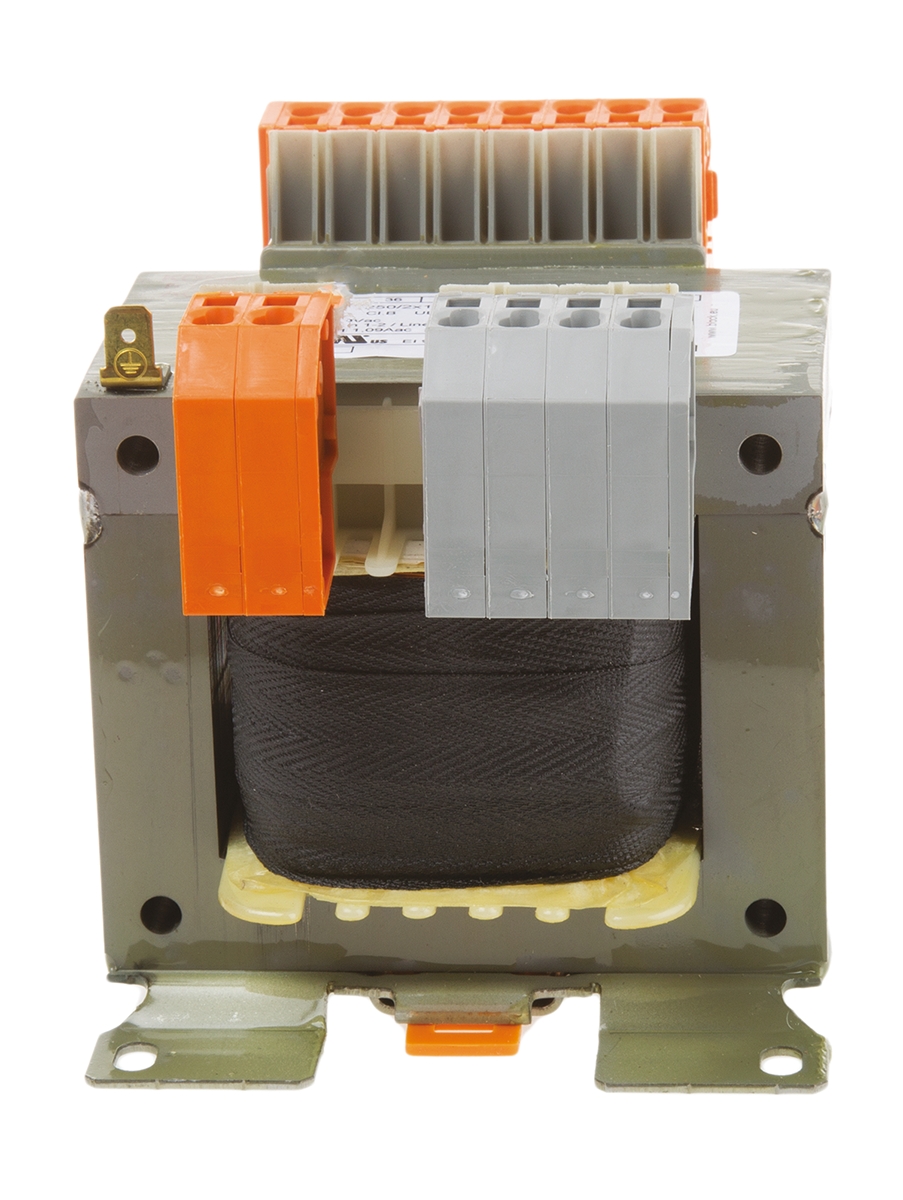

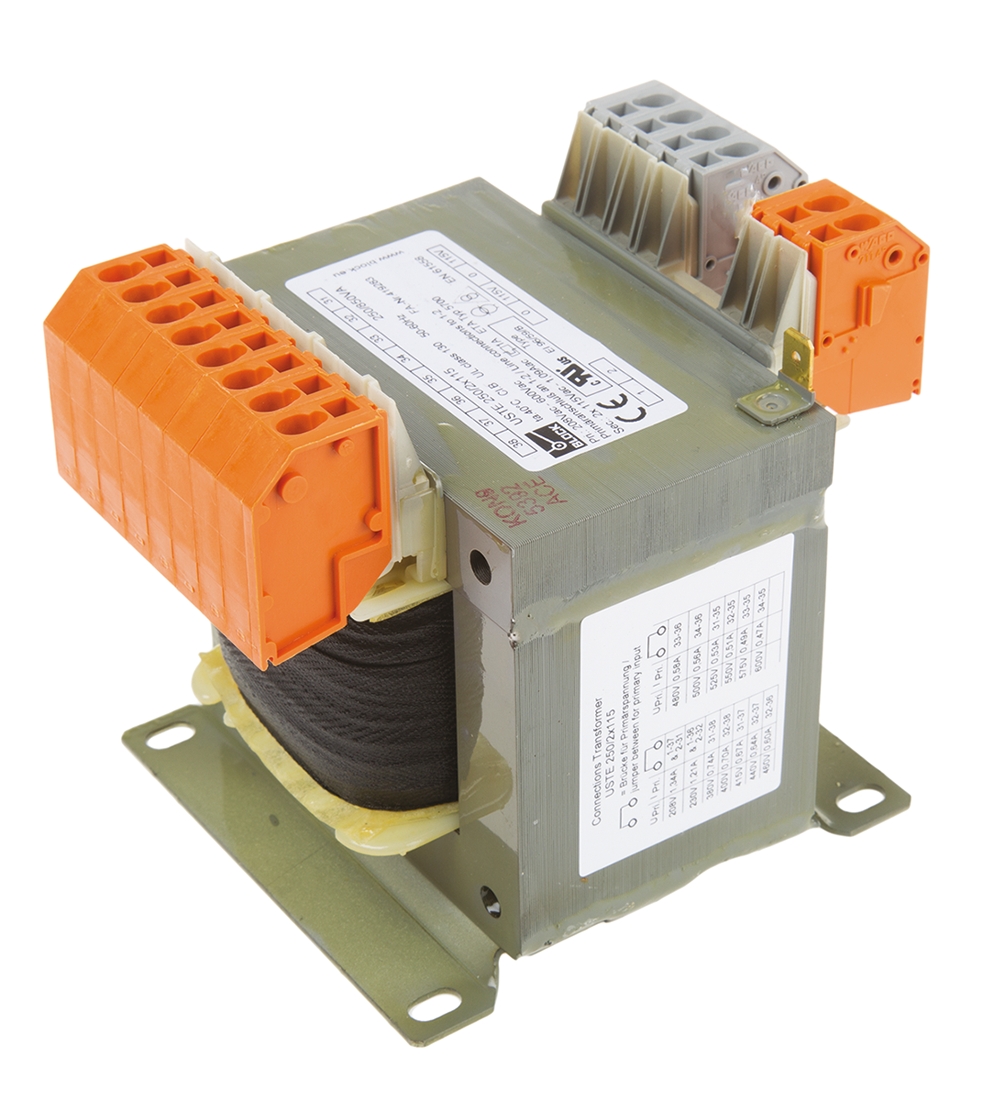

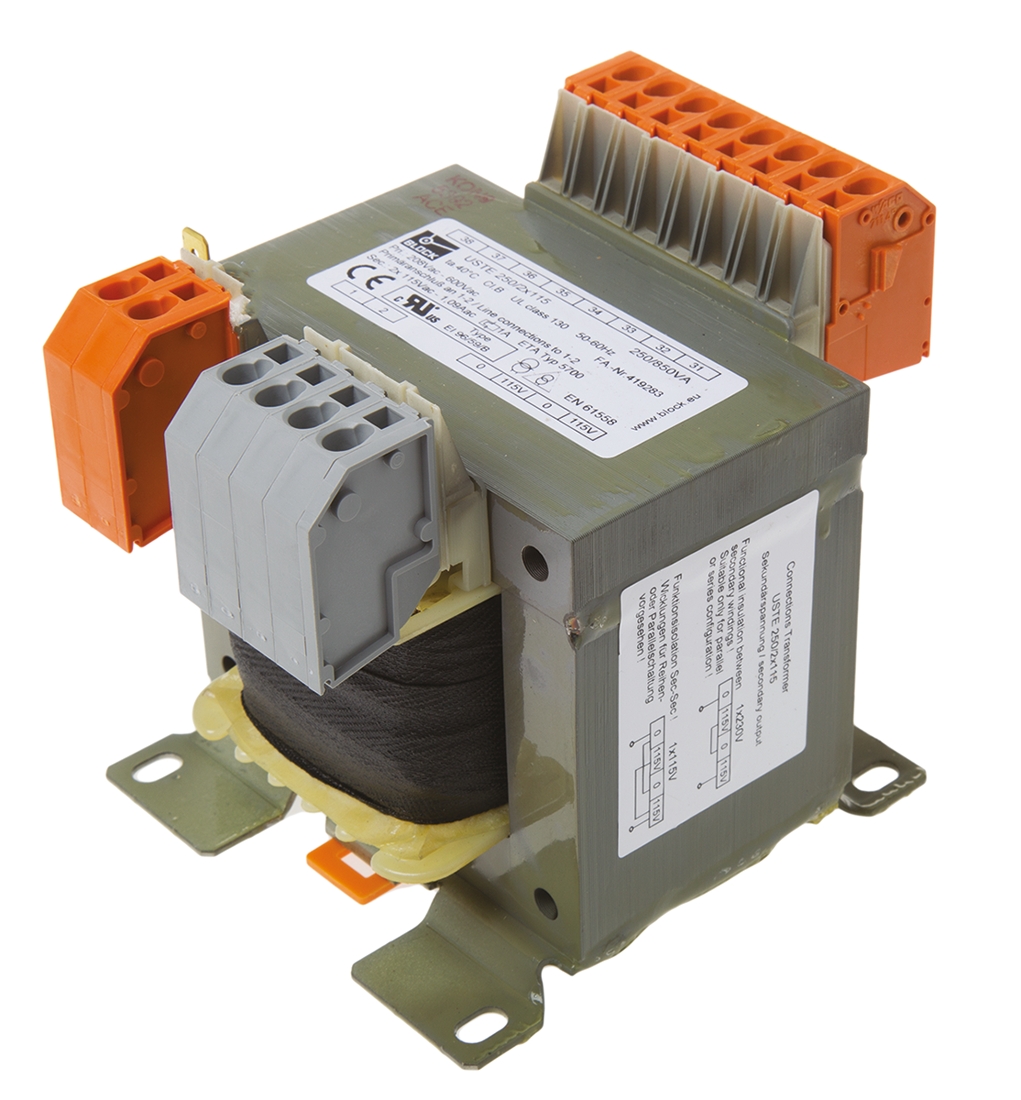

Block USTE250/2X115, 250VA DIN Rail Panel Mount Transformer

Manufacturer:
Manufacturer Part No:
USTE250/2X115
Enrgtech Part No:
ET14112372
Warranty:
Manufacturer
£ 76.65
Checking for live stock
Number of Outputs:
2
Maximum Temperature:
+40°C
Dimensions:
96 x 104 x 102mm
Weight:
3.6kg
Primary Voltage Rating:
208 V ac, 230 V ac, 380 V ac, 400 V ac, 415 V ac, 440 V ac, 460 V ac, 480 V ac, 500 V ac, 525 V ac, 550 V ac, 575 V ac, 600V ac
Length:
104mm
Maximum Operating Frequency:
60Hz
Width:
96mm
Depth:
102mm
Secondary Voltage Rating:
2 x 115V ac
Minimum Operating Frequency:
50Hz
Power Rating:
250VA
pdf icon
USTE 250/2x115 Universal Control and Safety Isolating- resp. Isolating Transformer Data Sheet(Technical Reference)
pdf icon
Connection s/c and Overload Protection Settings(Technical Reference)
pdf icon
Transformator USTE(Technical Reference)
