Safety Isolating Transformer
Safety isolating and isolating control transformers
Twin secondary winding for series or parallel connection
63,100,160 and 250VA transformers can be mounted on standard 35mm DIN rail
All units have 4 hole panel mount fixings
Easy installation 4mm² cage clamp terminals
Insulation catagory Class B Primary connections 0V, -15V, +15V, 230V, 400V. The + 15 and -15V allows you to offset the primary Voltage by 15V
Low inrush current
High efficiency, low regulation
Twin secondary winding for series or parallel connection
63,100,160 and 250VA transformers can be mounted on standard 35mm DIN rail
All units have 4 hole panel mount fixings
Easy installation 4mm² cage clamp terminals
Insulation catagory Class B Primary connections 0V, -15V, +15V, 230V, 400V. The + 15 and -15V allows you to offset the primary Voltage by 15V
Low inrush current
High efficiency, low regulation

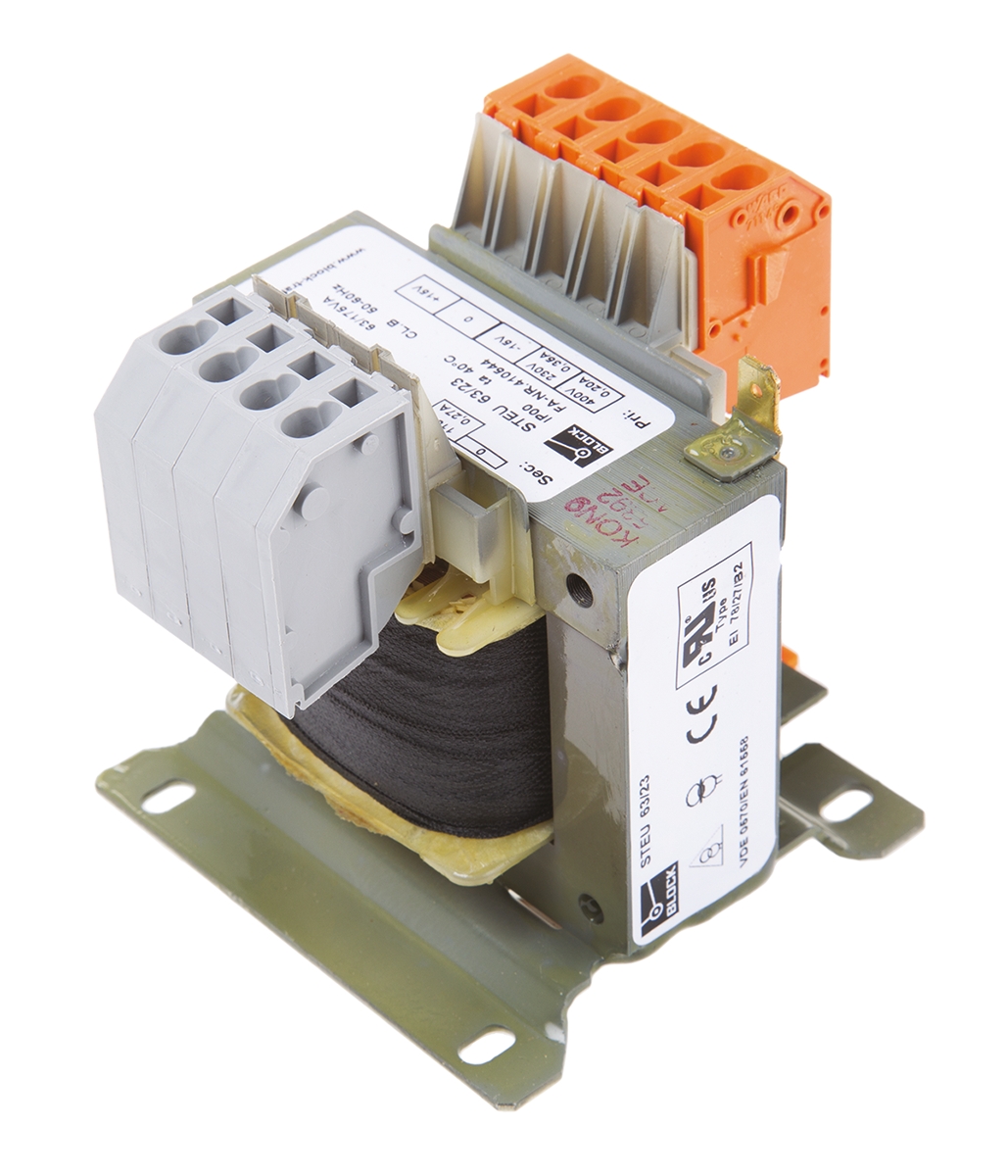

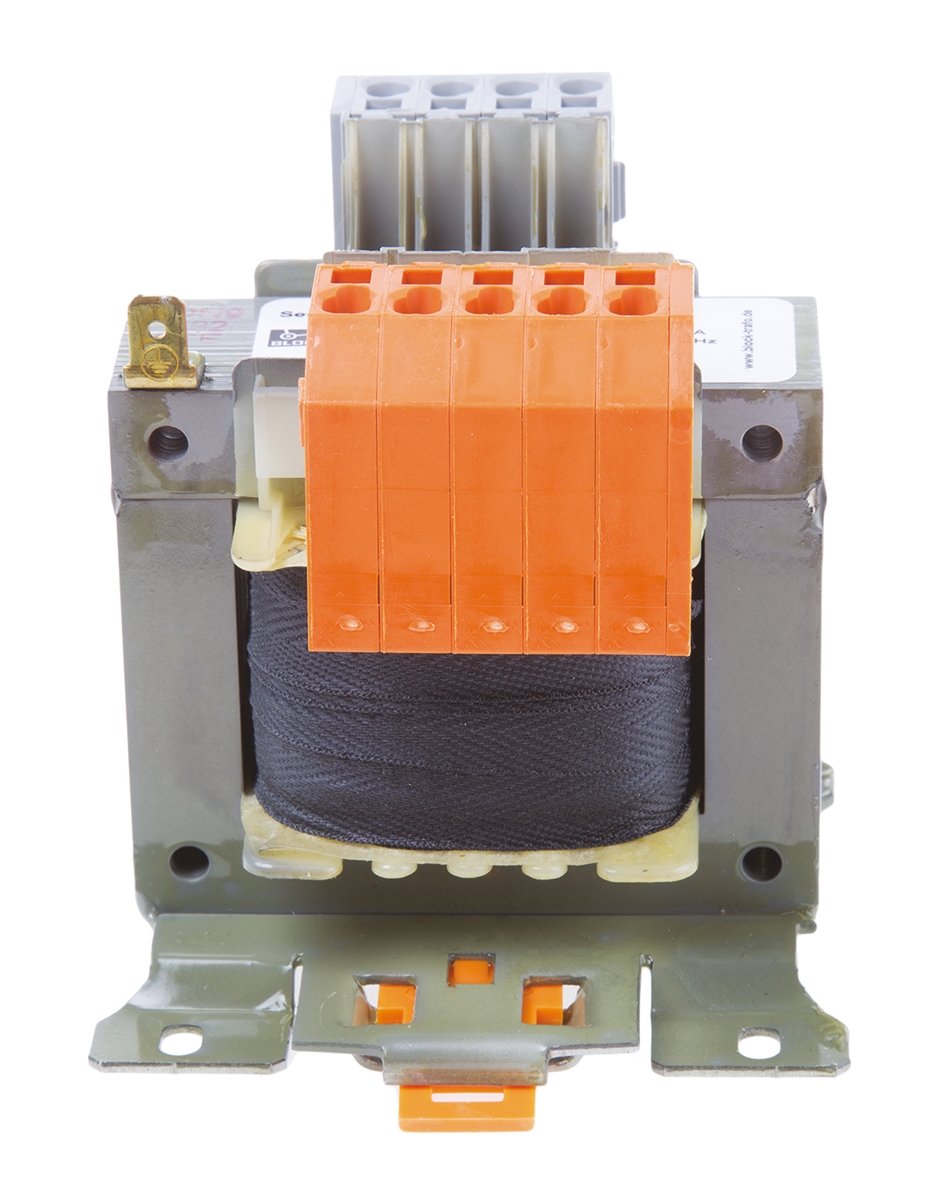

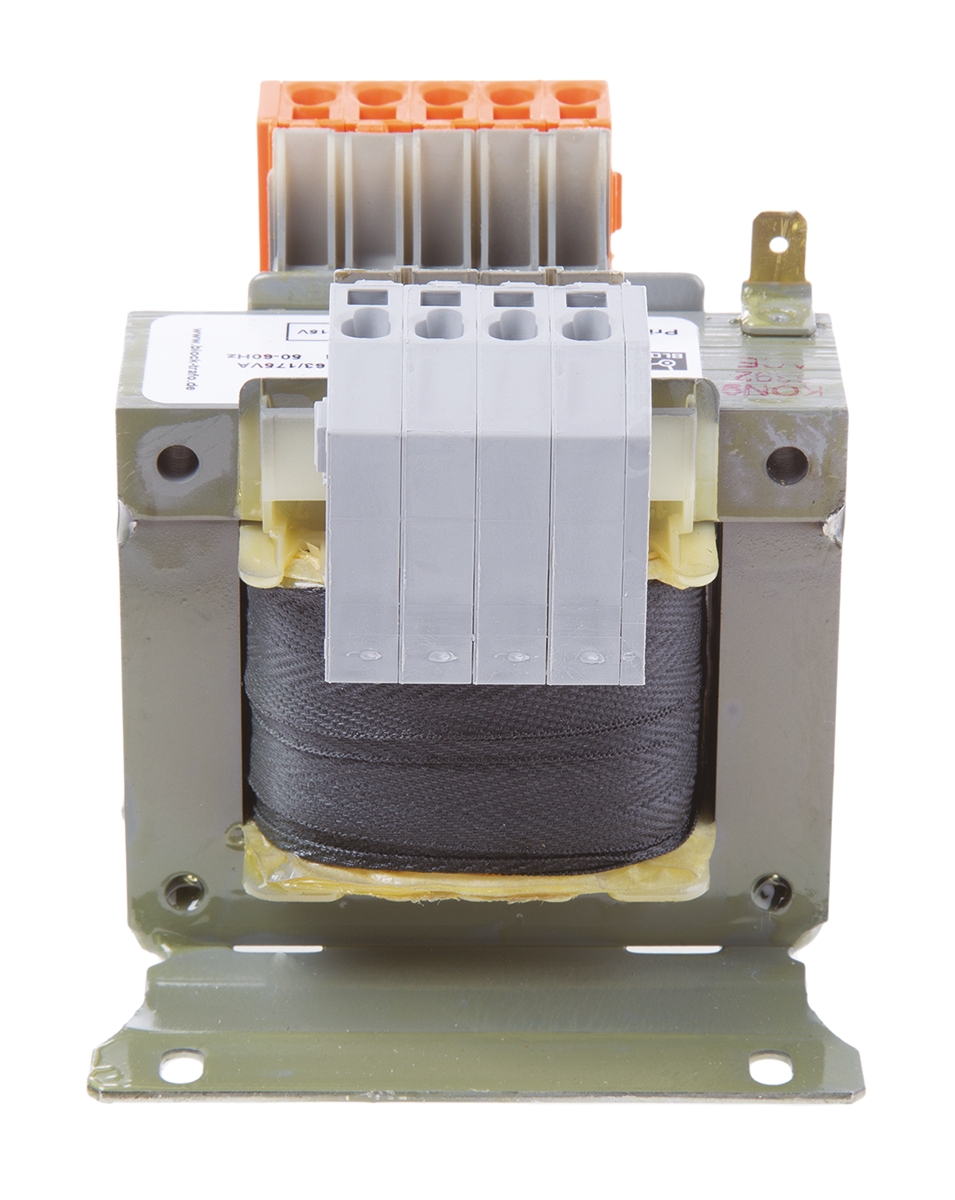

63VA 2 Output Chassis Mounting Transformer, 2 x 115V ac
Manufacturer:
Block
Manufacturer Part No:
STEU63/23
Enrgtech Part No:
ET16767304
Warranty:
Manufacturer
£ 72.66
Checking for live stock
Primary Voltage Rating:
230/400V ac
Secondary Voltage Rating:
2 x 115V ac
Power Rating:
63VA
Number of Outputs:
2
Mounting Type:
DIN Rail, Panel
Length:
78mm
Width:
84mm
Depth:
85mm
Dimensions:
84 x 88 x 85mm
Weight:
1.3kg
Minimum Operating Frequency:
50Hz
Maximum Operating Frequency:
60Hz
