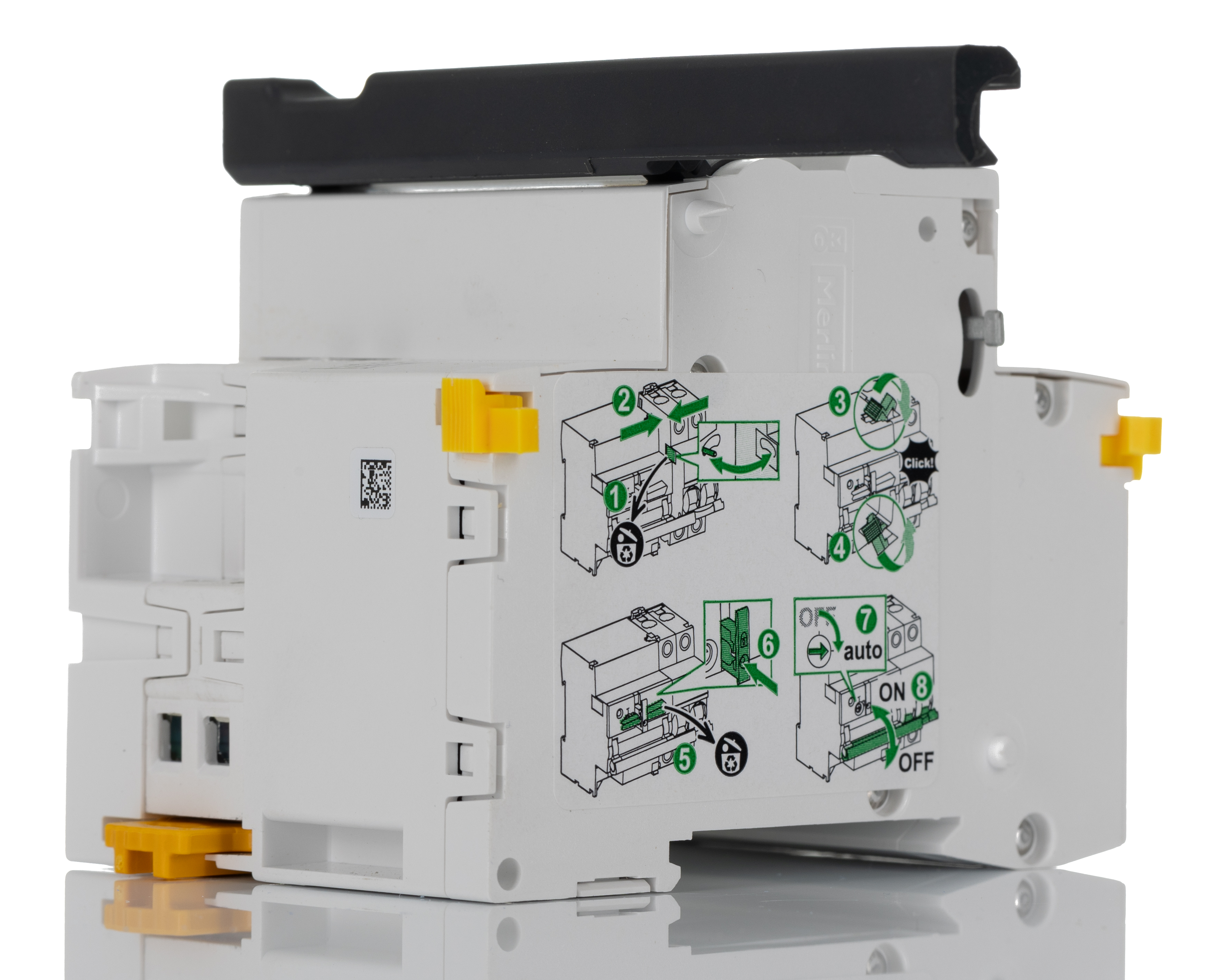

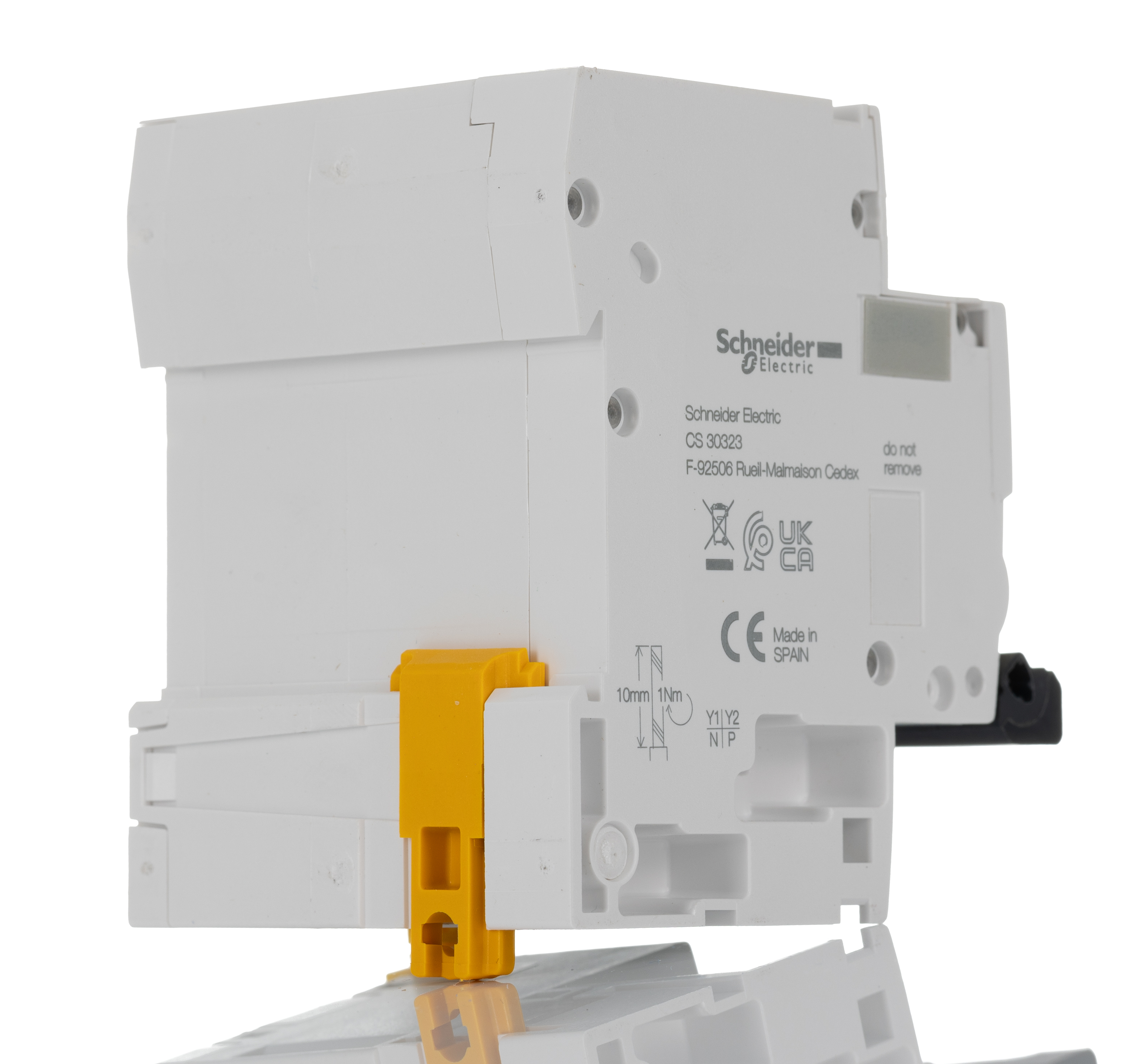

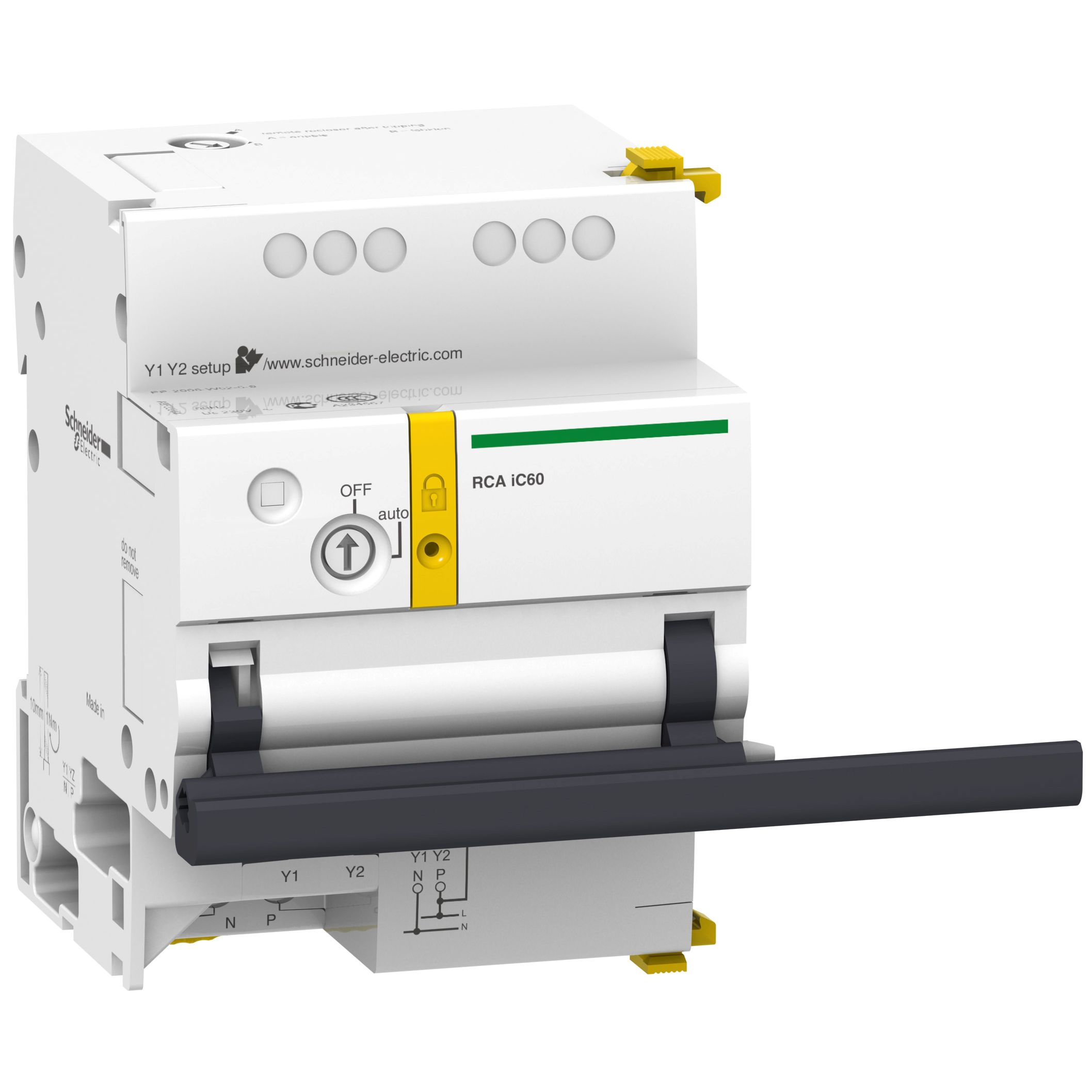

Acti9 ARA iC60 Remote Auxiliary The Automatic Recloser Auxiliary (ARA) performs automatic reclosing of the associated protection device after tripping, avoiding service interruptions.
This range of Acti9 ARA auto reclosers increase the availability of installations without supervision, isolated, hard of
access and demanding very great availability reducing maintenance costs.
Acti 9 ARA automatically recloses and re-energizes the circuit after a momentary outage, at intervals predetermined by the users.
In a permanent fault case, the ARA locks open after user preset number of operations, safely isolating the section from the system. Programme selector: Four predefined and easy-to-set programmes on front face
Status indicator in the front face for quick status check
Integrated padlocking device
Manual on-site inhibition for maintenance
Bistable operation
Auto/OFF selector
Two remote control inputs
