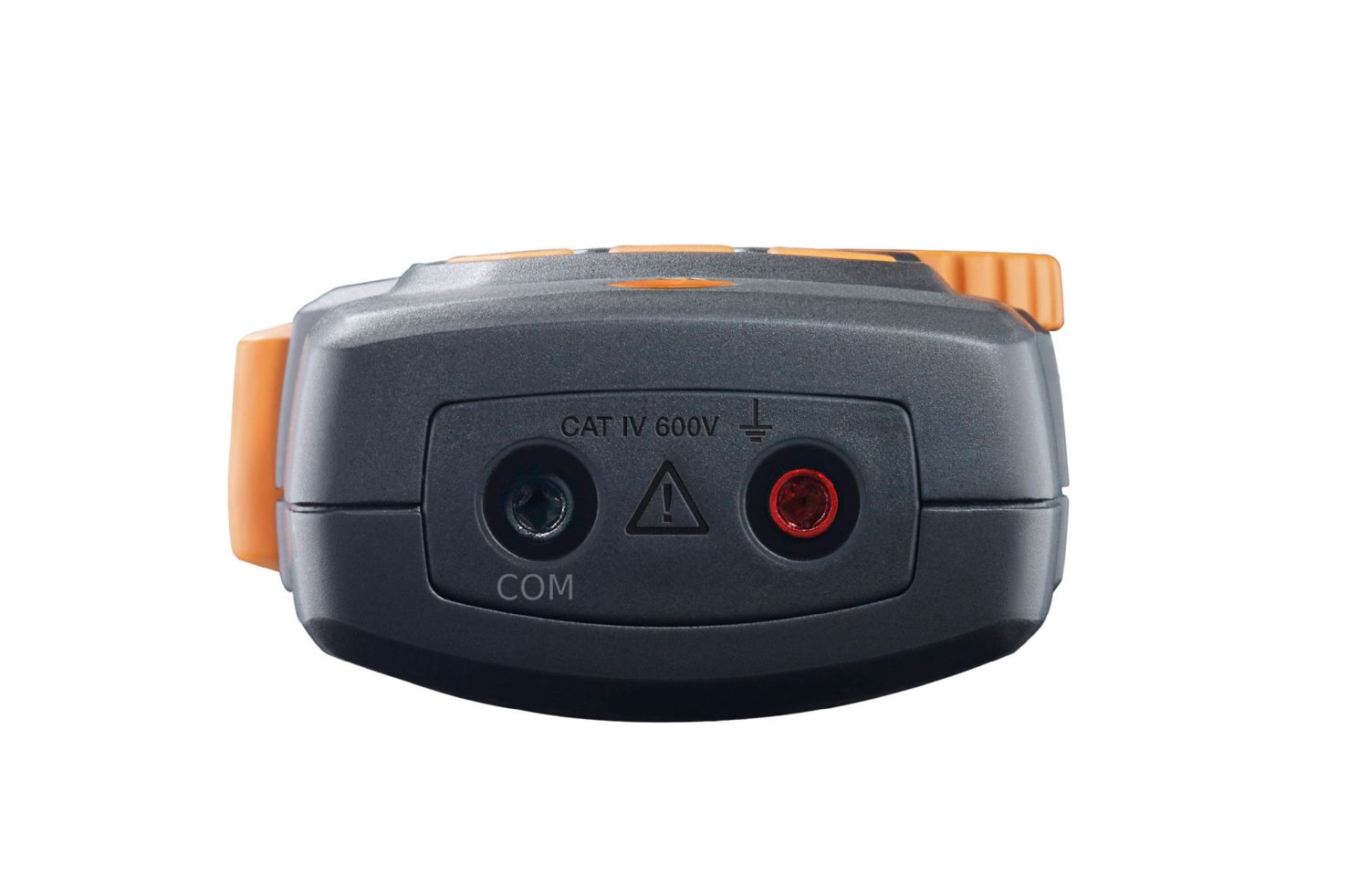

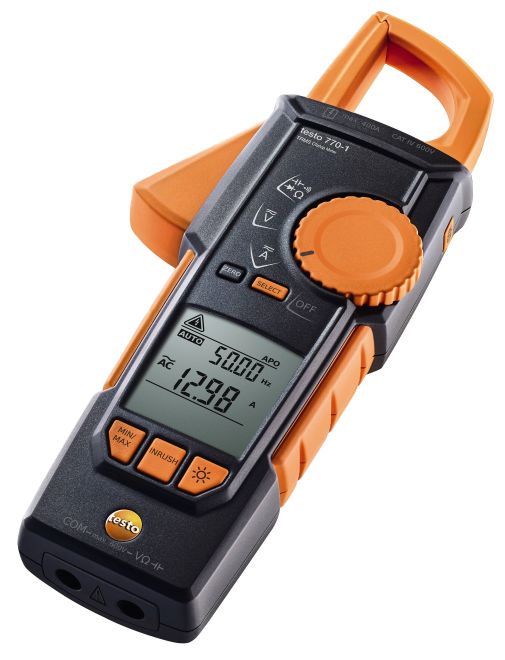

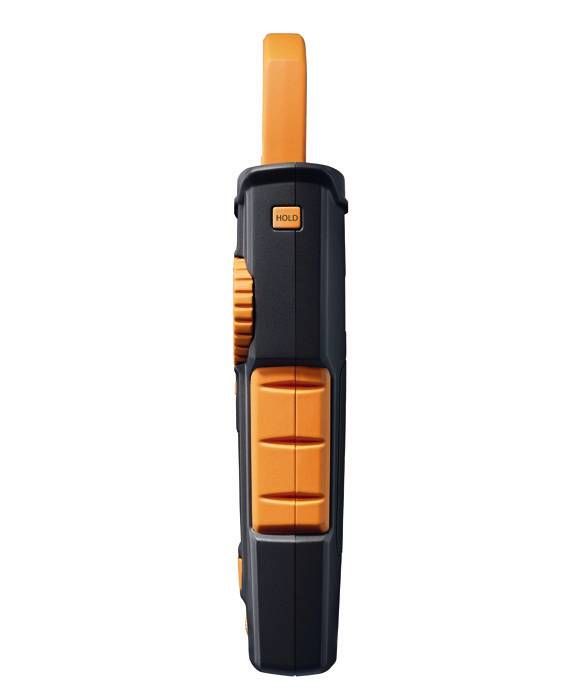

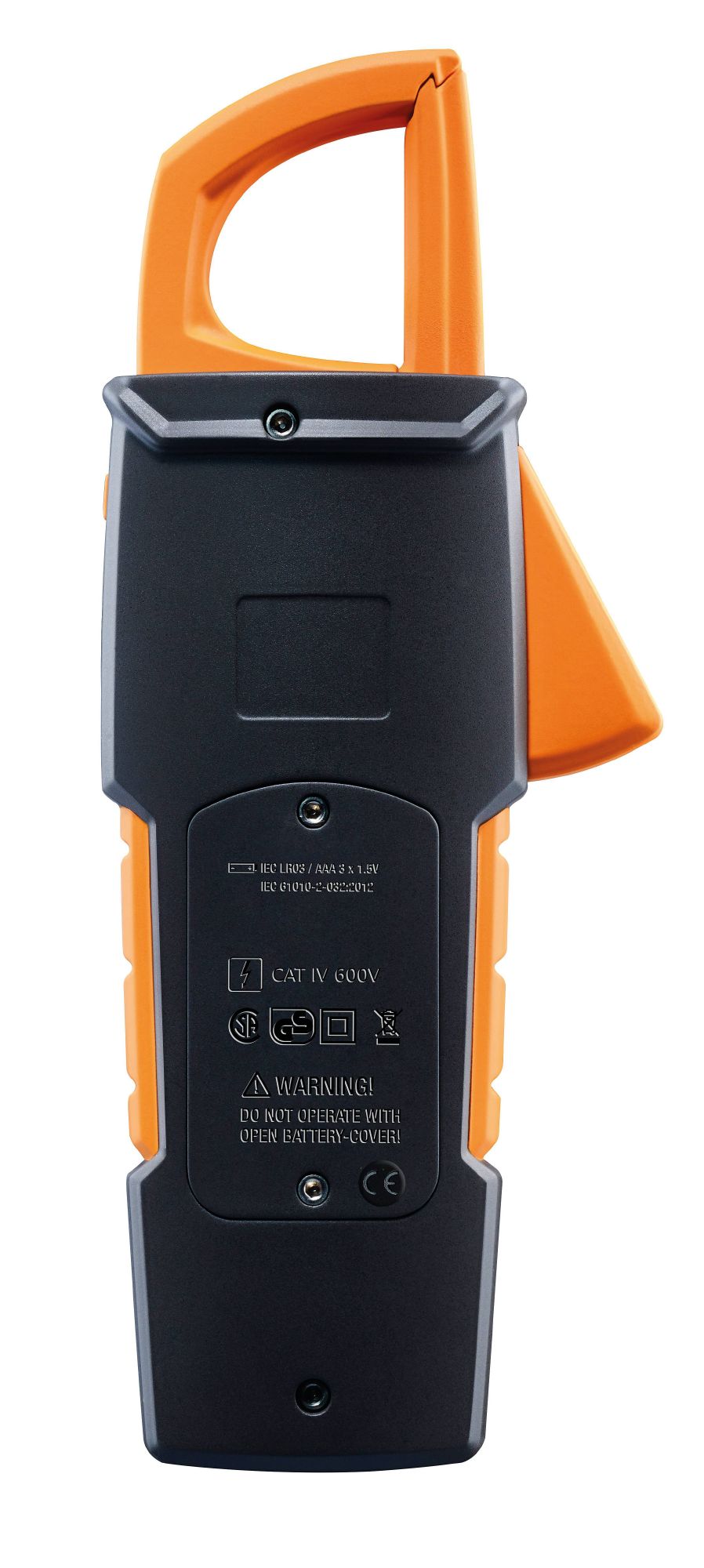

770-1 Clamp Meter, 400A dc, Max Current 400A ac CAT III 1000V

Absolute Maximum AC Current Measurement:

400A ac

Absolute Maximum DC Current Measurement:

400A dc

Absolute Maximum AC Voltage Measurement:

600V ac

Absolute Maximum DC Voltage Measurement:

600V dc

Absolute Maximum Resistance Measurement:

40MΩ

Model Number:

770-1

AC Current Measurement Resolution:

100mA

DC Current Measurement Resolution:

100mA

Best DC Current Accuracy:

±(2% rdg + 5dgts)

Clamp Meter Type:

AC/DC Clamp Meter

Best AC Current Accuracy:

±(2% rdg + 5dgts)

Best AC Voltage Accuracy:

±(1% rdg + 3dgts)

Functions Measured:

AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance

Best DC Voltage Accuracy:

±(0.8% rdg + 3dgts)

True RMS:

Yes

AC Voltage Measurement Range:

0.001 → 600 V

Weight:

302g

Safety Category Level:

CAT III, CAT IV

AC Current Measurement Range:

0.1 → 400 A

AC Voltage Measurement Resolution:

1mV

Height:

43mm

Minimum Operating Temperature:

-10°C

Maximum Operating Temperature:

+50°C

Display Type:

LCD

Safety Category:

CAT III 1000 V, CAT IV 600V

Battery Type:

AAA

Safety Category Voltage:

600 V, 1000V

Dimensions:

243 x 96 x 43mm

DC Current Measurement Range:

0.1 → 400 A

Resistance Measurement Resolution:

100mΩ

Length:

243mm

Width:

96mm

Power Source:

Battery

DC Voltage Measurement Resolution:

1mV
