Series:

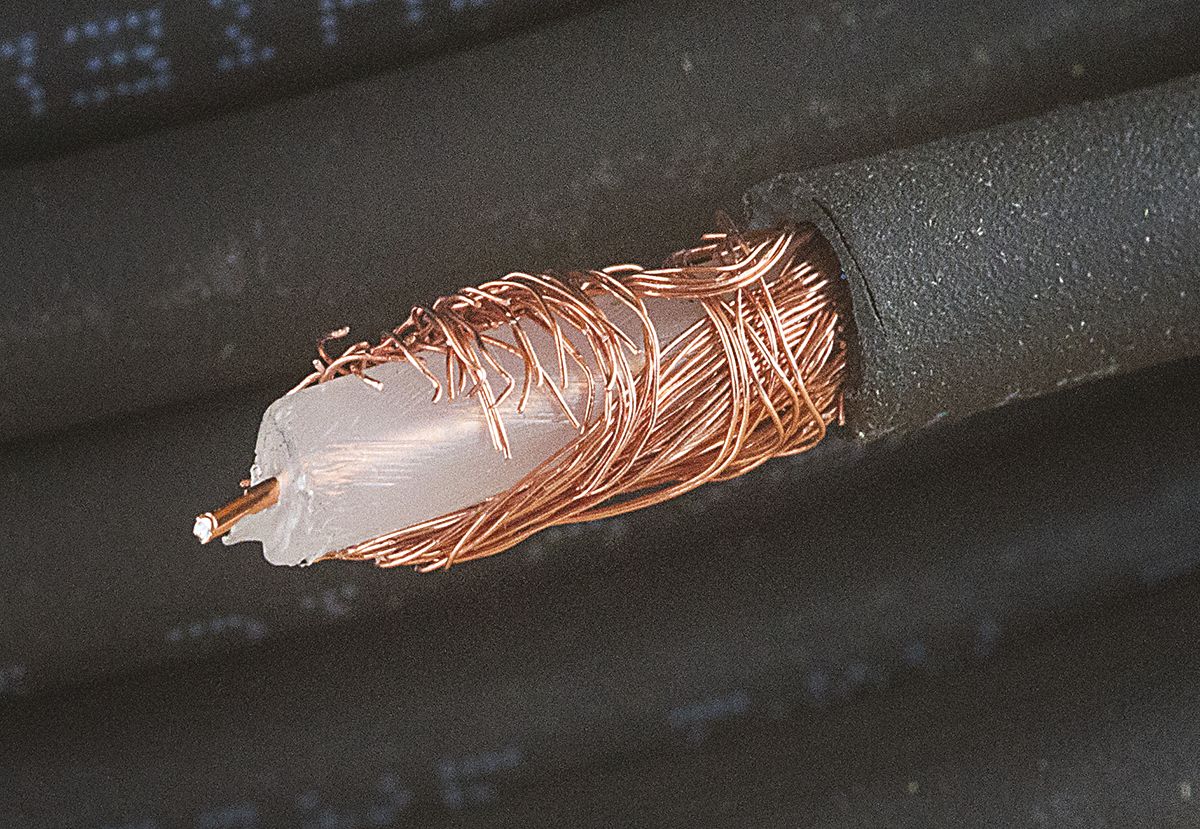

Alpha Essentials Coaxial Cable
Coaxial Type:
RG59B/U
Core Strands:
1
Product Type:
Coaxial Cable
Fire Behaviour:
Low Smoke Zero Halogen, Flame Retardant to IEC 60332-1-2, Low Flammability, Flame resistance to UL1581 VW-1 and IEC60332-1
Outside Diameter:
6.15mm
Conductor Material:
Bare Copper
Standards/Approvals:
DIN 47100, DEF STAN 61-12 Part 6, IEC 60228 Css 5, UL1581 VW-1, REACH, VD0281-5, UL, CENELEC HD21.5, BS4808, IEC 60227-5, ISO9001, RoHS, HAR, BASEC, IEC60332-1, TS 9760 HD 21.5.S3, VD2050, BS4109, BS EN13062
Terminated/Unterminated:
Unterminated
Characteristic Impedance:
75Ω
Maximum Operating Temperature:
60°C
Minimum Operating Temperature:
-20°C
