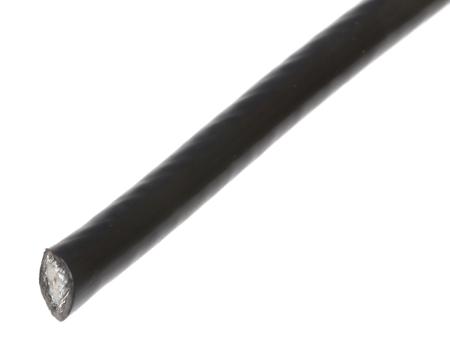

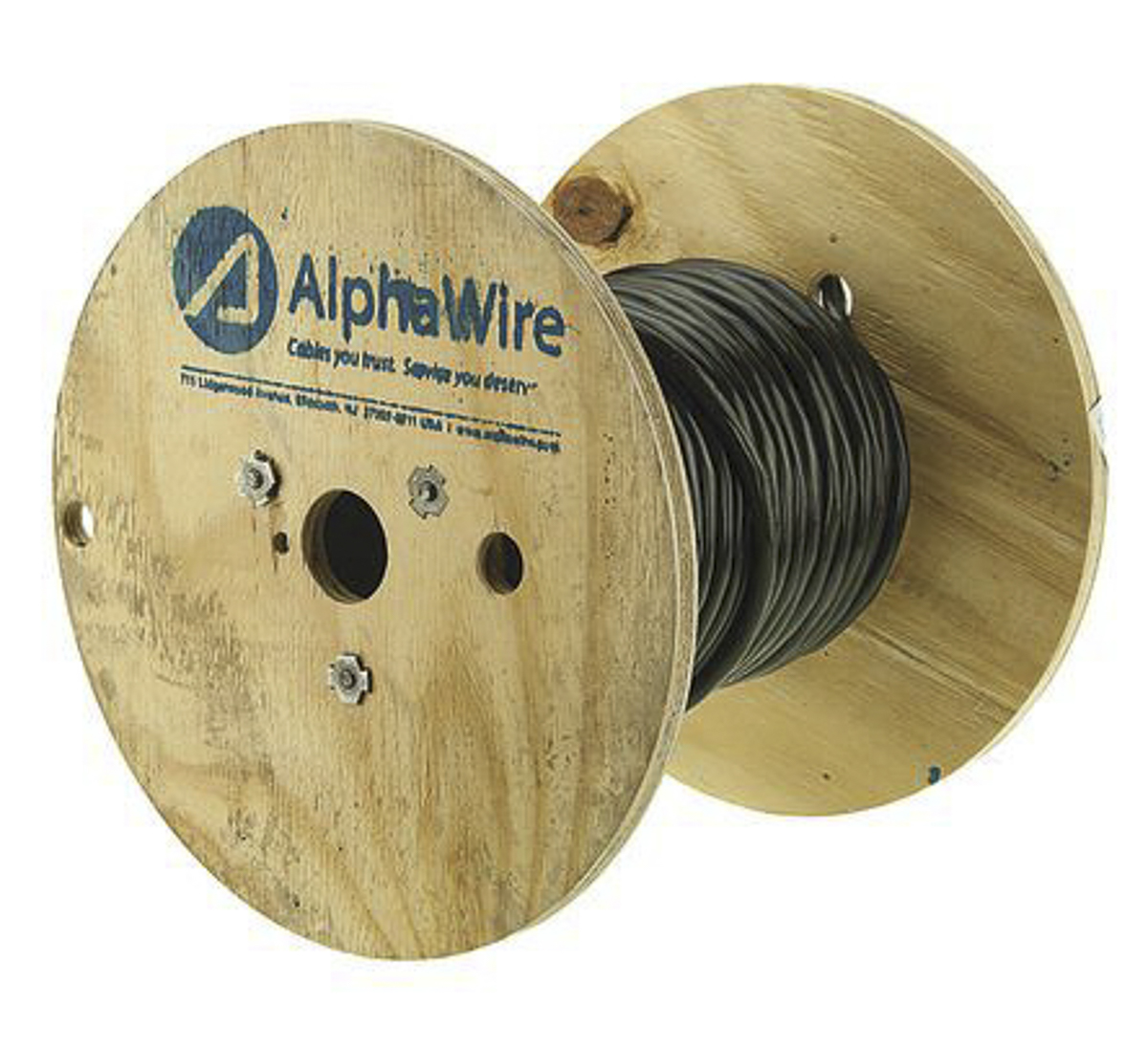

Alpha Essentials Data & Bus Cable Series, 30m, RG6/U Coaxial, Unterminated75 Ω

Terminated/Unterminated:

Unterminated

Coaxial Type:

RG6/U

Outer Diameter:

7.57mm

Characteristic Impedance:

75 Ω

Attenuation:

1.1 dB/100m @ 1MHz, 1.2 dB/100m @ 2MHz, 1.5 dB/100m @ 5MHz, 1.9 dB/100m @ 10MHz, 11.4 dB/100m @ 300MHz, 13.3 dB/100m @ 400MHz, 2.8 dB/100m @ 20MHz, 4.5 dB/100m @ 50MHz, 6.5 dB/100m @ 100MHz, 9.3 dB/100m @ 200MHz

Length:

30m

Sheath Colour:

Black

Conductor Strand Type:

Solid

Standards Met:

CE, CSA, UL

Minimum Operating Temperature:

-30°C

Velocity ratio:

82%

Insulation Material:

Foam PE

Sheath Material:

Polyvinyl Chloride PVC

Maximum Operating Temperature:

+75°C

Conductor Material:

Bare Copper

Capacitance:

53.1pF/m

Series:

Alpha Essentials Data & Bus Cable

Operating Temperature Range:

-30 → +75 °C

Shielding:

Foil/Braid Shield
