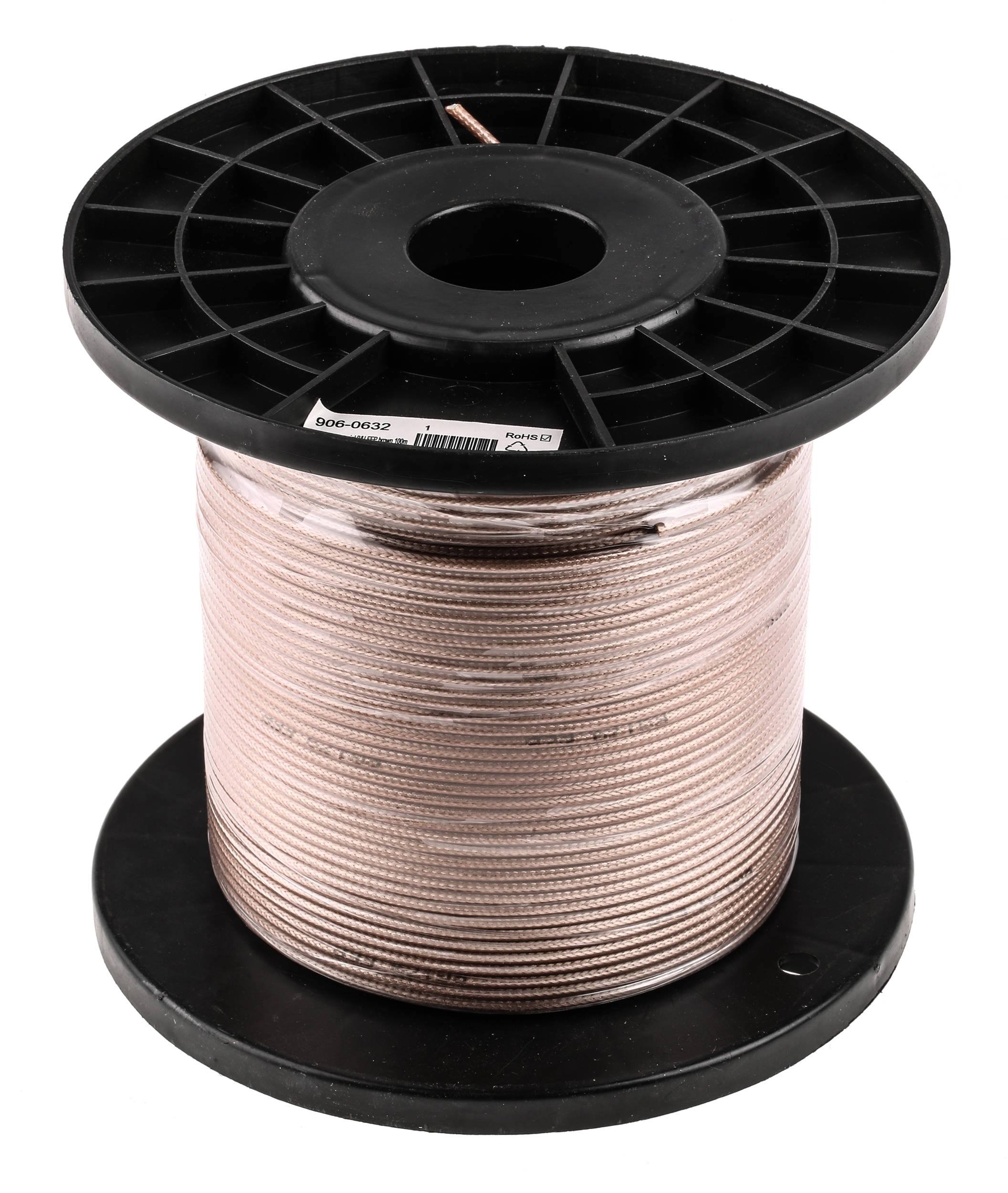

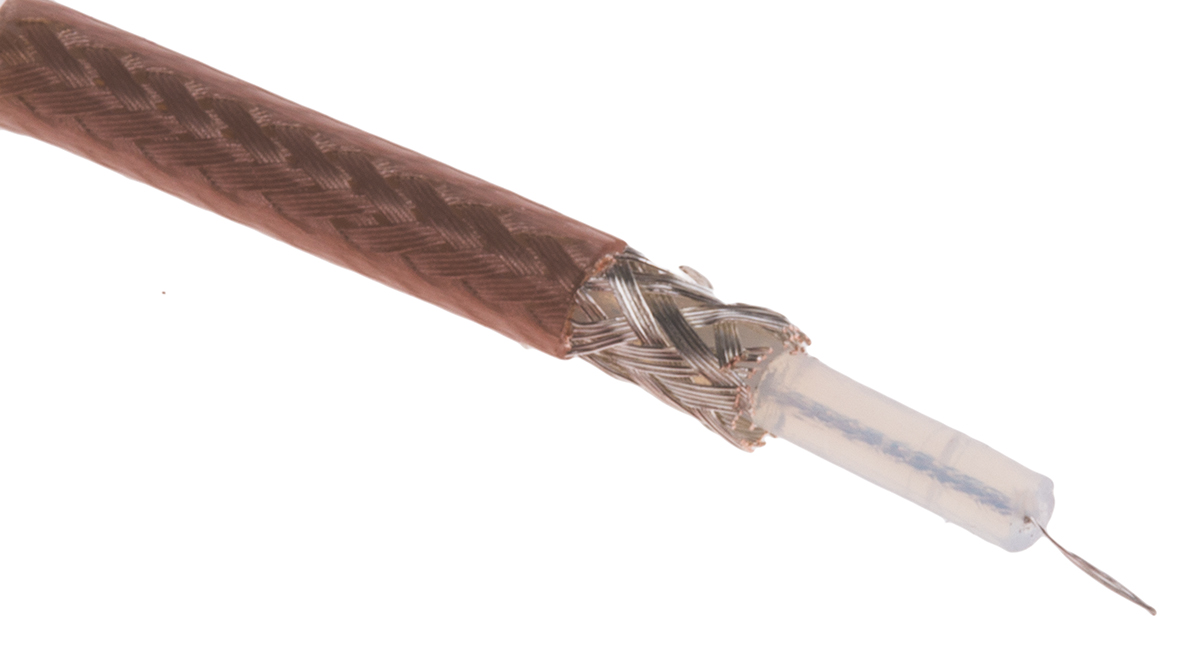

The RS PRO 906‑0632 is a high-grade, 100 m reel of RG179B/U coaxial cable featuring a distinctive brown FEP (fluorinated ethylene propylene) sheath. It has a characteristic impedance of 75 Ω, an outer diameter of 2.5 mm, a silver-plated copper-clad steel conductor, a silver-plated copper braid shield, and stranded 7/0.1 mm core wires. This cable boasts low capacitance (≈ 63.65 pF/m) and low attenuation (≈ 91 dB @ 1 GHz). It can operate across an elevated temperature range (−70 °C to +200 °C), making it a flexible and durable choice for demanding RF and signal transmission setups.
It combines excellent signal integrity with robust construction, thanks to its silver‑plated braid shielding and copper‑clad steel conductor. The FEP sheath enhances resistance to temperature extremes, chemical exposure, and UV light, while its flexibility allows easy routing in tight or complex installations. Designed for 75 Ω systems, it delivers minimal signal loss and high fidelity in RF, audio/video, and data communication applications.
Ideal for any setup requiring a 75 Ω coaxial path with rugged durability. Common applications include:
