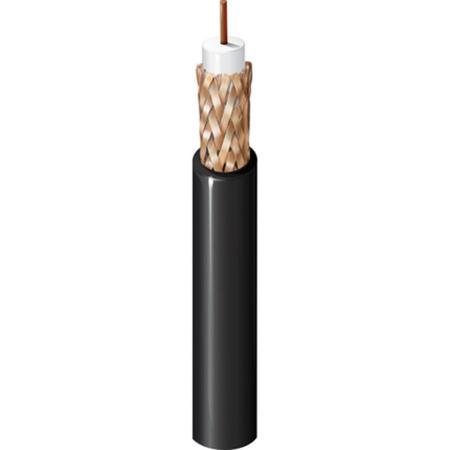

MRG5900 Series, 500m, RG59 Coaxial, Unterminated75 Ω

Terminated/Unterminated:

Unterminated

Coaxial Type:

RG59

Outer Diameter:

6.15mm

CPR Certification:

Eca

Characteristic Impedance:

75 Ω

Attenuation:

2.9 dB/100m @ 5 MHz

Length:

500m

Sheath Colour:

Black

Conductor Strand Type:

Solid

Core Strands:

1/0.58

Capacitance:

67.3pF/m

Conductor Material:

Bare Copper Clad Steel

Series:

MRG5900

Number of Strands:

1

Operating Temperature Range:

-15 → +70 °C

Size of Strands:

22 AWG

Minimum Operating Temperature:

-15°C

Velocity ratio:

66%

Insulation Material:

PE

Shielding:

Tinned Copper Braid

Sheath Material:

Polyvinyl Chloride PVC

Maximum Operating Temperature:

+70°C
