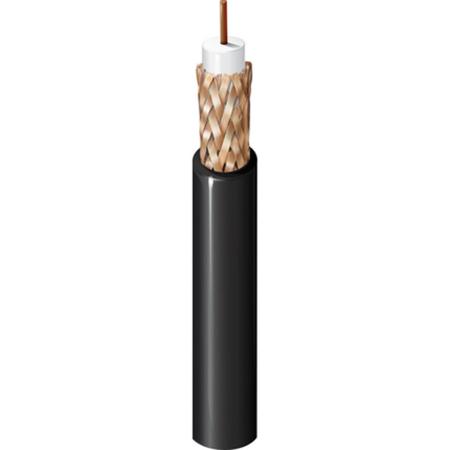

MRG5902 Series, 100m, RG59 Coaxial, Unterminated75 Ω

Terminated/Unterminated:

Unterminated

Coaxial Type:

RG59

Outer Diameter:

6.15mm

CPR Certification:

Eca

Characteristic Impedance:

75 Ω

Attenuation:

2.9 dB/100m @ 5 MHz

Length:

100m

Sheath Colour:

Black

Conductor Strand Type:

Solid

Core Strands:

1/0.58

Standards Met:

Euroclass Eca

Shielding:

Bare Copper Braid

Series:

MRG5902

Maximum Operating Temperature:

+70°C

Sheath Material:

Low Smoke Zero Halogen (LSZH)

Insulation Material:

PE

Number of Strands:

1

Operating Temperature Range:

-30 → +70 °C

Capacitance:

67pF/m

Velocity ratio:

66%

Minimum Operating Temperature:

-30°C

Conductor Material:

Bare Copper Clad Steel

Size of Strands:

23 AWG
