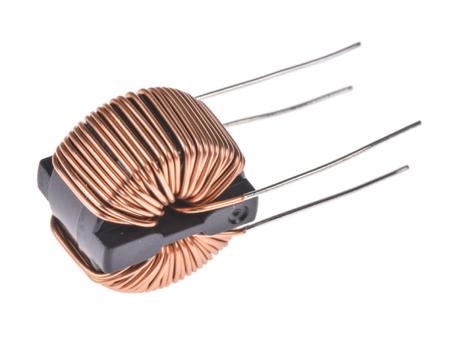

Kemet SCF Series Compact High Inductance Common Mode Chokes
Kemet SCF AC line filters are suitable for use as common mode chokes and in consumer electronics. A wide range of different sizes and specifications are available.
Compact design
High inductances of up to 50 mH
Rated currents up to 15 A
DC resistances as low as 5 Ω
High inductances of up to 50 mH
Rated currents up to 15 A
DC resistances as low as 5 Ω
13 mH 2 A Common Mode Choke 115mΩ
Manufacturer:
KEMET
Manufacturer Part No:
SCF-02-1300
Enrgtech Part No:
ET11770606
Warranty:
Manufacturer
£ 2.34
Checking for live stock
Inductance:
13 mH
Series:
SC
Test Frequency:
10 KHz
DC Resistance:
115mΩ
Maximum Current:
2 A
Dimensions:
15 x 12 x 15mm
Operating Temperature Range:
-25°C → +120°C
Mounting Type:
Through Hole
Termination Style:
Solder Pad
Height:
15mm
Depth:
12mm
Minimum Operating Temperature:
-25°C
