Kemet SC-D Series High Frequency Type Common Mode Chokes
Kemet SC coils, SC-D AC line filters, are suitable for use as common mode chokes and in consumer electronics. A wide range of different sizes and specifications are available.
Rated currents up to 20 A
DC resistances as low as 8 mΩ
Inductances up to 100 μH
DC resistances as low as 8 mΩ
Inductances up to 100 μH

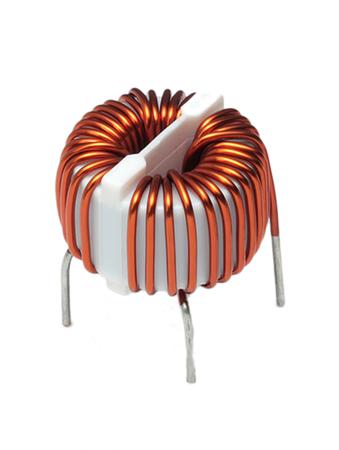

50 μH 10 A Common Mode Choke 16mΩ
Manufacturer:
KEMET
Manufacturer Part No:
SC-10-D050
Enrgtech Part No:
ET11780681
Warranty:
Manufacturer
£ 4.52
Checking for live stock
Inductance:
50 μH
Series:
SC-D
Test Frequency:
100 KHz
DC Resistance:
16mΩ
Maximum Current:
10 A
Dimensions:
34 x 23 34mm
Operating Temperature Range:
-25°C → +105°C
Mounting Type:
Through Hole
Termination Style:
Solder Pad
Minimum Operating Temperature:
-25°C
Maximum Operating Temperature:
+105°C
Length:
34mm
