Kemet SU9VF/9HF Series Common Mode Chokes
Kemet SU Coils, SU9VF/9HF AC line filters, are suitable for use as common mode chokes and in consumer electronics. A wide range of different sizes and specifications are available.
Rated current up to 0.7A
DC resistances as low as 0.44 Ω
Inductances up to 10 mH
DC resistances as low as 0.44 Ω
Inductances up to 10 mH

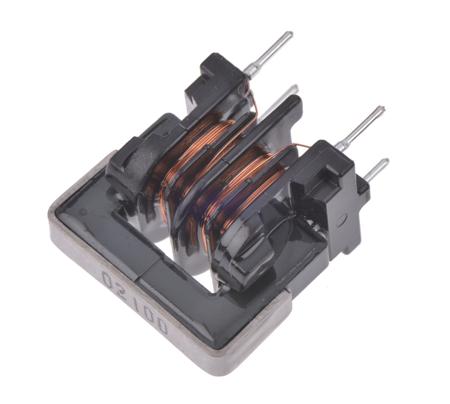

10 mH 200 mA Common Mode Choke 4Ω
Manufacturer:
KEMET
Manufacturer Part No:
SU9VF-02100
Enrgtech Part No:
ET11940876
Warranty:
Manufacturer
£ 0.82
Checking for live stock
Inductance:
10 mH
Series:
SU-9VF
Test Frequency:
1 KHz
DC Resistance:
4Ω
Maximum Current:
200 mA
Dimensions:
17 x 11 x 17mm
Operating Temperature Range:
-25°C → +80°C
Mounting Type:
Through Hole
Termination Style:
Solder Pad
Length:
17mm
Depth:
11mm
Height:
17mm
