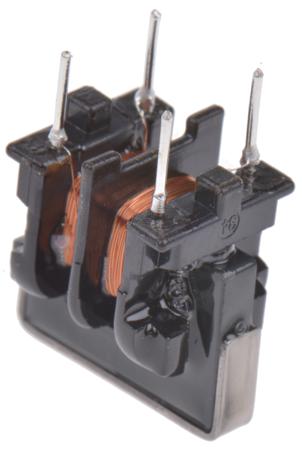

Kemet SU9V/9H Series Common Mode Chokes
Kemet SU Coils, SU9V/9H AC line filters, are suitable for use as common mode chokes and in consumer electronics. A wide range of different sizes and specifications are available.
Rated currents up to 1 A
DC resistances as low as 0.3 Ω
Inductances up to 18 mH
DC resistances as low as 0.3 Ω
Inductances up to 18 mH
10 mH 100 mA Common Mode Choke 8Ω
Manufacturer:
KEMET
Manufacturer Part No:
SU9V-01100
Enrgtech Part No:
ET12036213
Warranty:
Manufacturer
£ 0.84
Checking for live stock
Inductance:
10 mH
Series:
SU-9V
Test Frequency:
1 KHz
DC Resistance:
8Ω
Maximum Current:
100 mA
Dimensions:
17 x 11 x 17mm
Operating Temperature Range:
-25°C → +80°C
Mounting Type:
Through Hole
Termination Style:
Solder Pad
Length:
17mm
Maximum Operating Temperature:
+80°C
Minimum Operating Temperature:
-25°C
