PREVOST PIPING SYSTEM
100 % aluminium
-The PREVOST PIPING SYSTEM compressed air network range is compact, lightweight and corrosive resistant with all aluminium fittings.
The system's installation is quick and easy, then can be pressurized immediately.
-Pipes are firmly held in the fitting using the PPS Grip Concept.
This new concept is based on a stainless steel ring with teeth that penetrate the aluminium. The new contoured and lubricated seal design guarantees a leak free performance.
-The PREVOST PIPING SYSTEM compressed air network range is compact, lightweight and corrosive resistant with all aluminium fittings.
The system's installation is quick and easy, then can be pressurized immediately.
-Pipes are firmly held in the fitting using the PPS Grip Concept.
This new concept is based on a stainless steel ring with teeth that penetrate the aluminium. The new contoured and lubricated seal design guarantees a leak free performance.

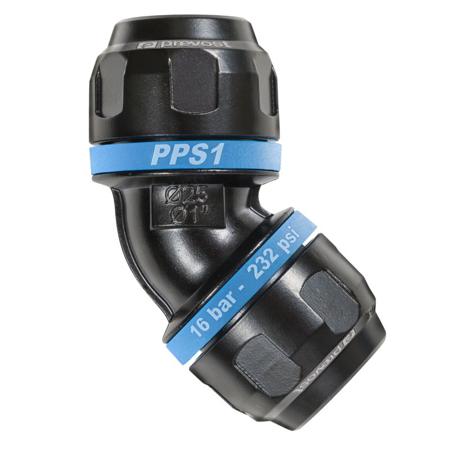

16bar Aluminium Elbow Connector, 25mm outside diameter
Manufacturer:
PREVOST
Manufacturer Part No:
PPS1 4C25
Enrgtech Part No:
ET21620385
Warranty:
Manufacturer
£ 14.13
Checking for live stock
Pipe Outside Diameter 2:
25mm
Material:
Aluminium
Connector Type:
45° EQUAL ELBOW
Pipe Outside Diameter:
25mm
Maximum Operating Pressure:
16bar
Minimum Operating Temperature:
-20°C
Maximum Operating Temperature:
+80°C
3D Model:
https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=2194480&DisplayLogo=False
